Super Micro Computer, Inc. Supermicro 6025B-TR+ (Intel Xeon processor E5345) SPECpower_ssj2008 = 419 overall ssj_ops/watt
Test Sponsor: Intel Corp. SPEC License #: 13 Test Method: Single Node
Tested By: Intel Corp. Test Location: Hillsboro, Oregon, USA Test Date: Jan 10, 2008
Hardware Availability: Nov-2007 Software Availability: Nov-2007 Publication: Feb 13, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.3% 235,525 334 706
90% 90.4% 214,380 327 655
80% 79.9% 189,461 319 594
70% 70.1% 166,385 309 538
60% 60.1% 142,484 298 478
50% 49.9% 118,411 286 414
40% 39.9% 94,604 273 346
30% 29.8% 70,780 261 271
20% 20.2% 47,849 249 192
10% 10.0% 23,750 235 101
Active Idle 0 220 0
∑ssj_ops / ∑power = 419

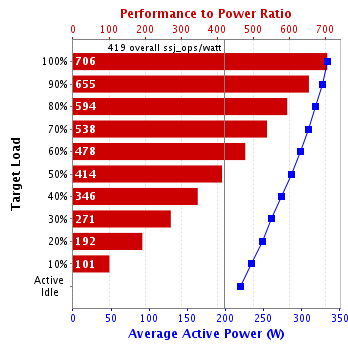

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Supermicro 6025B-TR+ (Intel Xeon processor E5345)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Super Micro Computer, Inc.
Model: Supermicro 6025B-TR+ (Intel Xeon processor E5345)
Form Factor: --
CPU Name: Intel Xeon processor E5345
CPU Characteristics: Quad-Core 2.33GHz, 8 MB L2, 1333 MHz system bus
CPU Frequency (MHz): 2333
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip / chip
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4x 2GB
Memory Details: Hynix HYMP525F72BP4D2-Y5 AB-T 2GB 2Rx4 PC2-5300F-555-11 FBDIMM; slots 1A, 2A, 3A, 4A populated
Power Supply Quantity and Rating (W): 1 x 700W
Power Supply Details: ABLECOM PWS-702A-1R Redundant Module Switching Power Supply
Disk Drive: 1 x Western Digital WD360ADFD 36GB SATA
Disk Controller: Intel 631xESB/6321ESB Serial ATA Storage Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Embedded Intel PRO/1000 EB Network Connection with I/O Acceleration
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Server Balanced Processor Power and Performance
Operating System (OS): Microsoft Windows Server 2003 Enterprise x64 Edition
OS Version: SP1
Filesystem: NTFS
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) 1.6.0_02 (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3500m -Xmx3500m -XXaggressive -Xgc:genpar -Xns2900m -XXlazyunlocking -XXcallprofiling -XXtlasize:min=4k,preferred=512k -XXthroughputcompaction -XXgcthreads:4
JVM Affinity: JVM 1 to 0F, JVM 2 to F0
JVM Instances: 4
JVM Initial Heap (MB): 3500
JVM Maximum Heap (MB): 3500
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1
Director Location: SUT
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Dell Computer Corporation
Model: Dell LATITUDE D600
CPU Description: Intel Pentium M processor 1.6 GHz
Memory amount (GB): 1.0
Software
Operating System (OS): Microsoft Windows XP
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build R27.4.0-90-89592-1.5.0_12-20070928-1715-windows-ia32, compiled mode)
CCS Version: 1.1
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91G533352
Connectivity: RS-232
Input Connection: --
Calibration Institute: NIST
Accredited by: Intel Oregon Calibration Lab
Calibration Label: CCN 20-24428
Date of Calibration: 13-Nov-2007
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.0-d02d2dbe
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Digi Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 334 23.4
90% 327 23.4
80% 319 23.4
70% 309 23.4
60% 298 23.4
50% 286 23.4
40% 273 23.4
30% 261 23.4
20% 249 23.4
10% 235 23.4
Active Idle 220 23.4
Line Standard Minimum Temperature (°C) Elevation (m)
120V / 60 Hz / 1 phase / 2 wires 23.4 62
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     234,446
Calibration 2     237,373
Calibration 3     237,104
ssj_ops@calibrated=237,238
100% 99.3% 237,238 235,525
90% 90.4% 213,515 214,380
80% 79.9% 189,791 189,461
70% 70.1% 166,067 166,385
60% 60.1% 142,343 142,484
50% 49.9% 118,619 118,411
40% 39.9% 94,895 94,604
30% 29.8% 71,172 70,780
20% 20.2% 47,448 47,849
10% 10.0% 23,724 23,750
Active Idle   0 0
Graph of results
