SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007 Standard Performance Evaluation Corporation
| Hewlett-Packard Company Proliant DL160 G5 (3.0 GHz, Intel Xeon processor E5450) | SPECpower_ssj2008 = 698 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Dec 5, 2007 |
| Hardware Availability: | Jan-2008 | Software Availability: | Dec-2007 | Publication: | Dec 11, 2007 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

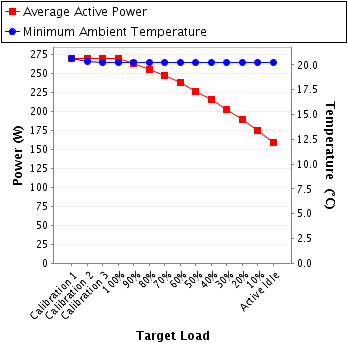

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 270 | 20.7 |
| Calibration 2 | 270 | 20.4 |
| Calibration 3 | 270 | 20.2 |
| 100% | 269 | 20.2 |
| 90% | 264 | 20.2 |
| 80% | 256 | 20.2 |
| 70% | 247 | 20.2 |
| 60% | 238 | 20.2 |
| 50% | 227 | 20.2 |
| 40% | 215 | 20.2 |
| 30% | 203 | 20.2 |
| 20% | 189 | 20.2 |
| 10% | 174 | 20.2 |
| Active Idle | 160 | 20.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91F519016 |
| Connectivity: | GPIB |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | HP Metrology |
| Calibration Label: | 816347 |
| Date of Calibration: | 14-Nov-07 |
| PTDaemon Host System: | Controller System |
| PTDaemon Host OS: | Microsoft Windows XP Professional |
| PTDaemon Version: | 0.21-2f7044de |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | Controller System |
| PTDaemon Host OS: | Microsoft Windows XP Professional |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | -- | 1.40 | -- | 0.937 | 270 | -- |
| Calibration 2 | 206 | -- | 1.40 | -- | 0.937 | 270 | -- |
| Calibration 3 | 206 | -- | 1.40 | -- | 0.937 | 270 | -- |
| 100% | 206 | -- | 1.40 | -- | 0.937 | 269 | -- |
| 90% | 206 | -- | 1.37 | -- | 0.935 | 264 | -- |
| 80% | 206 | -- | 1.33 | -- | 0.932 | 256 | -- |
| 70% | 206 | -- | 1.30 | -- | 0.928 | 247 | -- |
| 60% | 206 | -- | 1.25 | -- | 0.923 | 238 | -- |
| 50% | 206 | -- | 1.20 | -- | 0.917 | 227 | -- |
| 40% | 206 | -- | 1.15 | -- | 0.911 | 215 | -- |
| 30% | 206 | -- | 1.09 | -- | 0.905 | 203 | -- |
| 20% | 206 | -- | 1.02 | -- | 0.899 | 189 | -- |
| 10% | 206 | -- | 0.946 | -- | 0.895 | 174 | -- |
| Active Idle | 206 | -- | 0.864 | -- | 0.896 | 160 | -- |
