SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007 Standard Performance Evaluation Corporation
| SuperMicro, Inc. Supermicro 6025B-TR+ (Intel Xeon processor 5160) | ssj_ops@100% = 163,768 ssj_ops@100% per JVM = 81,884 |
||||
| Test Sponsor: | Intel Corp. | SPEC License #: | 13 | Test Method: | Single Node |
| Tested By: | Intel Corp. | Test Location: | Hillsboro, Oregon, USA | Test Date: | Nov 28, 2007 |
| Hardware Availability: | Nov-2007 | Software Availability: | Nov-2007 | Publication: | Dec 11, 2007 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 162,692 | ||
| Calibration 2 | 164,393 | ||
| Calibration 3 | 164,953 | ||
| ssj_ops@calibrated=164,673 | |||
| 100% | 99.5% | 164,673 | 163,768 |
| 90% | 90.6% | 148,206 | 149,253 |
| 80% | 80.0% | 131,739 | 131,729 |
| 70% | 69.6% | 115,271 | 114,615 |
| 60% | 59.9% | 98,804 | 98,604 |
| 50% | 49.9% | 82,337 | 82,202 |
| 40% | 39.9% | 65,869 | 65,670 |
| 30% | 29.7% | 49,402 | 48,980 |
| 20% | 20.5% | 32,935 | 33,687 |
| 10% | 10.1% | 16,467 | 16,600 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Supermicro 6025B-TR+ (Intel Xeon processor 5160) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | SuperMicro, Inc. |
| Model: | Supermicro 6025B-TR+ (Intel Xeon processor 5160) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon processor 5160 |
| CPU Characteristics: | Dual-Core 3.0GHz, 4 MB L2 shared, 1333 MHz system bus |
| CPU Frequency (MHz): | 3000 |
| CPU(s) Enabled: | 4 cores, 2 chips, 2 cores/chip |
| Hardware Threads: | 4 (1 / core) |
| CPU(s) Orderable: | 1,2 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4x2GB |
| Memory Details: | Hynix HYMP525F72BP4D2-Y5 AB-T 2GB 2Rx4 PC2-5300F-555-11 FBDIMM; slots 1A, 2A, 3A, 4A populated |
| Power Supply Quantity and Rating (W): | 1 x 700W |
| Power Supply Details: | ABLECOM PWS-702A-1R Redundant Module Switching Power Supply |
| Disk Drive: | 1 x Western Digital WD360ADFD 36GB SATA |
| Disk Controller: | Intel 631xESB/6321ESB Serial ATA Storage Controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Embedded Intel PRO/1000 EB Network Connection with I/O Acceleration |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Server Balanced Processor Power and Performance |
| Operating System (OS): | Microsoft Windows Server 2003 Enterprise x64 Edition |
| OS Version: | SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) 1.6.0_02 (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3500m -Xmx3500m -Xns2900m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=12k,preferred=1024k |
| JVM Affinity: | JVM 1 to 03, JVM 2 to 0C |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 3500 |
| JVM Maximum Heap (MB): | 3500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 0.23 |
| Director Location: | SUT |
| Other Software: | None |

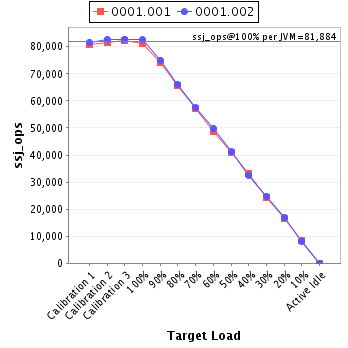

| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 81,215 |
| 0001.002 | 82,553 |
| ssj_ops@100% | 163,768 |
| ssj_ops@100% per JVM | 81,884 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 80,997 | ||
| Calibration 2 | 81,733 | ||
| Calibration 3 | 82,141 | ||
| ssj_ops@calibrated=81,937 | |||
| 100% | 99.1% | 81,937 | 81,215 |
| 90% | 90.6% | 73,743 | 74,221 |
| 80% | 80.2% | 65,550 | 65,707 |
| 70% | 69.7% | 57,356 | 57,150 |
| 60% | 59.4% | 49,162 | 48,703 |
| 50% | 50.1% | 40,968 | 41,023 |
| 40% | 40.4% | 32,775 | 33,136 |
| 30% | 29.5% | 24,581 | 24,180 |
| 20% | 20.4% | 16,387 | 16,725 |
| 10% | 10.3% | 8,194 | 8,467 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 81,695 | ||
| Calibration 2 | 82,660 | ||
| Calibration 3 | 82,812 | ||
| ssj_ops@calibrated=82,736 | |||
| 100% | 99.8% | 82,736 | 82,553 |
| 90% | 90.7% | 74,463 | 75,032 |
| 80% | 79.8% | 66,189 | 66,022 |
| 70% | 69.5% | 57,915 | 57,465 |
| 60% | 60.3% | 49,642 | 49,901 |
| 50% | 49.8% | 41,368 | 41,178 |
| 40% | 39.3% | 33,095 | 32,533 |
| 30% | 30.0% | 24,821 | 24,800 |
| 20% | 20.5% | 16,547 | 16,962 |
| 10% | 9.8% | 8,274 | 8,133 |
| Active Idle | 0 | 0 | |
