SPECpower_ssj2008
Copyright © 2007 Standard Performance Evaluation Corporation
| Intel Corp. Intel Platform SE7520AF2 Server Board (3.6 GHz/1M L2 Intel Xeon processor) | SPECpower_ssj2008 = 87.4 overall ssj_ops/watt | ||||
| Test Sponsor: | Intel Corp. | SPEC License #: | 13 | Test Method: | Single Node |
| Tested By: | Intel Corp. | Test Location: | Hillsboro, Oregon, USA | Test Date: | Nov 28, 2007 |
| Hardware Availability: | Nov-2004 | Software Availability: | Nov-2007 | Publication: | Dec 11, 2007 |
| System Source: | Parts Built | System Designation: | Server | Power Provisioning: | Line-powered |

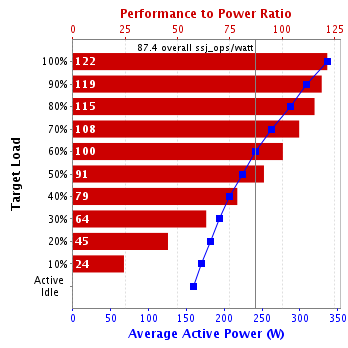

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.2% | 40,852 | 336 | 122 |
| 90% | 89.1% | 36,677 | 308 | 119 |
| 80% | 80.7% | 33,235 | 288 | 115 |
| 70% | 69.0% | 28,398 | 263 | 108 |
| 60% | 58.7% | 24,157 | 241 | 100 |
| 50% | 49.8% | 20,512 | 225 | 91.3 |
| 40% | 39.5% | 16,281 | 207 | 78.5 |
| 30% | 30.0% | 12,337 | 194 | 63.7 |
| 20% | 20.0% | 8,237 | 181 | 45.4 |
| 10% | 10.1% | 4,142 | 170 | 24.4 |
| Active Idle | 0 | 159 | 0 | |
| ∑ssj_ops / ∑power = | 87.4 | |||
| Set Identifier: | sut |
| Set Description: | Intel Platform SE7520AF2 Server Board (3.6 GHz/1M L2 Intel Xeon processor) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Intel Corp. |
| Model: | Intel Platform SE7520AF2 Server Board (3.6 GHz/1M L2 Intel Xeon processor) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon processor 3.6 GHz |
| CPU Characteristics: | 3.6 GHz, 1 MB L2, 800 MHz system bus |
| CPU Frequency (MHz): | 3600 |
| CPU(s) Enabled: | 2 cores, 2 chips, 1 core/chip |
| Hardware Threads: | 4 (2 / core) |
| CPU(s) Orderable: | 1,2 |
| Primary Cache: | 12 K micro-ops + 16 KB D on chip per chip |
| Secondary Cache: | 1 MB I+D on chip per chip |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 4 |
| # and size of DIMM: | 4x1GB |
| Memory Details: | Kingston KVR400D2R3/1G DIMM; slots 1A, 1B, 1C, 1D populated |
| Power Supply Quantity and Rating (W): | 1 x 600 |
| Power Supply Details: | DPS-600MB A REV:S4 |
| Disk Drive: | 1 x Seagate ULTRA320 ST336753LW 36 GB 15K RPM SCSI |
| Disk Controller: | 2 x LSI Logic PCI-X Ultra320 SCSI Host Adapter On-Board |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Intel PRO/1000MT Dual Port Network Connection On-Board |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | 1 x IDE Floppy Drive |
| Software | |
|---|---|
| Power Management: | Server Balanced Processor Power and Performance |
| Operating System (OS): | Microsoft Windows Server 2003 Enterprise x64 Edition |
| OS Version: | SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) 1.6.0_02 (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3000m -Xmx3000m -Xns2400m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXtlasize:min=12k,preferred=1024k |
| JVM Affinity: | None |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 3000 |
| JVM Maximum Heap (MB): | 3000 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 0.23 |
| Director Location: | SUT |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Computer Corporation |
| Model: | Dell LATITUDE D600 |
| CPU Description: | Intel Pentium M processor, 1.6 GHz |
| Memory amount (GB): | 1.0 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows XP |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build R27.4.0-90-89592-1.5.0_12-20070928-1715-windows-ia32, compiled mode) |
| CCS Version: | 0.21 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91G533352 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Intel Oregon Cal Lab |
| Calibration Label: | CCN 20-24428 |
| Date of Calibration: | 13-Nov-2007 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 0.21-2f7044de |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 336 | 23.7 |
| 90% | 308 | 23.7 |
| 80% | 288 | 23.7 |
| 70% | 263 | 23.7 |
| 60% | 241 | 23.7 |
| 50% | 225 | 23.7 |
| 40% | 207 | 23.7 |
| 30% | 194 | 23.7 |
| 20% | 181 | 23.7 |
| 10% | 170 | 23.7 |
| Active Idle | 159 | 23.6 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 120V / 60 Hz / 1 phase / 2 wires | 23.6 | 62 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 40,212 | ||
| Calibration 2 | 41,082 | ||
| Calibration 3 | 41,250 | ||
| ssj_ops@calibrated=41,166 | |||
| 100% | 99.2% | 41,166 | 40,852 |
| 90% | 89.1% | 37,050 | 36,677 |
| 80% | 80.7% | 32,933 | 33,235 |
| 70% | 69.0% | 28,816 | 28,398 |
| 60% | 58.7% | 24,700 | 24,157 |
| 50% | 49.8% | 20,583 | 20,512 |
| 40% | 39.5% | 16,466 | 16,281 |
| 30% | 30.0% | 12,350 | 12,337 |
| 20% | 20.0% | 8,233 | 8,237 |
| 10% | 10.1% | 4,117 | 4,142 |
| Active Idle | 0 | 0 | |
