SPECweb96 Result

IBM:Netfinity 5500 M20
IBM:IBM HTTP Server using Apache 1.3.3
SPECweb96 = 5958


Performance

Throughput
(ops/sec)
Response
(msec)
6016.4
12016.9
18027.6
24028.2
30038.8
36029.5
420210.2
480110.7
540511.0
595815.2

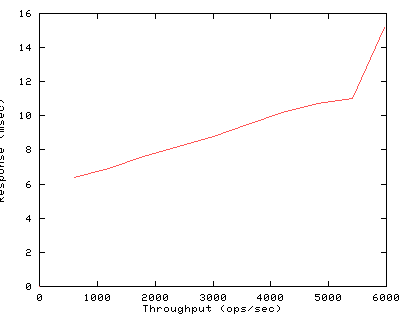

Performance Graph


Configuration

Availability Dates
Hardware Mar-99
HTTP Software Jun-99
Operating SystemAug-97

Hardware
Vendor IBM
Model Netfinity 5500 M20
Processor 500MHz Pentium III Xeon
# of Processors 1
Primary Cache 32KB
Secondary Cache 1MB
Other Cache None
Memory 2GB
Disk Subsystem 4 9.1GB 10K RPM drives
Disk ControllersWide Ultra SCSI
Other Hardware 2 Alteon ACEswitch 180

Software
Operating SystemWindows NT Server 4.0
File System TypeNTFS
Other Software None

HTTP Software
Vendor IBM
HTTP Software IBM HTTP Server using Apache 1.3.3
# of "threads" 1
Server Cache FRCA (Integrated)
Log Mode Combined

Test Sponsor
Test Date Mar-99
Tested By IBM
SPEC License11

Network
# of Controllers 2
Network ControllersAlteon ACEnic PCI Gigabit
# of Nets 2
Type of Nets Jumbo Frame Gigabit
Network Speed 1000 Mb
MSL (sec) 30 (Non RFC1122)
Time-Wait (sec) 60 (Non RFC1122)

Load Generators
# of Load Generators8
# of Processes Each 12
Model Intellistation Z Pro
Processor 450Mhz Pentium II Xeon
# of Processors 2
Memory 256MB
Network Controller Alteon ACEnic PCI Gigabit
Operating System Windows NT Workstation 4.0 + SP4 + Post SP4 TCP/IP hotfix.
Compiler None

Benchmark Configuration
Maximum Requested Load 6000
Maximum Fileset Size (MB)1694


Notes

OS Notes

Network Notes

Other Notes


Test Run Details

Detailed Statistics
Load Throughput Class Target Mix Actual Mix Error Percent Mean Response Std Dev Response
600601035.0%35.0%0.00%3.7014.81
150.0%50.0%0.00%3.8212.57
214.0%14.0%0.00%7.187.03
31.0%1.0%0.00%222.81437.52
12001201035.0%35.0%0.00%4.1113.71
150.0%50.0%0.00%4.199.41
214.0%14.0%0.00%7.7315.10
31.0%1.0%0.00%225.89428.92
18001802035.0%35.0%0.00%4.5010.95
150.0%50.0%0.00%4.598.39
214.0%14.0%0.00%8.2510.97
31.0%1.0%0.00%257.66460.77
24002402035.0%35.0%0.00%4.958.61
150.0%50.0%0.00%5.0813.88
214.0%14.0%0.00%8.9616.31
31.0%1.0%0.00%266.49468.37
30003003035.0%35.0%0.00%5.3810.73
150.0%50.0%0.00%5.5114.67
214.0%14.0%0.00%9.5615.34
31.0%1.0%0.00%278.62478.03
36003602035.0%35.0%0.00%5.8810.61
150.0%50.0%0.00%6.0014.84
214.0%14.0%0.00%10.3017.13
31.0%1.0%0.00%302.98503.02
42004202035.0%35.0%0.00%6.449.93
150.0%50.0%0.00%6.517.50
214.0%14.0%0.00%11.2116.82
31.0%1.0%0.00%308.92504.02
48004801035.0%35.0%0.00%6.8116.93
150.0%50.0%0.00%6.8613.73
214.0%14.0%0.00%11.9516.74
31.0%1.0%0.00%322.69514.76
54005405035.0%35.0%0.00%6.6710.87
150.0%50.0%0.00%6.7611.09
214.0%14.0%0.00%12.4017.95
31.0%1.0%0.00%354.59539.19
600059580.0%0.0%0.00%
0.0%0.0%0.00%
0.0%0.0%0.00%
0.0%0.0%0.00%


Wed Apr 21 11:55:08 1999

First published at SPEC.org on 20-Apr-1999
