SPECweb96 Result

IBM Austin,Tx:RS/6000 7025-H50
Zeus Technology Ltd:Zeus 1.3.0
SPECweb96 = 2755


Performance

Throughput
(ops/sec)
Response
(msec)
2855.8
5706.0
8556.3
11406.8
14247.6
17108.6
199510.0
228012.0
256416.2
275525.8

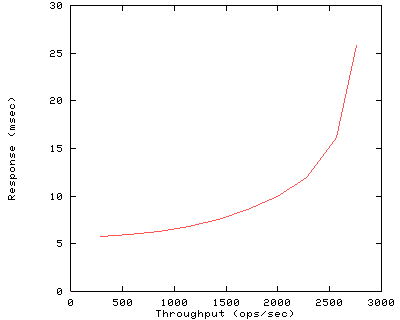

Performance Graph


Configuration

Availability Dates
Hardware Feb-98
HTTP Software Oct-97
Operating SystemApr-97 + APAR IX71421(Feb-98)

Hardware
Vendor IBM Austin,Tx
Model RS/6000 7025-H50
Processor 332MHz PowerPC 604e-X5
# of Processors 4
Primary Cache 32KBI+32KBD on chip
Secondary Cache 256KB L2 cache per processor
Other Cache None
Memory 2048MB
Disk Subsystem 3 16 bit SCSI Disk Drives (9100 MB)
Disk ControllersWide SCSI I/O Controller
Other Hardware ForeRunner LE155 ATM Workgroup Switch

Software
Operating SystemAIX 4.2.1
File System TypeJFS
Other Software None

HTTP Software
Vendor Zeus Technology Ltd
HTTP Software Zeus 1.3.0
# of "threads" 4
Server Cache -b 1048576 -t 15000 -q -n -m 1
Log Mode Common Log Format

Test Sponsor
Test Date Jan-98
Tested By IBM Austin
SPEC License11

Network
# of Controllers 3
Network ControllersIBM PCI 155Mbps ATM adapter
# of Nets 3
Type of Nets ATM
Network Speed 155 Mb/s
MSL (sec) 30 (Non RFC1122)
Time-Wait (sec) 60 (Non RFC1122)

Load Generators
# of Load Generators6
# of Processes Each 12
Model 6 RS/6000 7043-240
Processor 233MHz PowerPC 604e
# of Processors 2
Memory 256MB
Network Controller IBM PCI 155Mbps ATM Adapter
Operating System AIX 4.2.1
Compiler IBM Cset++ Version 3.1.3

Benchmark Configuration
Maximum Requested Load 2850
Maximum Fileset Size (MB)1166


Notes

OS Notes

Network Notes

Other Notes


Test Run Details

Detailed Statistics
Load Throughput Class Target Mix Actual Mix Error Percent Mean Response Std Dev Response
285285035.0%35.0%0.00%4.296.44
150.0%50.0%0.00%5.006.91
214.0%14.0%0.00%9.559.96
31.0%1.0%0.00%41.4440.48
570570035.0%35.0%0.00%4.486.49
150.0%50.0%0.00%5.216.99
214.0%14.0%0.00%9.9610.33
31.0%1.0%0.00%44.6543.67
855855035.0%35.0%0.00%4.566.59
150.0%50.0%0.00%5.397.13
214.0%14.0%0.00%10.5410.89
31.0%1.0%0.00%48.5148.00
11401140035.0%35.0%0.00%5.077.05
150.0%50.0%0.00%5.877.53
214.0%14.0%0.00%11.4211.81
31.0%1.0%0.00%53.7453.42
14251424035.0%35.0%0.00%5.717.99
150.0%50.0%0.00%6.528.43
214.0%14.0%0.00%12.5513.30
31.0%1.0%0.00%60.1360.56
17101710035.0%35.0%0.00%6.549.23
150.0%50.0%0.00%7.3810.01
214.0%14.0%0.00%14.0015.37
31.0%1.0%0.00%67.7268.67
19951995035.0%35.0%0.00%7.7010.94
150.0%50.0%0.00%8.5311.36
214.0%14.0%0.00%15.9718.10
31.0%1.0%0.00%77.6979.21
22802280035.0%35.0%0.00%9.4913.34
150.0%50.0%0.00%10.3213.45
214.0%14.0%0.00%18.8120.80
31.0%1.0%0.00%90.6692.30
25652564035.0%35.0%0.00%13.2117.12
150.0%50.0%0.00%14.0617.50
214.0%14.0%0.00%24.1726.63
31.0%1.0%0.00%116.24119.18
28502755035.0%35.0%0.00%21.8427.91
150.0%50.0%0.00%22.5528.41
214.0%14.0%0.00%35.0839.58
31.0%1.0%0.00%200.99202.16


Mon Jan 26 14:57:33 PST 1998

First published at SPEC.org on 10-Feb-1998
