SPECweb96 Result

Hewlett-Packard:	HP NetServer 6/200 LXe Pro
Microsoft:	Internet Information Server 3.0

SPECweb96 = 1422

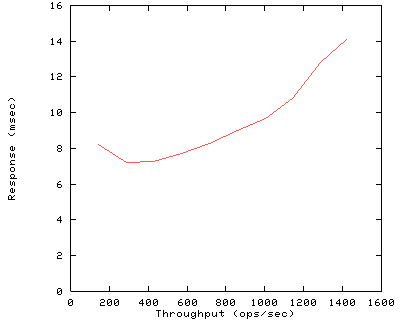

Performance

Throughput (ops/sec)	Response (msec)
143	8.2
286	7.2
429	7.3
572	7.7
715	8.3
858	9.0
1001	9.7
1144	10.8
1287	12.8
1422	14.1

Configuration

Availability Dates
Hardware	Sep-96
HTTP Software	Aug-96
Operating System	Oct-97

Hardware

Vendor Hewlett-Packard

Model HP NetServer 6/200 LXe Pro

Processor Pentium Pro 200

# of Processors 2

Primary Cache 8KBI+8KBD

Secondary Cache 512KB(I+D)

Other Cache

Memory 2048MB

Disk Subsystem 3 HP D3582A Fast/Wide SCSI-2 Drives

Disk Controllers 1 Adaptec F/W/U

Other Hardware none

Software

Operating System Windows NT Server 4.0 w/SP3

File System Type NTFS

Other Software tcpip.sys patch from NT hot fix after SP 3

HTTP Software

Vendor Microsoft

HTTP Software Internet Information Server 3.0

# of "threads" Default

Server Cache Default

Log Mode Standard

Test Sponsor
Test Date	Jul-97
Tested By	HP NSD
SPEC License	3

Network

# of Controllers 4

Network Controllers DEC DEFPA-MB FDDI PCI UTP Adapter

# of Nets 4

Type of Nets FDDI

Network Speed 100Mbit

MSL (sec) 30 (Non RFC1122)

Time-Wait (sec) 60 (Non RFC1122)

Load Generators

# of Load Generators 8

# of Processes Each 3

Model HP Vectra XA

Processor Pentium Pro 200/512K

# of Processors 1

Memory 96MB

Network Controller DEC DEFPA FDDI PCI over UTP

Operating System NT 4.0 Workstation SP3

Compiler Microsoft Visual C++ 5.0

Benchmark Configuration

Maximum Requested Load 1431

Maximum Fileset Size (MB) 829

Notes

OS Notes

Microsoft Windows NT 4.0 Service Pack 3, tcpip.sys patch from NT hot fix after Service Pack 3

Network Notes

The DEC DEFPA-MB cards are dual attach station (DAS) FDDI over category 5 twisted pair.
No hubs were employed, each of the 4 networks is connected as a ring using both attachments.
Each network included one card in the SUT and two of the clients.
clients 1(prime) and 2 on 1st segment, clients 3 and 4 on 2nd, 5 and 6 on 3rd, 7 and 8 on 4th.

Other Notes

Performance Boost for Foreground Application=NONE ---Do not raise the priority of the foreground application, default is halfway.
Disable IIS Windows NT Challenge/Response ---Disables IIS user information encryption, default is enabled.
Added Registry Entry InetInfo/Parameters/LogFileFlushInterval=0x3c ---Makes the log file flush interval 60 seconds, default is 30.
Added Registry Entry InetInfo/Parameters/LogFileBatchSize=0x2000000 ---Forces the log file flush size to be MIN(60sec,32MB), default is 64KB.
Added Registry Entry InetInfo/Parameters/ObjectCacheTTL=0xea60 ---Keeps IIS open descriptors active at least 16.6 hours, default is 30 sec.
Added Registry Entry InetInfo/Parameters/MemoryCacheSize=0x2000000 ---Ups the cache open descriptor table to 32MB, default is 3MB.
Added Registry Entry InetInfo/Parameters/ListenBacklog=0x19 ---Specifies maximum active connections to hold in server queue, default is 15.
Added Registry Entry InetInfo/Parameters/MaxPoolThreads=1 ---Specifies maximum network request threads per processor, default is 10.
Added Registry Entry InetInfo/Parameters/PoolThreadLimit=2 ---Specifies maximum pool threads in system, default is 2 * #MB.
Added Registry Entry Tcpip/Parameters/MaxFreeTcbs=0x186a0 ---Increases the TCB timewait table to 100000 entries, default is 2000.
Added Registry Entry Tcpip/Parameters/MaxHashTableSize=0x10000 ---Sets TCB hash table size to 65,536 entries, default is 512.
Added Registry Entry Tcpip/Parameters/TcpTimedWaitDelay=0x3c ---Sets TIME_WAIT parameter to 60 seconds (non-RFC 1122), default is 240.
Set NDIS/Parameters/ProcessorAffinityMask to 0 ---Forces processor that handled interrupt to also handle that DPC, default is any processor.
One 2.1GB 7200RPM Drive for OS and IIS Data, One 2.1GB 7200RPM Drive for IIS logs, One 2.1GB 7200RPM Drive for Pagefile

Test Run Details

Detailed Statistics
Load	Throughput	Class	Target Mix	Actual Mix	Error Percent	Mean Response	Std Dev Response
143	143	0	35.0%	35.0%	0.00%	5.45	14.09
		1	50.0%	50.0%	0.00%	6.15	14.04
		2	14.0%	14.0%	0.00%	12.55	18.79
		3	1.0%	1.0%	0.00%	149.96	207.39
286	286	0	35.0%	35.0%	0.00%	4.91	6.63
		1	50.0%	50.0%	0.00%	5.70	7.48
		2	14.0%	14.0%	0.00%	12.27	13.90
		3	1.0%	1.0%	0.00%	90.84	107.76
429	429	0	35.0%	35.0%	0.00%	5.08	5.06
		1	50.0%	50.0%	0.00%	5.82	5.77
		2	14.0%	14.0%	0.00%	12.71	12.61
		3	1.0%	1.0%	0.00%	80.34	86.30
572	572	0	35.0%	35.0%	0.00%	5.42	5.35
		1	50.0%	50.0%	0.00%	6.19	6.04
		2	14.0%	14.0%	0.00%	13.48	13.27
		3	1.0%	1.0%	0.00%	81.85	83.25
715	715	0	35.0%	35.0%	0.00%	5.93	6.00
		1	50.0%	50.0%	0.00%	6.69	6.77
		2	14.0%	14.0%	0.00%	14.41	14.27
		3	1.0%	1.0%	0.00%	85.66	86.79
858	858	0	35.0%	35.0%	0.00%	6.54	9.95
		1	50.0%	50.0%	0.00%	7.28	9.54
		2	14.0%	14.0%	0.00%	15.61	15.35
		3	1.0%	1.0%	0.00%	91.07	94.53
1001	1001	0	35.0%	35.0%	0.00%	7.08	7.04
		1	50.0%	50.0%	0.00%	7.85	9.70
		2	14.0%	14.0%	0.00%	16.79	16.51
		3	1.0%	1.0%	0.00%	96.61	96.98
1144	1144	0	35.0%	35.0%	0.00%	7.98	7.93
		1	50.0%	50.0%	0.00%	8.78	8.65
		2	14.0%	14.0%	0.00%	18.49	18.15
		3	1.0%	1.0%	0.00%	105.28	105.35
1287	1287	0	35.0%	35.0%	0.00%	9.75	13.18
		1	50.0%	50.0%	0.00%	10.59	10.57
		2	14.0%	14.0%	0.00%	20.83	21.55
		3	1.0%	1.0%	0.00%	112.74	112.89
1431	1422	0	35.0%	35.0%	0.00%	10.91	12.28
		1	50.0%	50.0%	0.00%	11.67	11.40
		2	14.0%	14.0%	0.00%	23.03	28.48
		3	1.0%	1.0%	0.00%	121.89	124.19

Sat Aug 1 3:01:54 1998

First published at SPEC.org on 26-Aug-1997
