SPECweb96 Result

Hewlett-Packard:HP NetServer LT 6000r
Microsoft:IIS 5.0 and SWC 2.0
SPECweb96 = 16444


Performance

Throughput
(ops/sec)
Response
(msec)
17234.5
34404.9
51675.3
68805.7
86116.2
103386.2
120686.0
137876.4
155017.2
164448.9

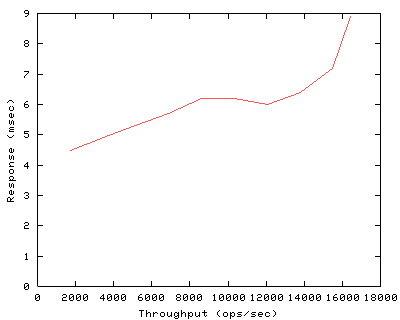

Performance Graph


Configuration

Availability Dates
Hardware Mar-2000
HTTP Software Feb-2000
Operating SystemFeb-2000

Hardware
Vendor Hewlett-Packard
Model HP NetServer LT 6000r
Processor Pentium III Xeon 550MHz
# of Processors 6
Primary Cache 16KBI+16KBD on chip
Secondary Cache 2MB(I+D) off chip
Other Cache None
Memory 4.0 GB
Disk Subsystem 4 18GB 10Krpm RAID 0 Drives
Disk ControllersEmbedded Ultra 2 SCSI DAC
Other Hardware 6 Alteon ACEswitch 180

Software
Operating SystemMicrosoft Windows 2000 Advanced Server
File System TypeNTFS
Other Software Scalable Web Cache (SWC) 2.0

HTTP Software
Vendor Microsoft
HTTP Software IIS 5.0 and SWC 2.0
# of "threads" 1
Server Cache Microsoft Scalable Web Cache (SWC) 2.0
Log Mode Combined

Test Sponsor
Test Date Feb-2000
Tested By Hewlett-Packard
SPEC License3

Network
# of Controllers 6
Network ControllersAlteon ACENic PCI Gigabit
# of Nets 6
Type of Nets Jumbo Frame Gigabit
Network Speed 1000Mb/s
MSL (sec) 30 (Non RFC1122)
Time-Wait (sec) 60 (Non RFC1122)

Load Generators
# of Load Generators20
# of Processes Each 8
Model HP NetServer LPr
Processor 550MHz, Intel PIII, 512KB L2 cache
# of Processors 2
Memory 256MB
Network Controller Alteon ACENic PCI Gigabit
Operating System Windows 2000 Professional
Compiler Microsoft Visual C++ 5.0

Benchmark Configuration
Maximum Requested Load 17200
Maximum Fileset Size (MB)2865


Notes

OS Notes

Network Notes

Other Notes


Test Run Details

Detailed Statistics
Load Throughput Class Target Mix Actual Mix Error Percent Mean Response Std Dev Response
17201723035.0%35.0%0.00%3.7418.25
150.0%50.0%0.00%4.0219.57
214.0%14.0%0.00%7.0626.33
31.0%1.0%0.00%22.4028.11
34403440035.0%35.0%0.00%4.0816.16
150.0%50.0%0.00%4.3111.37
214.0%14.0%0.00%7.4022.74
31.0%1.0%0.00%23.3428.35
51605167035.0%35.0%0.00%4.4212.03
150.0%50.0%0.00%4.7516.66
214.0%14.0%0.00%7.8320.65
31.0%1.0%0.00%24.5432.73
68806880035.0%35.0%0.00%4.7811.17
150.0%50.0%0.00%5.1115.31
214.0%14.0%0.00%8.2822.20
31.0%1.0%0.00%25.8128.46
86008611035.0%35.0%0.00%5.2613.76
150.0%50.0%0.00%5.6114.70
214.0%14.0%0.00%8.7920.26
31.0%1.0%0.00%27.3533.48
1032010338035.0%35.0%0.00%5.2612.86
150.0%50.0%0.00%5.6013.74
214.0%14.0%0.00%8.9720.29
31.0%1.0%0.00%28.3939.06
1204012068035.0%35.0%0.00%5.0210.81
150.0%50.0%0.00%5.3212.58
214.0%14.0%0.00%8.9217.77
31.0%1.0%0.00%28.6434.33
1376013787035.0%35.0%0.00%5.4010.80
150.0%50.0%0.00%5.7112.75
214.0%14.0%0.00%9.5318.20
31.0%1.0%0.00%30.6439.00
1548015501035.0%35.0%0.00%6.1412.70
150.0%50.0%0.00%6.4612.73
214.0%14.0%0.00%10.6120.24
31.0%1.0%0.00%33.7238.54
1720016444035.0%35.0%0.00%7.7112.39
150.0%50.0%0.00%8.0614.30
214.0%14.0%0.00%12.9022.10
31.0%1.0%0.00%39.8044.92


Tue Mar 7 14:02:03 2000

First published at SPEC.org on 22-Feb-2000
