SPEC® OMPG2012 Result

Lenovo Global Technology	SPECompG_base2012 = 126
ThinkSystem SR950V3 (Intel Xeon Platinum 8490H, 1.90 GHz)	SPECompG_peak2012 = 138

OMP2012 license:	9017	Test date:	Aug-2024
Test sponsor:	Lenovo Global Technology	Hardware Availability:	Oct-2023
Tested by:	Lenovo Global Technology	Software Availability:	Jun-2024

Hardware
CPU Name:	Intel Xeon 8490H CPU @ 1.90GHz
CPU Characteristics:	Intel Turbo Boost Technology up to 3.50 GHz
CPU MHz:	1900
CPU MHz Maximum:	3500
FPU:	Integrated
CPU(s) enabled:	480 cores, 8 chips, 60 cores/chip
CPU(s) orderable:	2,4,8 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per core
L3 Cache:	115200 KB I+D on chip per chip
Other Cache:	None
Memory:	4 TB (64 x 64 GB 2Rx4 PC4-4800V, ECC)
Disk Subsystem:	1 x 960GB M.2 NVME SSD
Other Hardware:	None
Base Threads Run:	480
Minimum Peak Threads:	240
Maximum Peak Threads:	480

Software
Operating System:	Red Hat Enterprise Linux 9 (x86_64) ,Kernel 5.14.0-70.22.1.el9_0.x86_64
Compiler:	C/C++/Fortran: Version 2024.2.0.635 of Intel oneAPI DPC/C++
Auto Parallel:	No
File System:	xfs
System State:	Run level 3 (multi-user)
Base Pointers:	64-bit
Peak Pointers:	64-bit
Other Software:	None

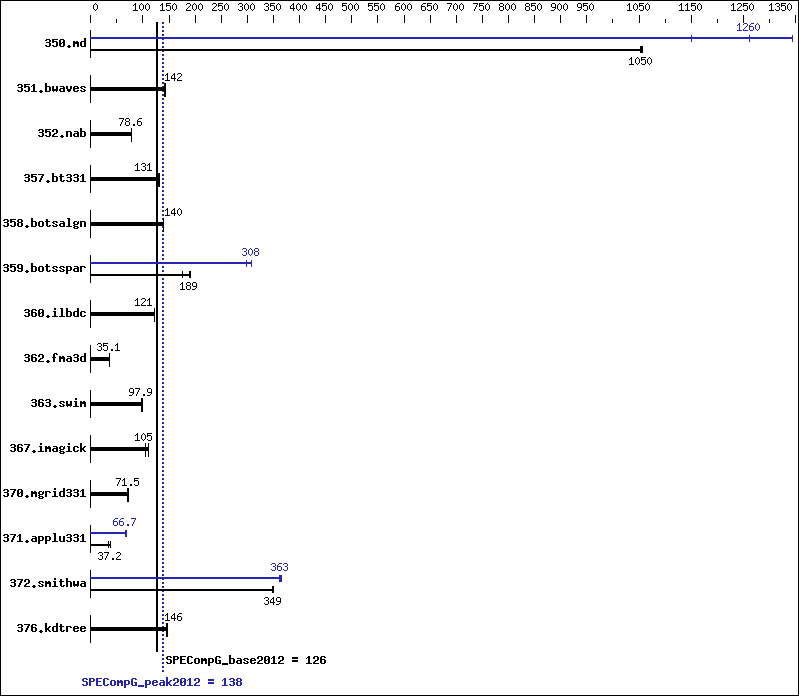

Results Table

Benchmark	Base							Peak
Benchmark	Threads	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Threads	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md	480	4.38	1060	4.40	1050	4.39	1050	480	3.67	1260	3.45	1340	4.03	1150
351.bwaves	480	31.7	143	31.9	142	32.0	142	480	31.7	143	31.9	142	32.0	142
352.nab	480	49.5	78.5	49.4	78.8	49.5	78.6	480	49.5	78.5	49.4	78.8	49.5	78.6
357.bt331	480	36.2	131	36.4	130	36.3	131	480	36.2	131	36.4	130	36.3	131
358.botsalgn	480	31.2	140	31.0	140	31.1	140	480	31.2	140	31.0	140	31.1	140
359.botsspar	480	27.4	192	29.9	176	27.7	189	240	17.6	298	17.0	309	17.1	308
360.ilbdc	480	29.4	121	29.4	121	29.3	121	480	29.4	121	29.4	121	29.3	121
362.fma3d	480	108	35.1	109	35.0	108	35.3	480	108	35.1	109	35.0	108	35.3
363.swim	480	46.3	97.9	45.3	99.9	46.4	97.5	480	46.3	97.9	45.3	99.9	46.4	97.5
367.imagick	480	66.9	105	64.1	110	66.9	105	480	66.9	105	64.1	110	66.9	105
370.mgrid331	480	61.7	71.6	61.8	71.5	62.1	71.2	480	61.7	71.6	61.8	71.5	62.1	71.2
371.applu331	480	160	38.0	177	34.3	163	37.2	240	90.9	66.7	91.4	66.3	89.0	68.1
372.smithwa	480	15.3	351	15.4	349	15.4	348	480	14.7	364	14.9	361	14.8	363
376.kdtree	480	30.7	146	31.0	145	30.8	146	480	30.7	146	31.0	145	30.8	146

Platform Notes

 Sysinfo program /home/omp2012/Docs/sysinfo
 Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5)
 running on BLR Sun Aug  4 03:00:47 2024

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8490H
       8 "physical id"s (chips)
       480 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 60
       siblings  : 60
       physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59
       physical 1: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59
       physical 2: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59
       physical 3: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59
       physical 4: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59
       physical 5: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59
       physical 6: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59
       physical 7: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59
    cache size : 115200 KB

 From /proc/meminfo
    MemTotal:       4226678004 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="Red Hat Enterprise Linux"
       VERSION="9.0 (Plow)"
       ID="rhel"
       ID_LIKE="fedora"
       VERSION_ID="9.0"
       PLATFORM_ID="platform:el9"
       PRETTY_NAME="Red Hat Enterprise Linux 9.0 (Plow)"
       ANSI_COLOR="0;31"
    redhat-release: Red Hat Enterprise Linux release 9.0 (Plow)
    system-release: Red Hat Enterprise Linux release 9.0 (Plow)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:9::baseos

 uname -a:
    Linux BLR 5.14.0-70.22.1.el9_0.x86_64 #1 SMP PREEMPT Tue Aug 2 10:02:12 EDT
    2022 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Aug 4 01:30

 SPEC is set to: /home/omp2012
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/nvme0n1p5 xfs   435G   79G  357G  18% /home
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Lenovo EBE105F-2.10 01/31/2024
   Memory:
    18x Samsung M321R8GA0BB0-CQKDG 64 GB 2 rank 4800 MT/s
    8x Samsung M321R8GA0BB0-CQKEG 64 GB 2 rank 4800 MT/s
    6x Samsung M321R8GA0BB0-CQKVG 64 GB 2 rank 4800 MT/s
    32x Samsung M321R8GA0BB0-CQKZH 64 GB 2 rank 4800 MT/s

 (End of data from sysinfo program)

General Notes

======================================================================
 General OMP Library Settings
   KMP_AFFINITY		= granularity=tile, proclist=[0-59,60-119,120-179,
			  180-239,240-299,300-359,360-419,420-479],explicit
   KMP_LIBRARY		= turnaround
   KMP_BLOCKTIME	= infinite
   KMP_SCHEDULE		= static,16
   KMP_DETERMINISTIC_REDUCTION= 1
   OMP_STACKSIZE		= 480M
   OMP_MAXACTIVE_LEVELS= 1
   OMP_NUM_THREADS	= 480
   OMP_DYNAMIC		= FALSE
   OMP_PROC_BIND	= close
   OMP_PLACES		= sockets
   OMP_DISPLAY		= verbose
======================================================================
 BIOS Setting notes:
 Choose Operating Mode set to Maximum Performance, and change to Custom Mode.
 Below items also configured:
     Hyper-Threading		= Disabled
     Page Policy			= Adaptive
     Patrol Scrub			= Disabled
     Memory Data Scrambling	= Disabled
     LLC Prefetch			= Disabled

 Yes: The test sponsor attests, as of date of publication, the CVE-2017-5754 (Meltdown)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, the CVE-2017-5753 (Spectre variant 1)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Spectre variant 2)
 is mitigated in the system as tested and documented.
======================================================================
 OS tunning:
 	ulimit -s unlimited
=========================================================================

Base Compiler Invocation

C benchmarks:

icx

C++ benchmarks:

icpx

Fortran benchmarks:

ifx

Base Portability Flags

350.md:	-FR
357.bt331:	-mcmodel=medium
363.swim:	-mcmodel=medium
367.imagick:	-std=c99

Peak Compiler Invocation

C benchmarks:

icx

C++ benchmarks:

icpx

Fortran benchmarks:

ifx

Peak Portability Flags

350.md:	-FR
357.bt331:	-mcmodel=medium
363.swim:	-mcmodel=medium
367.imagick:	-std=c99

Peak Optimization Flags

C benchmarks:

352.nab:	basepeak = yes
358.botsalgn:	basepeak = yes
359.botsspar:	-Wno-implicit-function-declaration -O3 -qopenmp -xSAPPHIRERAPIDS -ipo -foptimize-sibling-calls -qopt-zmm-usage=high -mprefer-vector-width=512 -ffast-math
367.imagick:	basepeak = yes
372.smithwa:	-Wno-implicit-function-declaration -O3 -qopenmp -xSAPPHIRERAPIDS -ipo -foptimize-sibling-calls -mprefer-vector-width=512 -ffast-math

C++ benchmarks:

376.kdtree:

basepeak = yes

Fortran benchmarks:

350.md:	-O3 -qopenmp -xSAPPHIRERAPIDS -ipo -foptimize-sibling-calls -mprefer-vector-width=512 -align array128byte -fno-alias
351.bwaves:	basepeak = yes
357.bt331:	basepeak = yes
360.ilbdc:	basepeak = yes
362.fma3d:	basepeak = yes
363.swim:	basepeak = yes
370.mgrid331:	basepeak = yes
371.applu331:	-O3 -qopenmp -xSAPPHIRERAPIDS -ipo -foptimize-sibling-calls -qopt-zmm-usage=high -shared-intel -align array128byte -fno-alias

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/lenovo-omp2012-oneAPI.20240829.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/lenovo-omp2012-oneAPI.20240829.xml.
