SPEC® OMPG2012 Result

Copyright 2012-2023 Standard Performance Evaluation Corporation

Cisco Systems

SPECompG_base2012 = 84.4

Cisco UCS X410c M7 (Intel Xeon Platinum 8490H)

SPECompG_peak2012 = Not Run

OMP2012 license: 023 Test date: May-2023
Test sponsor: Cisco Systems Hardware Availability: May-2023
Tested by: Cisco Systems Software Availability: Mar-2023

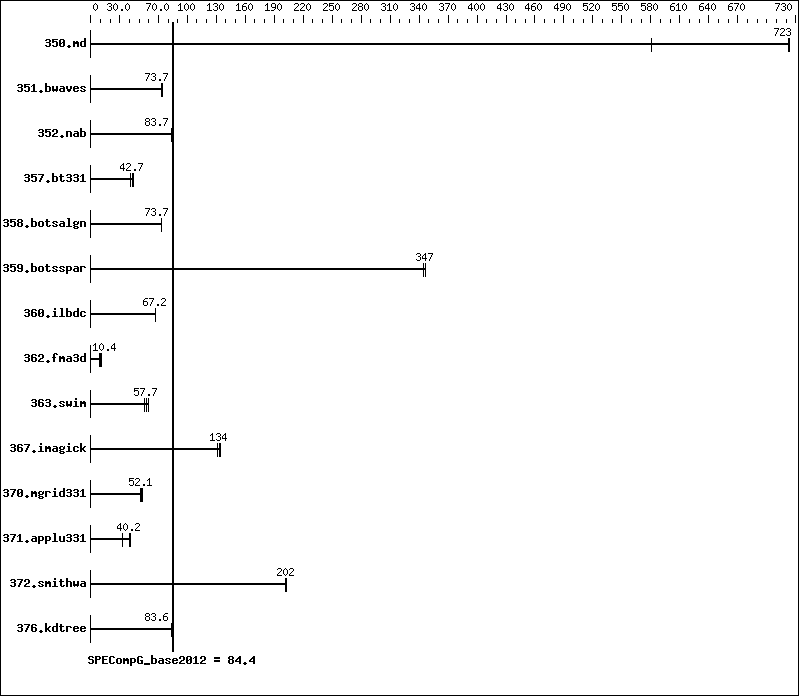

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8490H
CPU Characteristics: Intel Turbo Boost Technology up to 3.5 GHz
CPU MHz: 1900
CPU MHz Maximum: 3500
FPU: Integrated
CPU(s) enabled: 240 cores, 4 chips, 60 cores/chip
CPU(s) orderable: 1,2,3,4 Chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
L3 Cache: 112.5 MB I+D on chip per chip
Other Cache: None
Memory: 2 TB (32 x 64 GB 2Rx4 PC5-4800B-R)
Disk Subsystem: 1 x 960 GB M.2 SSD
Other Hardware: None
Base Threads Run: 240
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: SUSE Linux Enterprise Server 15 SP4
5.14.21-150400.22-default
Compiler: C/C++/Fortran: Version 2023.1.0.20230320 of Intel
oneAPI DPC++/C++
Auto Parallel: Yes
File System: xfs
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 240 6.40  724    6.40  723     7.98  580
351.bwaves 240 61.8   73.3  61.5   73.7   61.3   73.9
352.nab 240 46.5   83.7  46.6   83.5   46.5   83.7
357.bt331 240 111     42.7  116     41.0   106     44.6
358.botsalgn 240 59.0   73.7  59.0   73.7   59.0   73.7
359.botsspar 240 15.1   347    15.1   347     15.3   344
360.ilbdc 240 52.9   67.3  52.9   67.2   53.2   66.9
362.fma3d 240 365     10.4  411     9.24  333     11.4
363.swim 240 76.4   59.3  81.0   55.9   78.6   57.7
367.imagick 240 52.3   135    52.6   134     53.7   131
370.mgrid331 240 83.2   53.1  85.5   51.7   84.9   52.1
371.applu331 240 149     40.7  182     33.2   151     40.2
372.smithwa 240 26.6   201    26.5   203     26.5   202
376.kdtree 240 53.8   83.6  53.9   83.5   53.8   83.6

Platform Notes

 Sysinfo program /home/omp2012/Docs/sysinfo
 Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5)
 running on localhost Fri May 12 11:30:37 2023

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8490H
       4 "physical id"s (chips)
       240 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 60
       siblings  : 60
       physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59
       physical 1: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59
       physical 2: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59
       physical 3: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59
    cache size : 115200 KB

 From /proc/meminfo
    MemTotal:       2113421080 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="SLES"
       VERSION="15-SP4"
       VERSION_ID="15.4"
       PRETTY_NAME="SUSE Linux Enterprise Server 15 SP4"
       ID="sles"
       ID_LIKE="suse"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:15:sp4"

 uname -a:
    Linux localhost 5.14.21-150400.22-default #1 SMP PREEMPT_DYNAMIC Wed May 11
    06:57:18 UTC 2022 (49db222) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 May 12 02:08

 SPEC is set to: /home/omp2012
    Filesystem     Type   Size  Used Avail Use% Mounted on
    /dev/sda2      btrfs  222G  102G  119G  47% /home
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Cisco Systems, Inc. X410M7.5.1.1b.10.0424230829 04/24/2023
   Memory:
    14x 0xAD00 HMCG94MEBRA109N 64 GB 2 rank 4800 MT/s
    2x 0xAD00 HMCG94MEBRA121N 64 GB 2 rank 4800 MT/s
    16x 0xAD00 HMCG94MEBRA123N 64 GB 2 rank 4800 MT/s

 (End of data from sysinfo program)

General Notes

 ========================================================================
 BIOS Setting:
     Intel Hyper-Threading Technology set to Disabled
     Sub NUMA Clustering set to Disabled
     Processor C6 Report set to Enabled
     ADDDC Sparing set to Disabled
     UPI Link Power Management Enabled
     UPI Link Speed 16.0GT/S

========================================================================
 General OMP Library Settings:
	ENV_KMP_LIBRARY		= turnaround
	ENV_KMP_BLOCKTIME	= infinite
	ENV_OMP_STACKSIZE	= 292M
	ENV_KMP_SCHEDULE	= static
	ENV_OMP_THREADS		= 240
	ENV_OMP_DYNAMIC		= FALSE
========================================================================s
     NA: The test sponsor attests, as of date of publication, the CVE-2017-5754 (Meltdown)
     is mitigated in the system as tested and documented.

     Yes: The test sponsor attests, as of date of publication, the CVE-2017-5753 (Spectre variant 1)
     is mitigated in the system as tested and documented.

     Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Spectre variant 2)
     is mitigated in the system as tested and documented.
========================================================================
 OS tunning:
     Stack size set to unlimited using "ulimit -s unlimited"
     Transparent Huge Pages enabled by default

Base Compiler Invocation

C benchmarks:

 icx

C++ benchmarks:

 icpx

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -qopenmp   -xsapphirerapids   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -ipo   -Wno-implicit-function-declaration   -L/home/omp2012/je5.0.1-64   -Wl,   --rpath=/home/omp2012/je5.0.1-64    -ljemalloc

C++ benchmarks:

 -O3   -qopenmp   -xsapphirerapids   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -ipo   -Wno-implicit-function-declaration   -L/home/omp2012/je5.0.1-64   -Wl,   --rpath=/home/omp2012/je5.0.1-64    -ljemalloc

Fortran benchmarks:

 -O3   -qopenmp   -xsapphirerapids   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -ipo   -Wno-implicit-function-declaration   -align all   -L/home/omp2012/je5.0.1-64   -Wl,   --rpath=/home/omp2012/je5.0.1-64    -ljemalloc

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic2023-official-linux64.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic2023-official-linux64.xml.
