SPEC® OMPG2012 Result

Copyright 2012-2022 Standard Performance Evaluation Corporation

Lenovo Global Technology

SPECompG_base2012 = 83.0

ThinkSystem SR665 V3 (AMD EPYC 9654)

SPECompG_peak2012 = 86.0

OMP2012 license: 28 Test date: Oct-2022
Test sponsor: Lenovo Global Technology Hardware Availability: Nov-2022
Tested by: Lenovo Global Technology Software Availability: Nov-2022

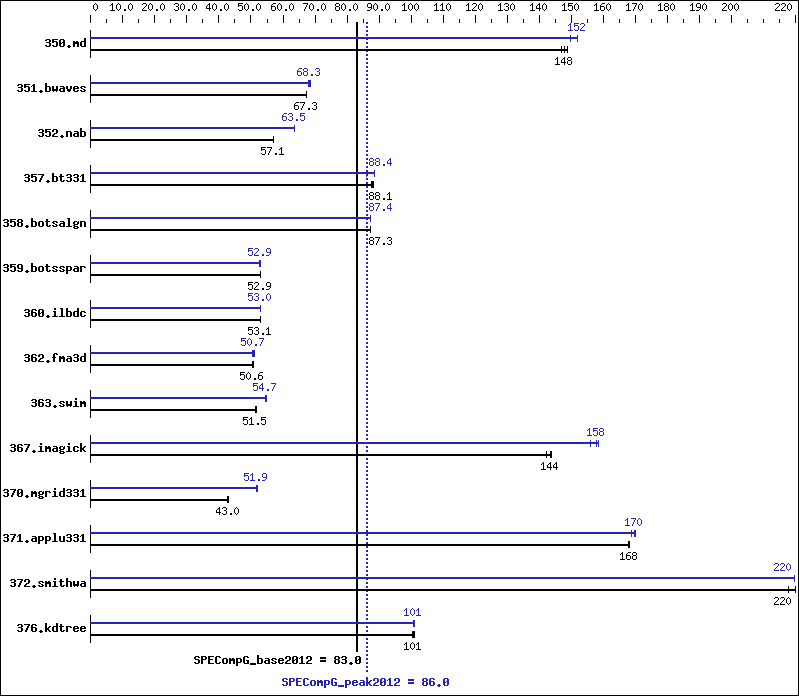

Benchmark results graph
Hardware
CPU Name: AMD EPYC 9654
CPU Characteristics: Max Boost Clock up to 3.7 GHz
CPU MHz: 2400
CPU MHz Maximum: 3700
FPU: Integrated
CPU(s) enabled: 192 cores, 2 chips, 96 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 384 MB I+D on chip per chip, 32 MB shared / 8
cores
Other Cache: None
Memory: 1536 GB (24 x 64 GB 2Rx4 PC5-4800B-R)
Disk Subsystem: 1 x 1 TB SATA Hard Drive
Other Hardware: None
Base Threads Run: 384
Minimum Peak Threads: 192
Maximum Peak Threads: 384
Software
Operating System: Red Hat Enterprise Linux (x86_64)
, Kernel 4.18.0-240.el8.x86_64
Compiler: C/C++/Fortran: Version 2022.2.0.191 of Intel
oneAPI DPC++/C++
Auto Parallel: No
File System: xfs
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 384 31.1  149    31.3  148    31.5  147    192 30.9  150    30.5  152    30.5  152
351.bwaves 384 67.3  67.3  67.3  67.3  67.3  67.3  192 66.3  68.3  66.1  68.5  66.6  68.1
352.nab 384 68.2  57.0  68.1  57.1  68.1  57.1  192 61.2  63.5  61.3  63.5  61.2  63.6
357.bt331 384 54.1  87.7  53.8  88.1  53.7  88.3  192 53.6  88.4  53.5  88.7  55.0  86.2
358.botsalgn 384 49.8  87.3  49.8  87.3  49.8  87.3  384 49.8  87.4  49.8  87.3  49.8  87.4
359.botsspar 384 99.2  52.9  99.2  52.9  99.2  52.9  384 99.5  52.8  99.3  52.9  99.2  52.9
360.ilbdc 384 67.1  53.1  67.1  53.0  67.1  53.1  384 67.1  53.0  67.1  53.0  67.1  53.1
362.fma3d 384 75.1  50.6  75.0  50.7  75.1  50.6  384 75.0  50.7  74.5  51.0  75.4  50.4
363.swim 384 87.9  51.5  87.9  51.5  87.8  51.6  192 82.9  54.7  83.0  54.6  82.8  54.7
367.imagick 384 48.9  144    49.0  144    49.4  142    192 45.1  156    44.4  158    44.5  158
370.mgrid331 384 103    42.8  103    43.0  103    43.0  192 85.3  51.8  85.0  52.0  85.2  51.9
371.applu331 384 36.0  168    36.1  168    36.1  168    192 35.6  170    35.7  170    35.9  169
372.smithwa 384 24.4  220    24.4  220    24.6  218    384 24.4  220    24.4  220    24.4  220
376.kdtree 384 44.7  101    44.9  100    44.5  101    384 44.6  101    44.7  101    44.6  101

Platform Notes

 Sysinfo program /home/omp2012/Docs/sysinfo
 Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5)
 running on Genoa-OMP2012 Wed Oct 19 11:17:02 2022

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : AMD EPYC 9654 96-Core Processor
       2 "physical id"s (chips)
       384 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 96
       siblings  : 192
       physical 0: cores 0 1 2 3 4 5 6 7 10 11 12 13 14 15 16 17 18 19 20 21 22
       23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47
       48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72
       73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95
       physical 1: cores 0 1 2 3 4 5 6 7 10 11 12 13 14 15 16 17 18 19 20 21 22
       23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47
       48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72
       73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95
    cache size : 1024 KB

 From /proc/meminfo
    MemTotal:       1584307428 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="Red Hat Enterprise Linux"
       VERSION="8.6 (Ootpa)"
       ID="rhel"
       ID_LIKE="fedora"
       VERSION_ID="8.6"
       PLATFORM_ID="platform:el8"
       PRETTY_NAME="Red Hat Enterprise Linux 8.6 (Ootpa)"
       ANSI_COLOR="0;31"
    redhat-release: Red Hat Enterprise Linux release 8.6 (Ootpa)
    system-release: Red Hat Enterprise Linux release 8.6 (Ootpa)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:8::baseos

 uname -a:
    Linux Genoa-OMP2012 4.18.0-372.9.1.el8.x86_64 #1 SMP Fri Apr 15 22:12:19 EDT
    2022 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Oct 19 04:23

 SPEC is set to: /home/omp2012
    Filesystem            Type  Size  Used Avail Use% Mounted on
    /dev/mapper/rhel-home xfs   819G   70G  749G   9% /home
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Lenovo KAE103A-1.10 09/26/2022
   Memory:
    4x SK Hynix HMCG94AEBQA109N 64 GB 2 rank 4800 MT/s
    10x SK Hynix HMCG94AEBRA102N 64 GB 2 rank 4800 MT/s
    2x SK Hynix HMCG94AEBRA109N 64 GB 2 rank 4800 MT/s
    8x SK Hynix HMCG94AEBRA123N 64 GB 2 rank 4800 MT/s

 (End of data from sysinfo program)

General Notes

==============================================
 General OMP Library Settings
	ENV_OMP_PROC_BIND				= close
	ENV_OMP_PLACES					= threads
	ENV_OMP_WAIT_POLICY				= PASSIVE
	ENV_OMP_MAX_ACTIVE_LEVELS		= 1
	ENV_OMP_THREADS					= 384
	ENV_OMP_STACKSIZE				= 256M
	ENV_OMP_SCHEDULE				= static
	ENV_OMP_DYNAMIC					= FALSE

==============================================
 BIOS Setting notes:
 -------------------
 Choose Operating Mode set to Maximum Performance and configured below settings:
	- CPPC set as Disable
	- ACPI SRAT L3 Cache as NUMA Domain set as Enabled
	- DRAM Scrub Time set as Disabled

==============================================
	Yes: The test sponsor attests, as of date of publication, the CVE-2017-5754 (Meltdown)
	is mitigated in the system as tested and documented.

	Yes: The test sponsor attests, as of date of publication, the CVE-2017-5753 (Spectre variant 1)
	is mitigated in the system as tested and documented.

	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Spectre variant 2)
	is mitigated in the system as tested and documented.
=============================================
 OS tunning:
	ulimit -s unlimited

Base Compiler Invocation

C benchmarks:

 icx

C++ benchmarks:

 icpx

Fortran benchmarks:

 ifx

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -Ofast   -fopenmp   -march=core-avx2   -ipo    -fma   -ansi-alias   -fp-model fast=2   -qno-opt-multiple-gather-scatter-by-shuffles   -ffast-math   -fstrict-enums   -fstrict-vtable-pointers   -fvirtual-function-elimination

C++ benchmarks:

 -Ofast   -fopenmp   -march=core-avx2   -ipo    -fma   -ansi-alias   -fp-model fast=2   -qno-opt-multiple-gather-scatter-by-shuffles   -ffast-math   -fstrict-enums   -fstrict-vtable-pointers

Fortran benchmarks:

 -Ofast   -fopenmp   -march=core-avx2   -ipo    -fma   -ansi-alias   -fp-model fast=2   -qno-opt-multiple-gather-scatter-by-shuffles   -align array128byte   -ffinite-math-only   -fno-omit-frame-pointer   -m64   -ipo1

Peak Compiler Invocation

C benchmarks:

 icx

C++ benchmarks:

 icpx

Fortran benchmarks:

 ifx

Peak Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Peak Optimization Flags

C benchmarks:

352.nab:  -Ofast   -fopenmp   -march=core-avx2   -ipo    -fma   -ansi-alias   -fp-model fast=2   -qno-opt-multiple-gather-scatter-by-shuffles   -ffast-math   -fstrict-enums   -fstrict-vtable-pointers   -fvirtual-function-elimination   -fno-signed-zeros
358.botsalgn:  -Ofast   -fopenmp   -march=core-avx2   -ipo    -fma   -ansi-alias   -fp-model fast=2   -qno-opt-multiple-gather-scatter-by-shuffles   -ffast-math   -fstrict-enums   -fstrict-vtable-pointers   -fvirtual-function-elimination
359.botsspar:  Same as 358.botsalgn
367.imagick:  Same as 358.botsalgn
372.smithwa:  Same as 358.botsalgn

C++ benchmarks:

 -Ofast   -fopenmp   -march=core-avx2   -ipo    -fma   -ansi-alias   -fp-model fast=2   -qno-opt-multiple-gather-scatter-by-shuffles   -ffast-math   -fstrict-enums   -fstrict-vtable-pointers

Fortran benchmarks:

350.md:  -Ofast   -fopenmp   -march=core-avx2   -ipo    -fma   -ansi-alias   -fp-model fast=2   -qno-opt-multiple-gather-scatter-by-shuffles   -align array128byte   -ffinite-math-only   -fno-omit-frame-pointer   -m64   -ipo1
351.bwaves:  Same as 350.md
357.bt331:  -Ofast   -fopenmp   -march=core-avx2   -ipo    -fma   -ansi-alias   -fp-model fast=2   -qno-opt-multiple-gather-scatter-by-shuffles   -align array128byte   -ffinite-math-only   -fno-omit-frame-pointer   -m64   -ipo1   -norecursive
360.ilbdc:  Same as 350.md
362.fma3d:  Same as 350.md
363.swim:  Same as 350.md
370.mgrid331:  Same as 350.md
371.applu331:  Same as 350.md

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/lenovo-omp2012-oneAPI.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/lenovo-omp2012-oneAPI.xml.
