Dell (Test Sponsor: University of Delaware) |
SPECompG_base2012 = 7.04 |
|
Dell M630 Blade (Intel Xeon E5-2680 v3) |
SPECompG_peak2012 = Not Run |
| OMP2012 license: | 056A | Test date: | Sep-2018 |
|---|---|---|---|
| Test sponsor: | University of Delaware | Hardware Availability: | Jun-2018 |
| Tested by: | University of Delaware | Software Availability: | Jun-2018 |
| Hardware | |
|---|---|
| CPU Name: | Dual Intel Xeon E5-2680 v3 |
| CPU Characteristics: | Intel Turbo Boost Technology off, Hyper-Threading on |
| CPU MHz: | 2500 |
| CPU MHz Maximum: | 3300 |
| FPU: | Integrated |
| CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1-2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 30 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (16 x 8 GB 2Rx4 PC4-2133-R) |
| Disk Subsystem: | 400GB (SATA Mix Use MLC 6Gbps 2.5in Hot-plug Drive,13G (400-AEIX) dual SSDs, RAID-1) |
| Other Hardware: | None |
| Base Threads Run: | 44 |
| Minimum Peak Threads: | -- |
| Maximum Peak Threads: | -- |
| Software | |
|---|---|
| Operating System: | CentOS Linux release 7.5.1804 (Core) 3.10.0-862.11.6.el7.x86_64 |
| Compiler: | C/C++/Fortran: Version 18.4 of PGI Community Edition |
| Auto Parallel: | No |
| File System: | XFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | None |

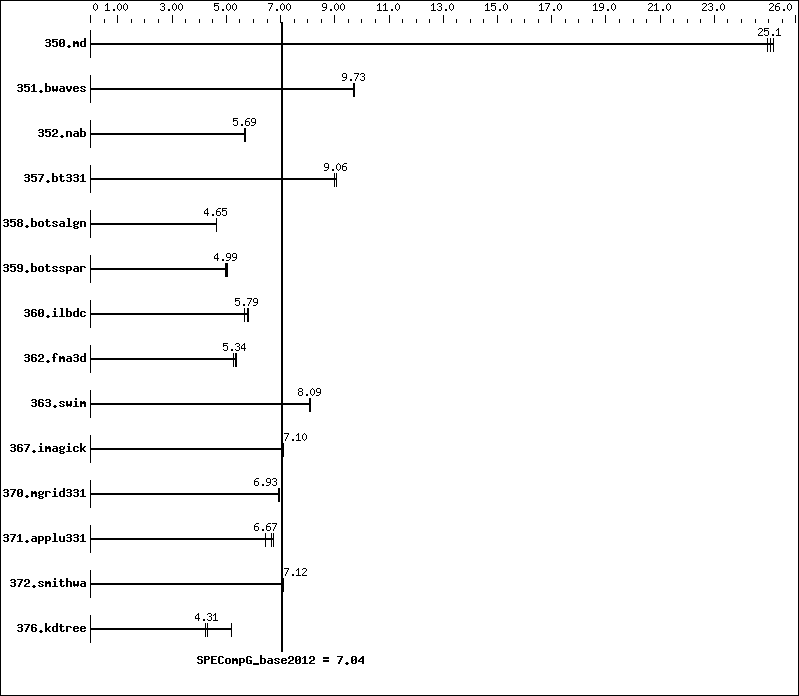

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 350.md | 44 | 185 | 25.1 | 186 | 24.9 | 184 | 25.2 | |||||||
| 351.bwaves | 44 | 466 | 9.73 | 465 | 9.74 | 468 | 9.68 | |||||||
| 352.nab | 44 | 683 | 5.69 | 684 | 5.69 | 682 | 5.71 | |||||||
| 357.bt331 | 44 | 526 | 9.01 | 522 | 9.07 | 523 | 9.06 | |||||||
| 358.botsalgn | 44 | 936 | 4.65 | 936 | 4.65 | 938 | 4.64 | |||||||
| 359.botsspar | 44 | 1052 | 4.99 | 1042 | 5.04 | 1058 | 4.96 | |||||||
| 360.ilbdc | 44 | 615 | 5.79 | 629 | 5.66 | 614 | 5.80 | |||||||
| 362.fma3d | 44 | 720 | 5.27 | 712 | 5.34 | 707 | 5.38 | |||||||
| 363.swim | 44 | 561 | 8.07 | 560 | 8.09 | 559 | 8.10 | |||||||
| 367.imagick | 44 | 997 | 7.05 | 987 | 7.12 | 991 | 7.10 | |||||||
| 370.mgrid331 | 44 | 638 | 6.93 | 640 | 6.91 | 635 | 6.96 | |||||||
| 371.applu331 | 44 | 900 | 6.73 | 938 | 6.46 | 909 | 6.67 | |||||||
| 372.smithwa | 44 | 752 | 7.12 | 753 | 7.12 | 754 | 7.10 | |||||||
| 376.kdtree | 44 | 1044 | 4.31 | 1063 | 4.23 | 870 | 5.18 | |||||||
Platform Notes
Sysinfo program /home/huberth/SPEC_OMP2012v1.1/Docs/sysinfo Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5) running on r01c2b04 Fri Sep 14 16:57:00 2018 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/omp2012/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2680 v3 @ 2.50GHz 2 "physical id"s (chips) 48 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 12 siblings : 24 physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13 cache size : 30720 KB From /proc/meminfo MemTotal: 131612388 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d CentOS Linux release 7.5.1804 (Core) From /etc/*release* /etc/*version* centos-release: CentOS Linux release 7.5.1804 (Core) centos-release-upstream: Derived from Red Hat Enterprise Linux 7.5 (Source) os-release: NAME="CentOS Linux" VERSION="7 (Core)" ID="centos" ID_LIKE="rhel fedora" VERSION_ID="7" PRETTY_NAME="CentOS Linux 7 (Core)" ANSI_COLOR="0;31" CPE_NAME="cpe:/o:centos:centos:7" redhat-release: CentOS Linux release 7.5.1804 (Core) system-release: CentOS Linux release 7.5.1804 (Core) system-release-cpe: cpe:/o:centos:centos:7 uname -a: Linux r01c2b04 3.10.0-862.11.6.el7.x86_64 #1 SMP Tue Aug 14 21:49:04 UTC 2018 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Sep 14 16:12 SPEC is set to: /home/huberth/SPEC_OMP2012v1.1 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/centos_r01c2b04-root xfs 926G 43G 884G 5% / Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. (End of data from sysinfo program)
General Notes
Environment Variables:
OMP_STACKSIZE=1G
ulimit -s unlimited
KMP_AFFINITY=compact
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
Base Portability Flags
| 350.md: | -Mfree |
| 357.bt331: | -mcmodel=medium |
| 363.swim: | -mcmodel=medium |
