SPEC® OMPG2012 Result

Copyright 2012-2017 Standard Performance Evaluation Corporation

Cisco Systems

SPECompG_base2012 = 23.5

Cisco UCS C240 M5 (Intel Xeon Platinum 8180,
2.50 GHz)

SPECompG_peak2012 = Not Run

OMP2012 license: 9019 Test date: Oct-2017
Test sponsor: Cisco Systems Hardware Availability: Jul-2017
Tested by: Cisco Systems Software Availability: Sep-2017

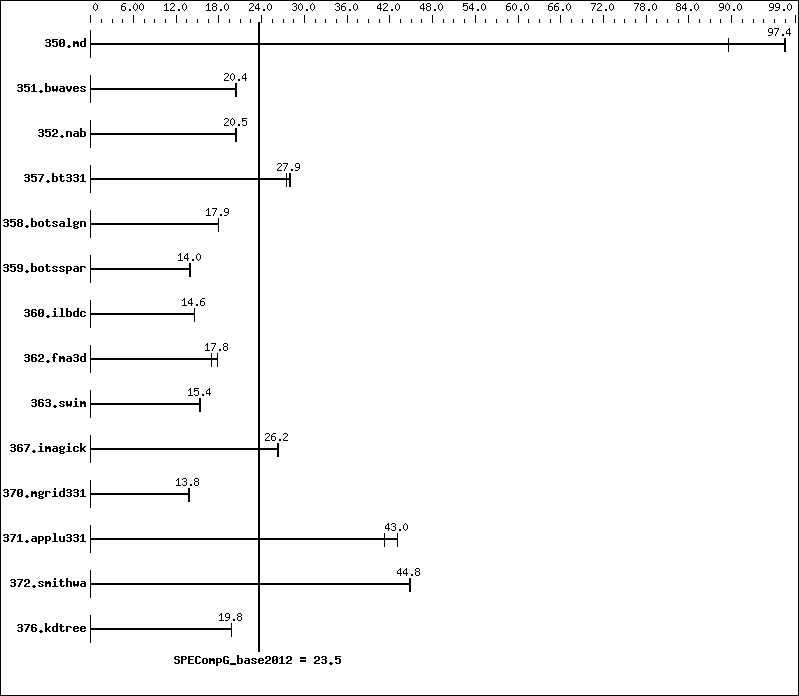

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8180
CPU Characteristics: Intel Turbo Boost Technology up to 3.80 GHz
CPU MHz: 2500
CPU MHz Maximum: 3800
FPU: Integrated
CPU(s) enabled: 56 cores, 2 chips, 28 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 38.5 MB I+D on chip per chip
Other Cache: None
Memory: 384 GB (24 x 16 GB 2Rx4 PC4-2666V-R)
Disk Subsystem: 1 X 800 GB SSD SAS
Other Hardware: None
Base Threads Run: 112
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: SUSE Linux Enterprise Server 12 SP2 (x86_64)
Compiler: C/C++/Fortran: Version 18.0.0.128 of Intel
Composer for Linux Build 20170811
Auto Parallel: No
File System: xfs
System State: Run Level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 112 51.7  89.5  47.5  97.4  47.4  97.6
351.bwaves 112 223    20.3  222    20.4  222    20.4
352.nab 112 192    20.3  190    20.5  190    20.5
357.bt331 112 172    27.5  170    27.9  169    28.1
358.botsalgn 112 243    17.9  243    17.9  243    17.9
359.botsspar 112 374    14.0  377    13.9  376    14.0
360.ilbdc 112 244    14.6  244    14.6  244    14.6
362.fma3d 112 214    17.8  213    17.9  223    17.0
363.swim 112 295    15.4  296    15.3  295    15.4
367.imagick 112 269    26.2  266    26.4  268    26.2
370.mgrid331 112 320    13.8  321    13.8  321    13.8
371.applu331 112 147    41.2  141    43.1  141    43.0
372.smithwa 112 120    44.8  120    44.8  120    44.7
376.kdtree 112 227    19.8  227    19.8  227    19.8

Platform Notes

 Sysinfo program /home/omp2012/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on linux-nsv2 Sun Oct  8 12:05:26 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8180 CPU @ 2.50GHz
       2 "physical id"s (chips)
       112 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 28
       siblings  : 56
       physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
    cache size : 39424 KB

 From /proc/meminfo
    MemTotal:       394865508 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    SUSE Linux Enterprise Server 12 SP2

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 2
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP2"
       VERSION_ID="12.2"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp2"

 uname -a:
    Linux linux-nsv2 4.4.21-69-default #1 SMP Tue Oct 25 10:58:20 UTC 2016
    (9464f67) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Oct 8 11:48

 SPEC is set to: /home/omp2012
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda3      xfs   517G  381G  137G  74% /home

 Additional information from dmidecode:
   BIOS Cisco Systems, Inc. C240M5.3.1.1a.0.0607170937 06/07/2017
   Memory:
    24x   16 GB
    24x 0xCE00 M393A2G40EB2-CTD 16 GB 2666 MHz 2 rank

 (End of data from sysinfo program)

General Notes

 ========================================================================
 BIOS settings notes:
   Transparent Huge Pages enabled with:
   echo always > /sys/kernel/mm/transparent_hugepage/enabled
 BIOS settings notes:
   Intel HyperThreading Technology set to Enabled
   CPU performance set to Enterprise
   Power Performance Tuning set to OS
   Sub Numa Clustering (SNC) set to Disabled
   IMC Interleaving set to Auto
 General OMP Library Settings
   ENV_KMP_LIBRARY=turnaround
   ENV_OMP_SCHEDULE=static
   ENV_KMP_BLOCKTIME=200
   ENV_KMP_STACKSIZE=702M
   ENV_OMP_DYNAMIC=FALSE
   ENV_OMP_NESTED=FALSE

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,1

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -qopenmp   -ipo    -xHost   -ansi-alias

C++ benchmarks:

 -O3   -qopenmp   -ipo    -xHost   -ansi-alias

Fortran benchmarks:

 -O3   -qopenmp   -ipo    -xHost   -align array64byte

The flags files that were used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic18.0-linux64.html,
http://www.spec.org/omp2012/flags/Cisco-Platform-Settings-V1.2-revH.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/omp2012/flags/Intel-ic18.0-linux64.xml,
http://www.spec.org/omp2012/flags/Cisco-Platform-Settings-V1.2-revH.xml.
