SPEC® OMPG2012 Result

Copyright 2012-2017 Standard Performance Evaluation Corporation

Cisco Systems

SPECompG_base2012 = 40.2

Cisco UCS C480 M5 (Intel Xeon Platinum 8180,
2.50 GHz)

SPECompG_peak2012 = Not Run

OMP2012 license: 9019 Test date: Oct-2017
Test sponsor: Cisco Systems Hardware Availability: Aug-2017
Tested by: Cisco Systems Software Availability: Sep-2017

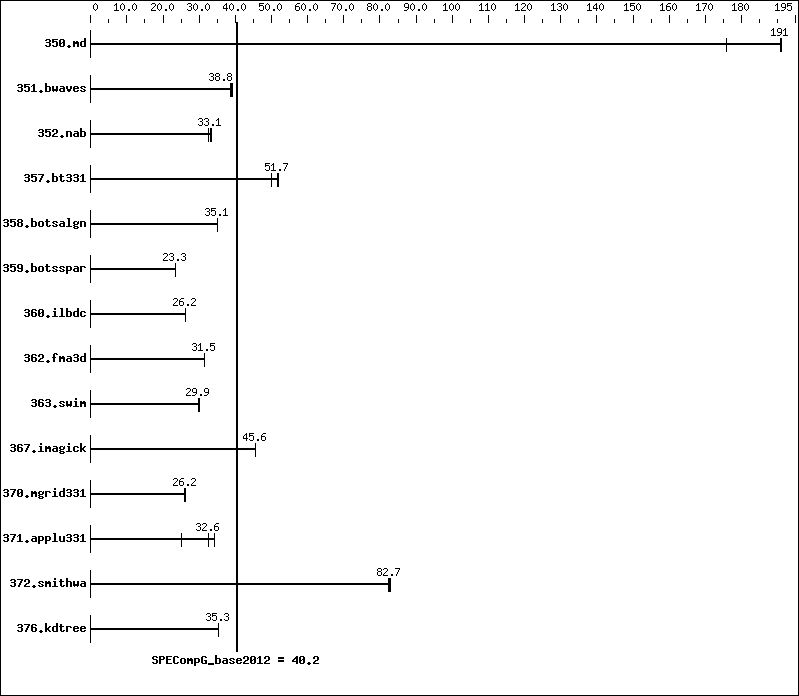

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8180
CPU Characteristics: Intel Turbo Boost Technology up to 3.80 GHz
CPU MHz: 2500
CPU MHz Maximum: 3800
FPU: Integrated
CPU(s) enabled: 112 cores, 4 chips, 28 cores/chip, 2 threads/core
CPU(s) orderable: 2,4 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 38.5 MB I+D on chip per chip
Other Cache: None
Memory: 768 GB (48 x 16 GB 2Rx4 PC4-2666V-R)
Disk Subsystem: 1 X 480 GB SSD SAS
Other Hardware: None
Base Threads Run: 224
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: SUSE Linux Enterprise Server 12 SP2 (x86_64)
Compiler: C/C++/Fortran: Version 18.0.0.128 of Intel
Composer for Linux Build 20170811
Auto Parallel: No
File System: xfs
System State: Run Level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 224 26.3  176    24.2  191    24.3  191
351.bwaves 224 116    39.1  117    38.8  117    38.7
352.nab 224 117    33.1  119    32.6  117    33.3
357.bt331 224 94.7  50.0  91.6  51.7  91.1  52.0
358.botsalgn 224 124    35.1  124    35.1  124    35.1
359.botsspar 224 225    23.4  225    23.3  225    23.3
360.ilbdc 224 135    26.3  136    26.2  136    26.2
362.fma3d 224 120    31.5  121    31.5  121    31.5
363.swim 224 152    29.8  151    30.0  151    29.9
367.imagick 224 154    45.6  154    45.7  154    45.6
370.mgrid331 224 169    26.2  171    25.9  169    26.2
371.applu331 224 242    25.0  186    32.6  178    34.1
372.smithwa 224 64.8  82.7  64.7  82.8  65.1  82.3
376.kdtree 224 128    35.3  128    35.2  127    35.3

Platform Notes

 Sysinfo program /home/omp2012/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on C480-SLES12 Fri Oct  6 16:58:05 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8180 CPU @ 2.50GHz
       4 "physical id"s (chips)
       224 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 28
       siblings  : 56
       physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 2: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 3: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
    cache size : 39424 KB

 From /proc/meminfo
    MemTotal:       790981324 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    SUSE Linux Enterprise Server 12 SP2

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 2
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP2"
       VERSION_ID="12.2"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp2"

 uname -a:
    Linux C480-SLES12 4.4.21-69-default #1 SMP Tue Oct 25 10:58:20 UTC 2016
    (9464f67) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Oct 5 13:19

 SPEC is set to: /home/omp2012
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda3      xfs   404G   79G  326G  20% /home

 Additional information from dmidecode:
   BIOS Cisco Systems, Inc. C480M5.3.1.0.272.0613172154 06/13/2017
   Memory:
    48x   16 GB
    48x 0xCE00 M393A2G40EB2-CTD 16 GB 2666 MHz 2 rank

 (End of data from sysinfo program)

General Notes

 ========================================================================
 BIOS settings notes:
   Transparent Huge Pages enabled with:
   echo always > /sys/kernel/mm/transparent_hugepage/enabled
 BIOS settings notes:
   Intel HyperThreading Technology set to Enabled
   CPU performance set to Enterprise
   Power Performance Tuning set to OS
   Sub Numa Clustering (SNC) set to Disabled
   IMC Interleaving set to Auto
 General OMP Library Settings
   ENV_KMP_LIBRARY=turnaround
   ENV_OMP_SCHEDULE=static
   ENV_KMP_BLOCKTIME=200
   ENV_KMP_STACKSIZE=16G
   ENV_OMP_DYNAMIC=FALSE
   ENV_OMP_NESTED=FALSE

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,1

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -qopenmp   -ipo    -xHost   -ansi-alias

C++ benchmarks:

 -O3   -qopenmp   -ipo    -xHost   -ansi-alias

Fortran benchmarks:

 -O3   -qopenmp   -ipo    -xHost   -align array64byte

The flags files that were used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic18.0-linux64.html,
http://www.spec.org/omp2012/flags/Cisco-Platform-Settings-V1.2-revH.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/omp2012/flags/Intel-ic18.0-linux64.xml,
http://www.spec.org/omp2012/flags/Cisco-Platform-Settings-V1.2-revH.xml.
