Cisco Systems |
SPECompG_base2012 = 23.1 |
|
Cisco UCS C240 M5 (Intel Xeon Platinum 8180, |
SPECompG_peak2012 = Not Run |
| OMP2012 license: | 9019 | Test date: | Jun-2017 |
|---|---|---|---|
| Test sponsor: | Cisco Systems | Hardware Availability: | Jul-2017 |
| Tested by: | Cisco Systems | Software Availability: | Sep-2017 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon Platinum 8180 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.80 GHz |
| CPU MHz: | 2500 |
| CPU MHz Maximum: | 3800 |
| FPU: | Integrated |
| CPU(s) enabled: | 56 cores, 2 chips, 28 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 Chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | 38.5 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 384 GB (24 x 16 GB 2Rx4 PC4-2666V-R) |
| Disk Subsystem: | 1 X 800 GB SSD SAS |
| Other Hardware: | None |
| Base Threads Run: | 112 |
| Minimum Peak Threads: | -- |
| Maximum Peak Threads: | -- |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 12 SP2 (x86_64) |
| Compiler: | C/C++/Fortran: Version 18.0.0.082 of Intel Composer Beta for Linux Build 20170510 |
| Auto Parallel: | No |
| File System: | xfs |
| System State: | Run Level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | None |

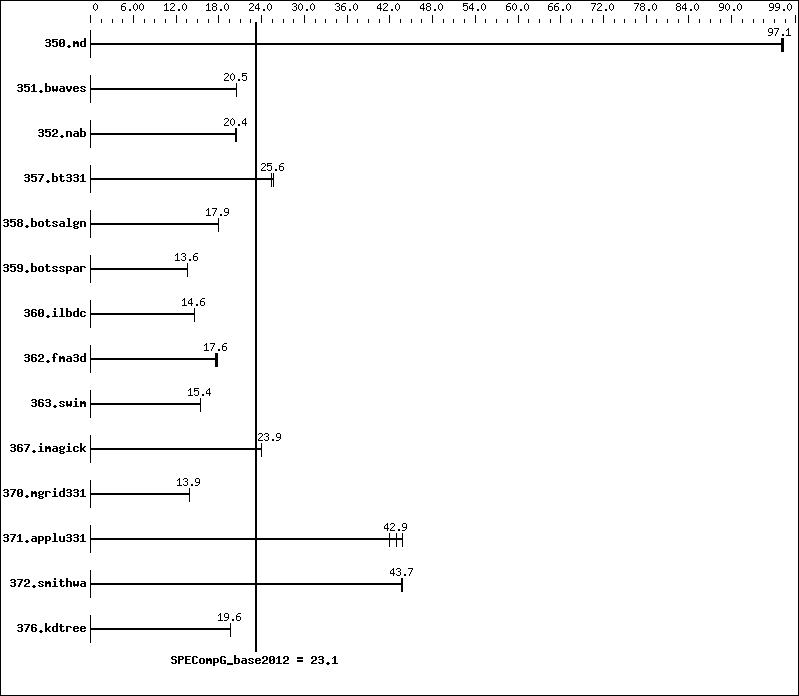

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 350.md | 112 | 47.7 | 97.0 | 47.6 | 97.2 | 47.7 | 97.1 | |||||||
| 351.bwaves | 112 | 221 | 20.5 | 222 | 20.4 | 221 | 20.5 | |||||||
| 352.nab | 112 | 191 | 20.4 | 190 | 20.4 | 191 | 20.4 | |||||||
| 357.bt331 | 112 | 185 | 25.7 | 185 | 25.6 | 187 | 25.4 | |||||||
| 358.botsalgn | 112 | 243 | 17.9 | 243 | 17.9 | 243 | 17.9 | |||||||
| 359.botsspar | 112 | 386 | 13.6 | 387 | 13.6 | 387 | 13.6 | |||||||
| 360.ilbdc | 112 | 245 | 14.6 | 245 | 14.6 | 245 | 14.5 | |||||||
| 362.fma3d | 112 | 213 | 17.8 | 215 | 17.6 | 218 | 17.5 | |||||||
| 363.swim | 112 | 294 | 15.4 | 294 | 15.4 | 294 | 15.4 | |||||||
| 367.imagick | 112 | 294 | 23.9 | 293 | 24.0 | 294 | 23.9 | |||||||
| 370.mgrid331 | 112 | 319 | 13.9 | 319 | 13.8 | 319 | 13.9 | |||||||
| 371.applu331 | 112 | 139 | 43.7 | 141 | 42.9 | 145 | 41.9 | |||||||
| 372.smithwa | 112 | 123 | 43.6 | 123 | 43.7 | 122 | 43.8 | |||||||
| 376.kdtree | 112 | 230 | 19.6 | 229 | 19.6 | 229 | 19.6 | |||||||
Platform Notes
Sysinfo program /opt/omp2012/Docs/sysinfo $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647 running on linux-0s5q Tue Jun 20 12:23:44 2017 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/omp2012/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) Platinum 8180 CPU @ 2.50GHz 2 "physical id"s (chips) 112 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 28 siblings : 56 physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24 25 26 27 28 29 30 physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24 25 26 27 28 29 30 cache size : 39424 KB From /proc/meminfo MemTotal: 394863296 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 12 (x86_64) VERSION = 12 PATCHLEVEL = 2 # This file is deprecated and will be removed in a future service pack or release. # Please check /etc/os-release for details about this release. os-release: NAME="SLES" VERSION="12-SP2" VERSION_ID="12.2" PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2" ID="sles" ANSI_COLOR="0;32" CPE_NAME="cpe:/o:suse:sles:12:sp2" uname -a: Linux linux-0s5q 4.4.21-69-default #1 SMP Tue Oct 25 10:58:20 UTC 2016 (9464f67) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jun 20 12:20 SPEC is set to: /opt/omp2012 Filesystem Type Size Used Avail Use% Mounted on /dev/sdb2 xfs 700G 40G 661G 6% / Additional information from dmidecode: BIOS Cisco Systems, Inc. C240M5.3.1.0.275.0519172339 05/19/2017 Memory: 24x 16 GB 24x 0xCE00 M393A2G40EB2-CTD 16 GB 2666 MHz 2 rank (End of data from sysinfo program)
General Notes
======================================================================== BIOS settings notes: Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled BIOS settings notes: Intel Turbo Boost Technology (Turbo) : Enabled CPU performance set to Enterprise Power Performance Tuning set to OS SNC set to Disabled IMC Interleaving set to Auto General OMP Library Settings ENV_KMP_LIBRARY=turnaround ENV_OMP_SCHEDULE=static ENV_KMP_BLOCKTIME=200 ENV_KMP_STACKSIZE=702M ENV_OMP_DYNAMIC=FALSE ENV_OMP_NESTED=FALSE ======================================================================== General base OMP Library Settings ENV_KMP_AFFINITY=compact,1 ========================================================================
Base Portability Flags
| 350.md: | -FR |
| 357.bt331: | -mcmodel=medium |
| 363.swim: | -mcmodel=medium |
| 367.imagick: | -std=c99 |
