SPEC® OMPG2012 Result

Copyright 2012-2017 Standard Performance Evaluation Corporation

Huawei

SPECompG_base2012 = 59.8

KunLun 9016
(384 core, 2.20 GHz, Intel Xeon E7-8890 v4)

SPECompG_peak2012 = 67.2
OMP2012 license: 27 Test date: May-2017
Test sponsor: Huawei Hardware Availability: Jun-2016
Tested by: Huawei Software Availability: Feb-2017

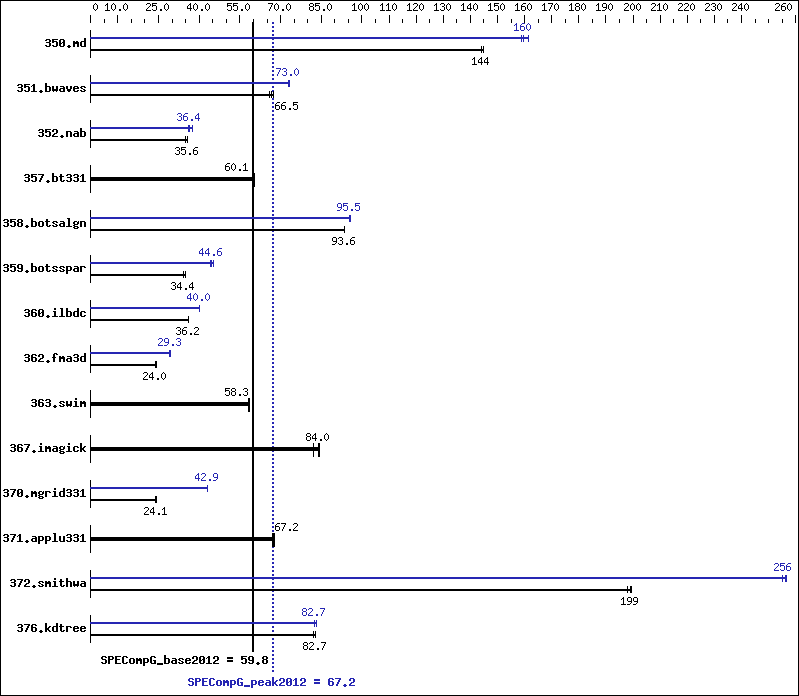

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7-8890 v4
CPU Characteristics: Intel Turbo Boost Technology up to 3.40 GHz
CPU MHz: 2200
CPU MHz Maximum: 3400
FPU: Integrated
CPU(s) enabled: 384 cores, 16 chips, 24 cores/chip, 2 threads/core
CPU(s) orderable: 4,8,16 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory: 2 TB (128 x 16 GB 2Rx4 PC4-2133P-R, running at
1600 MHz)
Disk Subsystem: 2 x 600 GB SAS, 10 K RPM
Other Hardware: None
Base Threads Run: 672
Minimum Peak Threads: 384
Maximum Peak Threads: 768
Software
Operating System: SUSE Linux Enterprise Server 12 (x86_64) SP2
Kernel 4.4.21-69-default
Compiler: C/C++/Fortran: Version 17.0.2.174 of Intel
Parallel Studio XE 2017
for Linux;
Auto Parallel: No
File System: btrfs
System State: run level 5
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 672 32.1  144    32.1  144    31.9  145    768 29.2  159    28.7  162    29.0  160
351.bwaves 672 68.9  65.8  68.1  66.5  67.2  67.4  384 62.0  73.0  61.8  73.3  62.2  72.8
352.nab 672 109    35.6  109    35.6  111    35.0  768 104    37.4  108    36.1  107    36.4
357.bt331 672 78.6  60.3  78.8  60.1  79.1  60.0  672 78.6  60.3  78.8  60.1  79.1  60.0
358.botsalgn 672 46.4  93.7  46.5  93.6  46.6  93.4  768 45.5  95.6  45.5  95.5  45.6  95.4
359.botsspar 672 153    34.3  150    35.0  153    34.4  384 116    45.3  118    44.6  119    44.1
360.ilbdc 672 98.4  36.2  98.3  36.2  98.3  36.2  768 88.7  40.1  89.1  40.0  89.0  40.0
362.fma3d 672 159    23.9  159    24.0  157    24.2  768 130    29.3  130    29.2  130    29.3
363.swim 672 77.7  58.3  77.6  58.4  78.1  58.0  672 77.7  58.3  77.6  58.4  78.1  58.0
367.imagick 672 85.6  82.1  83.7  84.0  83.2  84.5  672 85.6  82.1  83.7  84.0  83.2  84.5
370.mgrid331 672 183    24.1  183    24.1  184    24.0  512 103    42.9  103    42.9  103    42.9
371.applu331 672 89.4  67.8  90.1  67.2  90.3  67.1  672 89.4  67.8  90.1  67.2  90.3  67.1
372.smithwa 672 27.1  198    26.9  199    26.9  199    768 20.9  257    20.9  256    21.0  255
376.kdtree 672 54.7  82.3  54.4  82.7  54.4  82.8  768 54.1  83.2  54.4  82.7  54.5  82.6

Platform Notes

 Sysinfo program /omp2012/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on linux-ailn Fri May 19 17:03:24 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E7-8890 v4 @ 2.20GHz
       16 "physical id"s (chips)
       768 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 24
       siblings  : 48
       physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 2: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 3: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 4: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 5: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 6: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 7: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 8: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 9: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 10: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 11: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 12: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 13: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 14: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 15: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
    cache size : 61440 KB

 From /proc/meminfo
    MemTotal:       2112824644 kB
    HugePages_Total:   65536
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    SUSE Linux Enterprise Server 12 SP2

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 2
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP2"
       VERSION_ID="12.2"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp2"

 uname -a:
    Linux linux-ailn 4.4.21-69-default #1 SMP Tue Oct 25 10:58:20 UTC 2016
    (9464f67) x86_64 x86_64 x86_64 GNU/Linux

 run-level 5 May 18 01:49

 SPEC is set to: /omp2012
    Filesystem     Type   Size  Used Avail Use% Mounted on
    /dev/sda3      btrfs  1.1T  364G  729G  34% /

 Additional information from dmidecode:
   BIOS American Megatrends Inc. BLXSV207 04/17/2017
   Memory:
    128x Hynix HMA82GR7AFR8N-UH 16 GB 1600 MHz 2 rank
    256x NO DIMM NO DIMM

 (End of data from sysinfo program)

General Notes

 ========================================================================
 Power profile set with:
 cpupower -c all frequency-set -g performance

 System settings notes:
 Intel Turbo Boost Technology (Turbo)  : Enabled
 Memory RAS Configuration set to Maximum Performance

 ========================================================================
 General Notes and Enviroment variables
   ENV_KMP_AFFINITY=compact,1
   ENV_KMP_BLOCKTIME=infinite
   ENV_KMP_DETERMINISTIC_REDUCTION=1
   ENV_OMP_DYNAMIC=FALSE
   ENV_KMP_LIBRARY=turnaround
   ENV_KMP_SCHEDULE=static,balanced
   ENV_KMP_STACKSIZE=512M
   ENV_OMP_NESTED=FALSE
   ENV_OMP_NUM_THREADS=672

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 General peak OMP Library Settings
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 Per benchmark peak OMP Library Settings

 ========================================================================
 351.bwaves:peak:
   ENV_KMP_AFFINITY=compact,1
   ENV_OMP_SCHEDULE=static,1

 ========================================================================
 359.botsspar:peak:
   ENV_KMP_AFFINITY=compact,1
   ENV_OMP_SCHEDULE=guided

 ========================================================================
 362.fma3d:peak:
   ENV_OMP_SCHEDULE=static,1
 ========================================================================
 363.swim:peak:
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 372.smithwa:peak:
   ENV_KMP_AFFINITY=compact,1

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -ansi-alias   -shared-intel

C++ benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -ansi-alias   -shared-intel

Fortran benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -align array64byte

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Peak Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Peak Optimization Flags

C benchmarks:

352.nab:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-malloc-options=1   -opt-calloc   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -ansi-alias
358.botsalgn:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -ansi-alias
359.botsspar:  Same as 358.botsalgn
367.imagick:  basepeak = yes
372.smithwa:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-streaming-stores always   -opt-malloc-options=1   -ansi-alias

C++ benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -ansi-alias

Fortran benchmarks:

350.md:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-malloc-options=1   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -align array64byte
351.bwaves:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -align array64byte
357.bt331:  basepeak = yes
360.ilbdc:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -align array64byte
362.fma3d:  Same as 360.ilbdc
363.swim:  basepeak = yes
370.mgrid331:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-malloc-options=3   -fp-model strict
371.applu331:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20140219.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20140219.xml.

SPEC is a registered trademark of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2012-2017 Standard Performance Evaluation Corporation
Tested with SPEC OMP2012 v1.0.
Report generated on Wed Jun 7 17:12:05 2017 by SPEC OMP2012 HTML formatter v541.
Originally published on 7 June 2017.
