SPEC® OMPG2012 Result

Copyright 2012-2016 Standard Performance Evaluation Corporation

Colfax International (Test Sponsor: Indiana University)

SPECompG_base2012 = 8.25

Intel Xeon Phi 7210, 1.30GHz,
SMT on, Turbo off, MCDRAM Cache

SPECompG_peak2012 = Not Run

OMP2012 license: 3440A Test date: Oct-2016
Test sponsor: Indiana University Hardware Availability: Aug-2016
Tested by: Indiana University Software Availability: Apr-2016

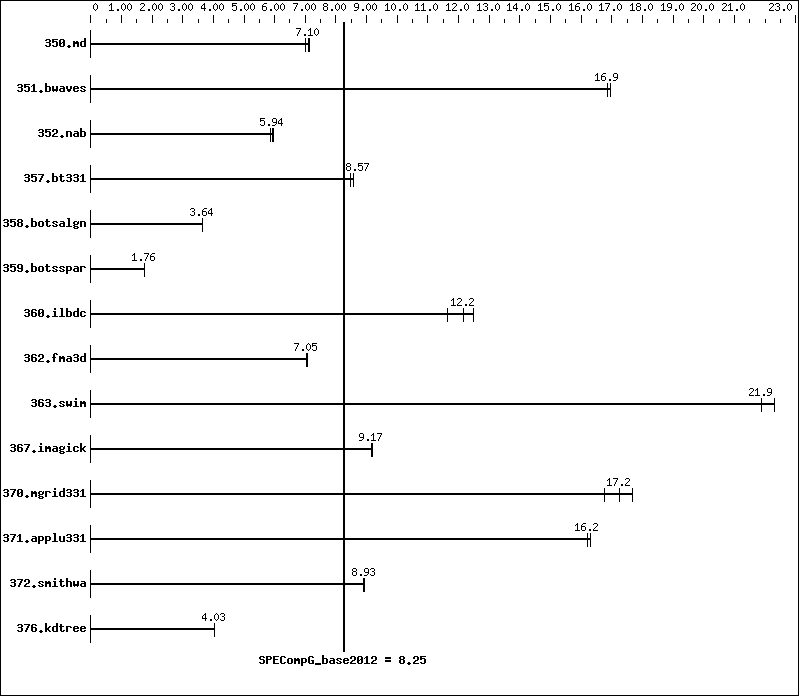

Benchmark results graph
Hardware
CPU Name: Intel Xeon Phi 7210
CPU Characteristics: Intel Turbo Boost Technology off,
Simultaneous Multithreading (SMT) on
CPU MHz: 1300
CPU MHz Maximum: 1500
FPU: Integrated
CPU(s) enabled: 64 cores, 1 chip, 64 cores/chip, 4 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per two cores
L3 Cache: None
Other Cache: None
Memory: 96 GB (6 x 16 GB 2Rx8 PC4-2400T-REB-11, ECC)
Disk Subsystem: Intel S3510 SSD 800GB, SATA3
Other Hardware: None
Base Threads Run: 128
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: CentOS Linux release 7.2.1511
3.10.0-327.13.1.el7.xppsl_1.3.3.151.x86_64
Compiler: C/C++/Fortran: Version 16.0.3.210 of Intel
Composer XE 2016 for Linux Build 20160415
Auto Parallel: No
File System: ext4
System State: Runlevel 3 (multi-user with networking)
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 128 660   7.02  649   7.14  652   7.10
351.bwaves 128 269   16.9   267   17.0   268   16.9
352.nab 128 664   5.86  654   5.95  654   5.94
357.bt331 128 559   8.47  553   8.58  553   8.57
358.botsalgn 128 1196   3.64  1196   3.64  1196   3.64
359.botsspar 128 2988   1.76  2995   1.75  2989   1.76
360.ilbdc 128 285   12.5   293   12.2   306   11.6
362.fma3d 128 539   7.04  538   7.06  539   7.05
363.swim 128 207   21.9   207   21.9   203   22.3
367.imagick 128 767   9.17  767   9.17  765   9.19
370.mgrid331 128 250   17.7   256   17.2   264   16.8
371.applu331 128 372   16.3   374   16.2   374   16.2
372.smithwa 128 600   8.93  602   8.91  600   8.93
376.kdtree 128 1114   4.04  1117   4.03  1115   4.03

Platform Notes

 Sysinfo program /home/lijunj/SPEC/omp2012-1.1-run/Docs/sysinfo
 Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5)
 running on knl1.uits.indiana.edu Thu Oct  6 00:24:30 2016

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon Phi(TM) CPU 7210 @ 1.30GHz
       1 "physical id"s (chips)
       256 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 64
       siblings  : 256
       physical 0: cores 0 1 2 3 6 7 10 11 12 13 14 15 18 19 20 21 22 23 24 25 26
       27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51
       52 53 56 57 58 59 60 61 62 63 64 65 68 69 70 71 72 73
    cache size : 1024 KB

 From /proc/meminfo
    MemTotal:       98679320 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    CentOS Linux release 7.2.1511 (Core)

 From /etc/*release* /etc/*version*
    centos-release: CentOS Linux release 7.2.1511 (Core)
    centos-release-upstream: Derived from Red Hat Enterprise Linux 7.2 (Source)
    os-release:
       NAME="CentOS Linux"
       VERSION="7 (Core)"
       ID="centos"
       ID_LIKE="rhel fedora"
       VERSION_ID="7"
       PRETTY_NAME="CentOS Linux 7 (Core)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:centos:centos:7"
    redhat-release: CentOS Linux release 7.2.1511 (Core)
    system-release: CentOS Linux release 7.2.1511 (Core)
    system-release-cpe: cpe:/o:centos:centos:7

 uname -a:
    Linux knl1.uits.indiana.edu 3.10.0-327.13.1.el7.xppsl_1.3.3.151.x86_64 #1 SMP
    Fri Jun 10 15:04:35 UTC 2016 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Oct 5 12:52

 SPEC is set to: /home/lijunj/SPEC/omp2012-1.1-run
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda3      ext4  713G   77G  601G  12% /

 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode'

 (End of data from sysinfo program)

General Notes


 BIOS settings:
   Intel Simultaneous Multithreading (SMT): on
   Intel Turbo Boost Technology (Turbo): off
   Cluster Mode: quadrant
   Memory Mode: cache

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -free
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -ansi-alias   -no-prec-div   -qopenmp   -ipo   -xMIC-AVX512   -fp-model fast=2

C++ benchmarks:

 -O3   -ansi-alias   -no-prec-div   -qopenmp   -ipo   -xMIC-AVX512   -fp-model fast=2

Fortran benchmarks:

 -O3   -no-prec-div   -qopenmp   -ipo   -xMIC-AVX512   -fp-model fast=2

The flags files that were used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic16.0-linux64.html,
http://www.spec.org/omp2012/flags/knl.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/omp2012/flags/Intel-ic16.0-linux64.xml,
http://www.spec.org/omp2012/flags/knl.xml.
