SPEC® OMPG2012 Result

Copyright 2012-2016 Standard Performance Evaluation Corporation

SGI

SPECompG_base2012 = 80.1

SGI UV 300 (Intel Xeon E7-8867 v4, 2.40 GHz)

SPECompG_peak2012 = 84.2

OMP2012 license: 14 Test date: May-2016
Test sponsor: SGI Hardware Availability: Jun-2016
Tested by: SGI Software Availability: Apr-2016

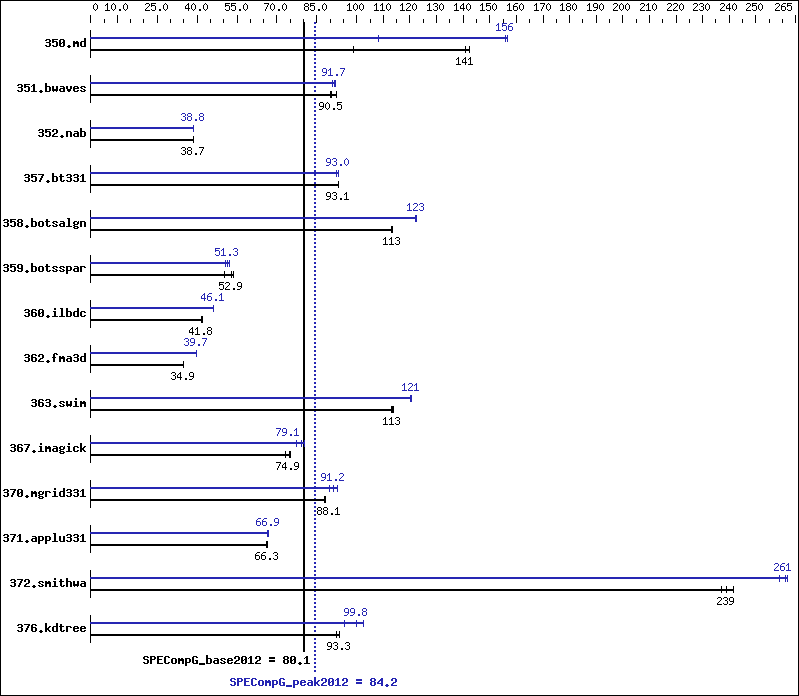

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7-8867 v4
CPU Characteristics: Intel Turbo Boost Technology up to 3.30 GHz
CPU MHz: 2400
CPU MHz Maximum: 3300
FPU: Integrated
CPU(s) enabled: 576 cores, 32 chips, 18 cores/chip
CPU(s) orderable: 4-32 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory: 8 TB (512 x 16 GB 2Rx4 PC4-2133P-R,
running at 1600 MHz)
Disk Subsystem: 1 x 400 GB SSD (Intel SSD 3500 Series,
SATA II)
Other Hardware: None
Base Threads Run: 513
Minimum Peak Threads: 512
Maximum Peak Threads: 576
Software
Operating System: SUSE Linux Enterprise Server 12 (x86_64) SP1
Kernel 3.12.57-60.35-default
Compiler: C/C++/Fortran: Version 16.0.1.150 of Intel
Composer XE for Linux, Build 20151021
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: SGI Accelerate 1.12
(Build 714r28.sles12sp1-1604201900),
SGI Foundation Software 2.14
(Build 714r28.sles12sp1-1604201900)

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 513 32.9  141    46.9  98.8  32.5  142    576 42.9  108    29.5  157    29.7  156
351.bwaves 513 50.1  90.5  50.2  90.2  49.1  92.2  517 49.8  90.9  49.3  91.9  49.4  91.7
352.nab 513 101    38.7  101    38.7  101    38.6  520 101    38.7  100    38.8  100    38.8
357.bt331 513 51.0  93.0  50.9  93.1  50.8  93.3  531 50.9  93.1  51.0  93.0  51.3  92.4
358.botsalgn 513 38.4  113    38.4  113    38.5  113    576 35.5  123    35.5  123    35.6  122
359.botsspar 513 97.9  53.6  99.2  52.9  105    50.2  567 104    50.5  100    52.3  102    51.3
360.ilbdc 513 85.2  41.8  85.2  41.8  85.1  41.8  576 77.2  46.1  77.3  46.1  77.2  46.1
362.fma3d 513 109    34.9  109    34.9  109    34.9  567 95.9  39.6  95.7  39.7  95.7  39.7
363.swim 513 39.9  113    40.1  113    39.9  114    567 37.5  121    37.6  120    37.6  121
367.imagick 513 93.7  75.0  93.9  74.9  95.8  73.4  576 88.8  79.1  91.0  77.3  87.5  80.3
370.mgrid331 513 50.1  88.2  50.2  88.1  50.4  87.8  512 48.5  91.2  47.7  92.6  49.2  89.8
371.applu331 513 91.5  66.2  91.3  66.4  91.4  66.3  531 91.0  66.6  90.6  66.9  90.5  67.0
372.smithwa 513 22.2  242    22.6  237    22.4  239    576 20.5  261    20.7  259    20.5  262
376.kdtree 513 48.2  93.3  48.1  93.6  48.8  92.2  576 47.2  95.4  43.9  103    45.1  99.8

Submit Notes

The config file option 'submit' was used.
For all benchmarks threads were bound to cores using
the following submit command:
    dplace -x2 $command
This binds threads in order of creation, beginning
with the master thread on logical cpu 0, the first slave
thread on logical cpu 1, and so on.  The -x2 flag instructs
dplace to skip placement of the lightweight OpenMP monitor
thread, which is created prior to the slave threads.

Operating System Notes

Transparent Hugepages :
    Transparent Hugepages are disabled by
    echo never > /sys/kernel/mm/transparent_hugepage/enabled

Software Environment:
    export KMP_AFFINITY=disabled
    export KMP_STACKSIZE=200M
    export KMP_SCHEDULE=static,balanced
    export OMP_DYNAMIC=FALSE
    ulimit -s unlimited

Platform Notes

Intel Hyperthreading set to Disabled

General Notes

372.smithwa (peak): "redundant" src.alt was used.

372.smithwa (base): "redundant" src.alt was used.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -free
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O2   -xCORE-AVX2   -ipo1   -openmp   -ansi-alias   -mcmodel=medium   -shared-intel

C++ benchmarks:

 -O2   -xCORE-AVX2   -ipo1   -openmp   -ansi-alias   -mcmodel=medium   -shared-intel

Fortran benchmarks:

 -O2   -xCORE-AVX2   -ipo1   -openmp   -mcmodel=medium   -shared-intel

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Peak Portability Flags

350.md:  -free
367.imagick:  -std=c99

Peak Optimization Flags

C benchmarks:

 -O2   -xCORE-AVX2   -ipo1   -openmp   -ansi-alias   -mcmodel=medium   -shared-intel

C++ benchmarks:

 -O2   -xCORE-AVX2   -ipo1   -openmp   -ansi-alias   -mcmodel=medium   -shared-intel

Fortran benchmarks:

 -O2   -xCORE-AVX2   -ipo1   -openmp   -mcmodel=medium   -shared-intel

The flags files that were used to format this result can be browsed at
http://www.spec.org/omp2012/flags/SGI-OMP2012-ic16.html,
http://www.spec.org/omp2012/flags/SGI-UV300-RevB.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/omp2012/flags/SGI-OMP2012-ic16.xml,
http://www.spec.org/omp2012/flags/SGI-UV300-RevB.xml.
