SPEC® OMPG2012 Result

Copyright 2012-2014 Standard Performance Evaluation Corporation

Intel

SPECompG_base2012 = 4.18

Intel G29051-202

SPECompG_peak2012 = Not Run

OMP2012 license: 13 Test date: Feb-2013
Test sponsor: Intel Hardware Availability: Mar-2012
Tested by: Intel Software Availability: Aug-2012

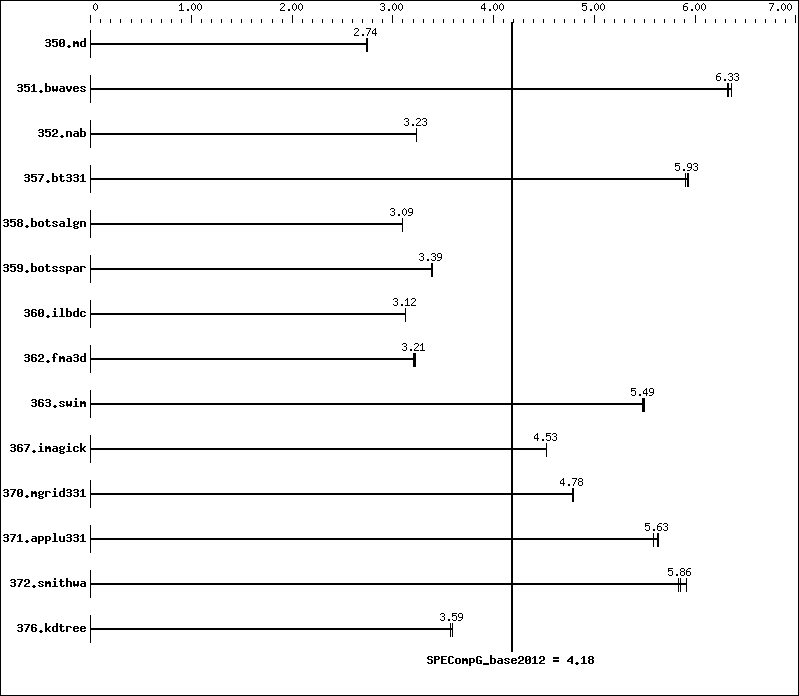

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2670
CPU Characteristics:
CPU MHz: 2600
CPU MHz Maximum: 3300
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory: 64 GB (8 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: Panasas ActiveStor 3050 Fileserver 64 disks,
250GB/disk, 16TB total, 4 Shelves connected via
1Gbps Ethernet
Other Hardware: --
Base Threads Run: 16
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: Red Hat Enterprise Linux Server release
6.1(Santiago)
Compiler: C/C++/Fortran: Version 13.0.0.079 of Intel
Composer XE for Linux Build 20120731
Auto Parallel: No
File System: Linux ext3
System State: Default
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 16 1693   2.73  1684   2.75  1691   2.74
351.bwaves 16 716   6.33  716   6.33  712   6.36
352.nab 16 1204   3.23  1204   3.23  1203   3.23
357.bt331 16 800   5.93  802   5.91  798   5.94
358.botsalgn 16 1406   3.09  1406   3.09  1405   3.10
359.botsspar 16 1551   3.39  1551   3.38  1549   3.39
360.ilbdc 16 1140   3.12  1141   3.12  1140   3.12
362.fma3d 16 1183   3.21  1186   3.21  1177   3.23
363.swim 16 825   5.49  826   5.48  824   5.50
367.imagick 16 1555   4.52  1552   4.53  1553   4.53
370.mgrid331 16 924   4.78  925   4.78  923   4.79
371.applu331 16 1076   5.63  1074   5.64  1084   5.59
372.smithwa 16 906   5.92  915   5.86  918   5.84
376.kdtree 16 1259   3.57  1253   3.59  1252   3.59

Platform Notes

 Sysinfo program /panfs/panfs2/home2/aknyaze1/OMP2012/1.0/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on esg326 Fri Feb 15 21:57:34 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2670 0 @ 2.60GHz
       2 "physical id"s (chips)
       32 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 8
       siblings  : 16
       physical 0: cores 0 1 2 3 4 5 6 7
       physical 1: cores 0 1 2 3 4 5 6 7
    cache size : 20480 KB

 From /proc/meminfo
    MemTotal:       66055220 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.1 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.1 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux esg326 2.6.32-131.0.15.el6.x86_64.crt.1 #3 SMP Fri May 20 16:57:43 PDT
    2011 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Feb 14 10:15

 SPEC is set to: /panfs/panfs2/home2/aknyaze1/OMP2012/1.0
    Filesystem    Type    Size  Used Avail Use% Mounted on
    panfs://36.107.212.1/home2
                 panfs     14T  9.0T  4.7T  66% /panfs/panfs2/home2

 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode'

 (End of data from sysinfo program)

General Notes

 ========================================================================
 BIOS settings notes:
   Intel Turbo Boost Technology (Turbo)  : Enabled

 ========================================================================
 General Notes and Enviroment variables
   ENV_KMP_LIBRARY=turnaround
   ENV_KMP_STACKSIZE=256M
   ENV_KMP_BLOCKTIME=infinite
   ENV_OMP_DYNAMIC=FALSE
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 base:gross:
   COPTIMIZE = -O3 -xAVX  -ipo1 -openmp -ansi-alias -shared-intel
   CXXOPTIMIZE = -O3 -xAVX -ipo1  -openmp -shared-intel
   FOPTIMIZE = -O3 -xAVX -ipo1  -openmp -shared-intel

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -free
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -xAVX   -ipo1   -openmp   -ansi-alias   -shared-intel

C++ benchmarks:

 -O3   -xAVX   -ipo1   -openmp   -shared-intel

Fortran benchmarks:

 -O3   -xAVX   -ipo1   -openmp   -shared-intel

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20130306.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20130306.xml.
