Intel |
SPECompG_base2012 = 2.68 |
|
SR1600UR |
SPECompG_peak2012 = Not Run |
| OMP2012 license: | 13 | Test date: | Oct-2012 |
|---|---|---|---|
| Test sponsor: | Intel | Hardware Availability: | Mar-2010 |
| Tested by: | Intel | Software Availability: | Aug-2012 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5670 |
| CPU Characteristics: | |
| CPU MHz: | 2930 |
| CPU MHz Maximum: | 2930 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1-2 Chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (6 x 8 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | Panasas ActiveStor 3050 Fileserver 64 disks, 250GB/disk, 16TB total, 4 Shelves connected via 1Gbps Ethernet |
| Other Hardware: | -- |
| Base Threads Run: | 24 |
| Minimum Peak Threads: | -- |
| Maximum Peak Threads: | -- |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.1 (Santiago) |
| Compiler: | C/C++: Version 13.0.0.079 of Intel Composer XE for Linux Build 20120731 Fortran: Version 13.0.0.079 of Intel Composer XE for Linux Build 20120731 |
| Auto Parallel: | No |
| File System: | Linux ext3 |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | None |

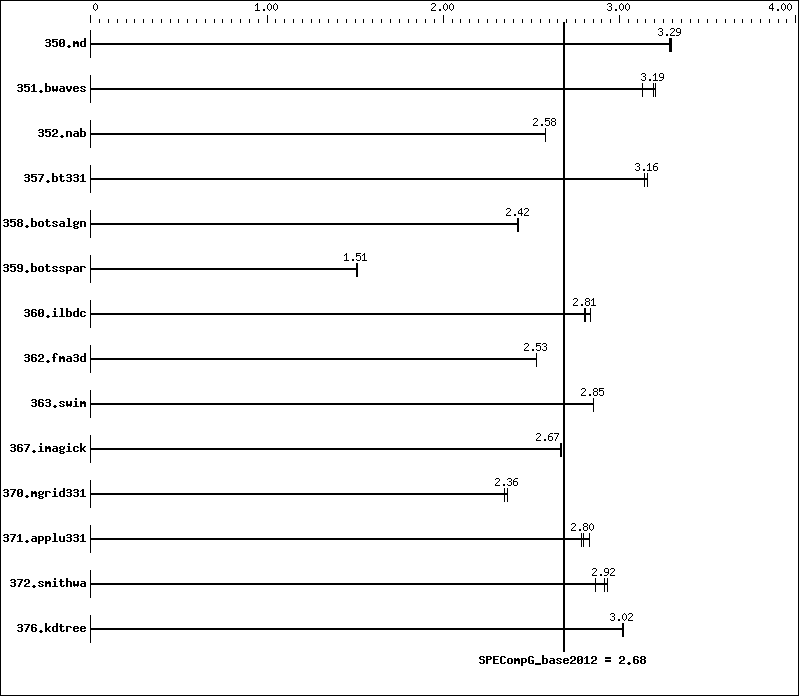

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 350.md | 24 | 1409 | 3.29 | 1406 | 3.29 | 1406 | 3.29 | |||||||
| 351.bwaves | 24 | 1414 | 3.20 | 1448 | 3.13 | 1419 | 3.19 | |||||||
| 352.nab | 24 | 1507 | 2.58 | 1507 | 2.58 | 1507 | 2.58 | |||||||
| 357.bt331 | 24 | 1500 | 3.16 | 1508 | 3.14 | 1501 | 3.16 | |||||||
| 358.botsalgn | 24 | 1794 | 2.42 | 1795 | 2.42 | 1794 | 2.42 | |||||||
| 359.botsspar | 24 | 3478 | 1.51 | 3465 | 1.51 | 3477 | 1.51 | |||||||
| 360.ilbdc | 24 | 1270 | 2.80 | 1267 | 2.81 | 1257 | 2.83 | |||||||
| 362.fma3d | 24 | 1502 | 2.53 | 1501 | 2.53 | 1502 | 2.53 | |||||||
| 363.swim | 24 | 1589 | 2.85 | 1590 | 2.85 | 1589 | 2.85 | |||||||
| 367.imagick | 24 | 2630 | 2.67 | 2633 | 2.67 | 2637 | 2.67 | |||||||
| 370.mgrid331 | 24 | 1871 | 2.36 | 1871 | 2.36 | 1883 | 2.35 | |||||||
| 371.applu331 | 24 | 2141 | 2.83 | 2178 | 2.78 | 2166 | 2.80 | |||||||
| 372.smithwa | 24 | 1827 | 2.93 | 1838 | 2.92 | 1871 | 2.86 | |||||||
| 376.kdtree | 24 | 1488 | 3.02 | 1491 | 3.02 | 1491 | 3.02 | |||||||
Platform Notes
Sysinfo program /panfs/panfs2/home2/aknyaze1/OMP2012/K21/Docs/sysinfo $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647 running on en340 Wed Oct 10 02:31:52 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/omp2012/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU X5670 @ 2.93GHz 2 "physical id"s (chips) 24 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 8 9 10 physical 1: cores 0 1 2 8 9 10 cache size : 12288 KB From /proc/meminfo MemTotal: 49498196 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.1 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.1 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux en340 2.6.32-131.0.15.el6.x86_64.crt.1 #3 SMP Fri May 20 16:57:43 PDT 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Oct 8 10:21 SPEC is set to: /panfs/panfs2/home2/aknyaze1/OMP2012/K21 Filesystem Type Size Used Avail Use% Mounted on panfs://36.107.212.1/home2 panfs 14T 11T 3.4T 76% /panfs/panfs2/home2 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode' (End of data from sysinfo program)
General Notes
======================================================================== BIOS settings notes: Intel Turbo Boost Technology (Turbo) : Disabled ======================================================================== General Notes and Environment variables export KMP_LIBRARY=turnaround export KMP_STACKSIZE=31M export KMP_BLOCKTIME=infinite export OMP_DYNAMIC=FALSE ======================================================================== gross: export KMP_AFFINITY=compact,0
Base Portability Flags
| 350.md: | -FR |
| 357.bt331: | -mcmodel=medium |
| 363.swim: | -mcmodel=medium |
| 367.imagick: | -std=c99 |
