SPEC® MPIL2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Lenovo Global Technology

ThinkSystem SR860 V2
(Intel Xeon Platinum 8380H CPU, 2.90 GHz)

MPI2007 license: 28 Test date: Aug-2020
Test sponsor: Lenovo Global Technology Hardware Availability: Oct-2020
Tested by: Lenovo Global Technology Software Availability: Oct-2020

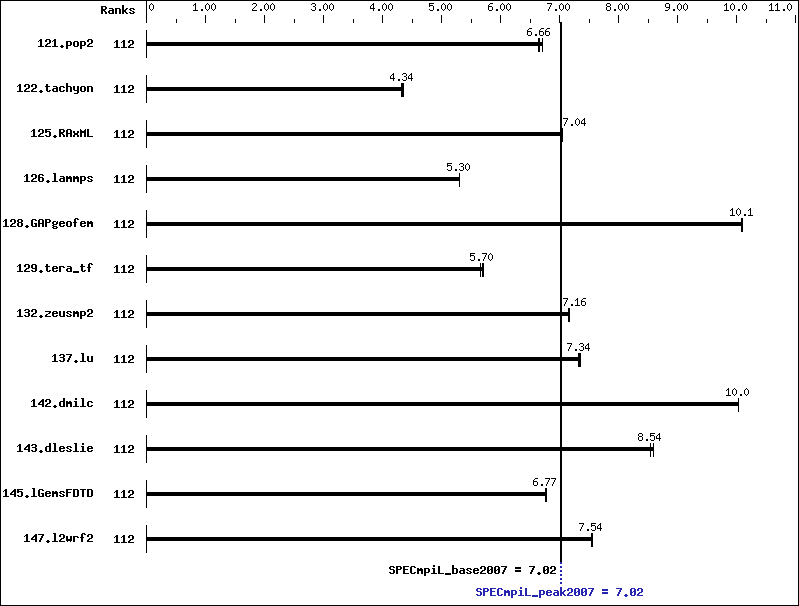

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
121.pop2 112 584 6.66 585 6.65 581 6.70 112 584 6.66 585 6.65 581 6.70
122.tachyon 112 449 4.33 447 4.34 447 4.35 112 449 4.33 447 4.34 447 4.35
125.RAxML 112 415 7.04 415 7.04 414 7.05 112 415 7.04 415 7.04 414 7.05
126.lammps 112 464 5.30 464 5.30 464 5.30 112 464 5.30 464 5.30 464 5.30
128.GAPgeofem 112 587 10.1  588 10.1  588 10.1  112 587 10.1  588 10.1  588 10.1
129.tera_tf 112 193 5.70 194 5.67 193 5.70 112 193 5.70 194 5.67 193 5.70
132.zeusmp2 112 296 7.16 296 7.16 296 7.15 112 296 7.16 296 7.16 296 7.15
137.lu 112 573 7.34 574 7.33 572 7.35 112 573 7.34 574 7.33 572 7.35
142.dmilc 112 367 10.0  367 10.0  367 10.0  112 367 10.0  367 10.0  367 10.0
143.dleslie 112 363 8.53 361 8.58 363 8.54 112 363 8.53 361 8.58 363 8.54
145.lGemsFDTD 112 652 6.77 652 6.76 651 6.77 112 652 6.77 652 6.76 651 6.77
147.l2wrf2 112 1087 7.54 1086 7.55 1089 7.54 112 1087 7.54 1086 7.55 1089 7.54
Hardware Summary
Type of System: Homogeneous
Compute Node: ThinkSystem SR860 V2
Interconnect: Intel Omni-Path
File Server Node: NFS
Total Compute Nodes: 1
Total Chips: 4
Total Cores: 112
Total Threads: 112
Total Memory: 1536 GB
Base Ranks Run: 112
Minimum Peak Ranks: 112
Maximum Peak Ranks: 112
Software Summary
C Compiler: Intel C++ Compiler 2020 Update 1 for Linux
Version 19.1.1.217 Build 20200306
C++ Compiler: Intel C++ Compiler 2020 Update 1 for Linux
Version 19.1.1.217 Build 20200306
Fortran Compiler: Intel Fortran Compiler 2020 Update 1 for Linux
Version 19.1.1.217 Build 20200306
Base Pointers: 64-bit
Peak Pointers: Not Applicable
MPI Library: Intel MPI Library for Linux* OS
Version 2019 Update 7 Build 20200312
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: ThinkSystem SR860 V2

Hardware
Number of nodes: 1
Uses of the node: compute
Vendor: Lenovo Global Technology
Model: ThinkSystem SR860 V2
CPU Name: Intel Xeon Platinum 8380H
CPU(s) orderable: 2,4 chips
Chips enabled: 4
Cores enabled: 112
Cores per chip: 28
Threads per core: 1
CPU Characteristics: None
CPU MHz: 2900
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory: 1536 GB (48 x 32 GB 2Rx8 PC4-3200AA)
Disk Subsystem: 1 x 1 TB SATA 2.5" SSD
Other Hardware: N/A
Adapter: Intel Omni-Path Fabric Adapter 100 Series
Number of Adapters: 1
Slot Type: PCI-Express 3.0 x16
Data Rate: 100 Gb/s
Ports Used: 1
Interconnect Type: Intel Omni-Path
Software
Adapter: Intel Omni-Path Fabric Adapter 100 Series
Adapter Driver: 10.10.2.0.46
Adapter Firmware: 10.4.0.0.146
Operating System: Red Hat Enterprise Linux Server release 8.2,
Kernel 4.18.0-193.el8.x86_64
Local File System: xfs
Shared File System: None
System State: Multi-user, run level 3
Other Software: None

Node Description: NFS

Hardware
Number of nodes: 1
Uses of the node: Fileserver
Vendor: Lenovo Global Technology
Model: ThinkSystem SR860 V2
CPU Name: Intel Xeon Platinum 8380H
CPU(s) orderable: 2,4 chips
Chips enabled: 4
Cores enabled: 112
Cores per chip: 28
Threads per core: 1
CPU Characteristics: None
CPU MHz: 2900
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory: 1536 GB (48 x 32 GB 2Rx8 PC4-3200AA-R)
Disk Subsystem: 1 x 1 TB SATA 2.5" SSD
Other Hardware: None
Adapter: Intel Omni-Path Fabric Adapter 100 Series
Number of Adapters: 1
Slot Type: PCI-Express 3.0 x16
Data Rate: 100 Gb/s
Ports Used: 1
Interconnect Type: Intel Omni-Path
Software
Adapter: Intel Omni-Path Fabric Adapter 100 Series
Adapter Driver: 10.10.2.0.46
Adapter Firmware: 10.4.0.0.146
Operating System: Red Hat Enterprise Linux Server release 7.8
Local File System: None
Shared File System: NFS
System State: Multi-User, run level 3
Other Software: None

Interconnect Description: Intel Omni-Path

Hardware
Vendor: Intel
Model: Intel Omni-Path Fabric Adapter 100 Series
Switch Model: Intel Omni-Path 100 Series
Number of Switches: 1
Number of Ports: 48
Data Rate: 100 Gb/s
Firmware: 10.3.0.0.60
Topology: Mesh
Primary Use: MPI Traffic

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpiexec command was used to start MPI jobs.
 RAM configuration:
   Compute nodes have 2 x 32 GB RDIMM on each memory channel.
 BIOS settings:
   Operating Mode : Maximum Performance Mode
   Intel Hyper-Threading Technology (SMT): Disabled
   SNC (Sub-NUMA Cluster): Enable
 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK

Base Optimization Flags

C benchmarks:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -ipo   -xCORE-AVX512   -no-prec-div

Fortran benchmarks:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

Peak Optimization Flags

C benchmarks:

122.tachyon:  basepeak = yes
125.RAxML:  basepeak = yes
142.dmilc:  basepeak = yes

C++ benchmarks:

126.lammps:  basepeak = yes

Fortran benchmarks:

129.tera_tf:  basepeak = yes
137.lu:  basepeak = yes
143.dleslie:  basepeak = yes
145.lGemsFDTD:  basepeak = yes

Benchmarks using both Fortran and C:

121.pop2:  basepeak = yes
128.GAPgeofem:  basepeak = yes
132.zeusmp2:  basepeak = yes
147.l2wrf2:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel121_flags.20201007.html,
http://www.spec.org/mpi2007/flags/Lenovo-SPECmpiM_Platform_Flags.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/mpi2007/flags/EM64T_Intel121_flags.20201007.xml,
http://www.spec.org/mpi2007/flags/Lenovo-SPECmpiM_Platform_Flags.xml.
