SPEC® MPIM2007 Result

Lenovo Global Technology

ThinkSystem SR650
(Intel Xeon Platinum 8280 CPU, 2.70 GHz)

SPECmpiM_peak2007 = Not Run

SPECmpiM_base2007 = 19.4

MPI2007 license:	28	Test date:	Apr-2019
Test sponsor:	Lenovo Global Technology	Hardware Availability:	Apr-2019
Tested by:	Lenovo Global Technology	Software Availability:	Apr-2019

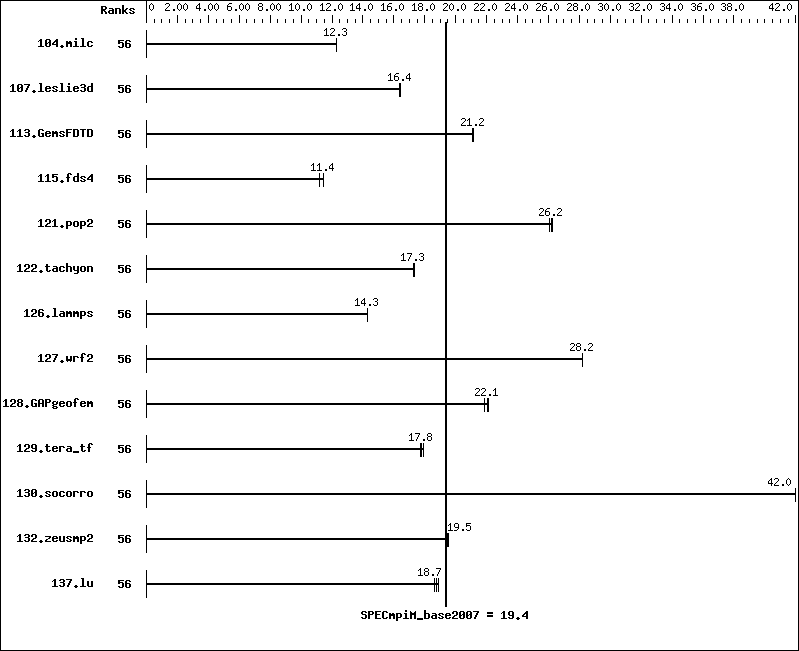

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc	56	127	12.3	127	12.3	127	12.3
107.leslie3d	56	318	16.4	318	16.4	319	16.4
113.GemsFDTD	56	298	21.2	298	21.2	299	21.1
115.fds4	56	171	11.4	171	11.4	174	11.2
121.pop2	56	157	26.3	158	26.2	158	26.1
122.tachyon	56	161	17.3	162	17.3	162	17.3
126.lammps	56	204	14.3	204	14.3	204	14.3
127.wrf2	56	276	28.2	276	28.2	276	28.2
128.GAPgeofem	56	94.3	21.9	93.4	22.1	93.6	22.1
129.tera_tf	56	154	18.0	156	17.7	155	17.8
130.socorro	56	91.0	42.0	91.0	42.0	90.9	42.0
132.zeusmp2	56	159	19.5	159	19.5	159	19.5
137.lu	56	196	18.7	195	18.9	197	18.7

Hardware Summary
Type of System:	Homogeneous
Compute Node:	ThinkSystem SR650
Interconnect:	N/A
Total Compute Nodes:	1
Total Chips:	2
Total Cores:	56
Total Threads:	56
Total Memory:	768 GB
Base Ranks Run:	56
Minimum Peak Ranks:	--
Maximum Peak Ranks:	--

Software Summary
C Compiler:	Intel C++ Compiler 17.0 Update 7 for Linux Version 17.0.7 Build 20180403
C++ Compiler:	Intel C++ Compiler 17.0 Update 7 for Linux Version 17.0.7 Build 20180403
Fortran Compiler:	Intel Fortran Compiler 17.0 Update 7 for Linux Version 17.0.7 Build 20180403
Base Pointers:	64-bit
Peak Pointers:	Not Applicable
MPI Library:	Intel MPI Library for Linux* OS Version 2018 Update 3 Build 20180411
Other MPI Info:	None
Pre-processors:	No
Other Software:	None

Node Description: ThinkSystem SR650

Hardware
Number of nodes:	1
Uses of the node:	compute
Vendor:	Lenovo Global Technology
Model:	SR650
CPU Name:	Intel Xeon Platinum 8280
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	56
Cores per chip:	28
Threads per core:	1
CPU Characteristics:	None
CPU MHz:	2700
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	38.5 MB I+D on chip per chip shared / 28 cores
Other Cache:	None
Memory:	768 GB (24 x 32 GB 2Rx4 PC4-2933Y-R)
Disk Subsystem:	1 x 1 TB 12 Gbps SAS 2.5" SSD (JBOD)
Other Hardware:	ThinkSystem RAID 930-8i 2GB Flash
Adapter:	N/A
Number of Adapters:	0
Slot Type:	N/A
Data Rate:	N/A
Ports Used:	0
Interconnect Type:	None

Software
Adapter:	N/A
Adapter Driver:	N/A
Adapter Firmware:	N/A
Operating System:	SUSE Linux Enterprise Server 12 SP4 4.12.14-94.41-default
Local File System:	xfs
Shared File System:	None
System State:	Multi-user, run level 3
Other Software:	None

Interconnect Description: N/A

Hardware
Vendor:	N/A
Model:	N/A
Switch Model:	N/A
Number of Switches:	0
Number of Ports:	0
Data Rate:	N/A
Firmware:	N/A
Topology:	N/A
Primary Use:	N/A

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpiexec command was used to start MPI jobs.

 RAM configuration:
   Compute nodes have 2 x 32 GB RDIMM on each memory channel.

 BIOS settings:
   Operating Mode : Maximum Performance Mode
   Intel Hyper-Threading Technology (SMT): Disabled
   SNC (Sub-NUMA Cluster): Enable


 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
