SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Huawei

Huawei 2488H V5 (Intel Xeon Platinum 8280 CPU, 2.70 GHz)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 27 Test date: Feb-2019
Test sponsor: Huawei Hardware Availability: Apr-2019
Tested by: Huawei Software Availability: Feb-2019

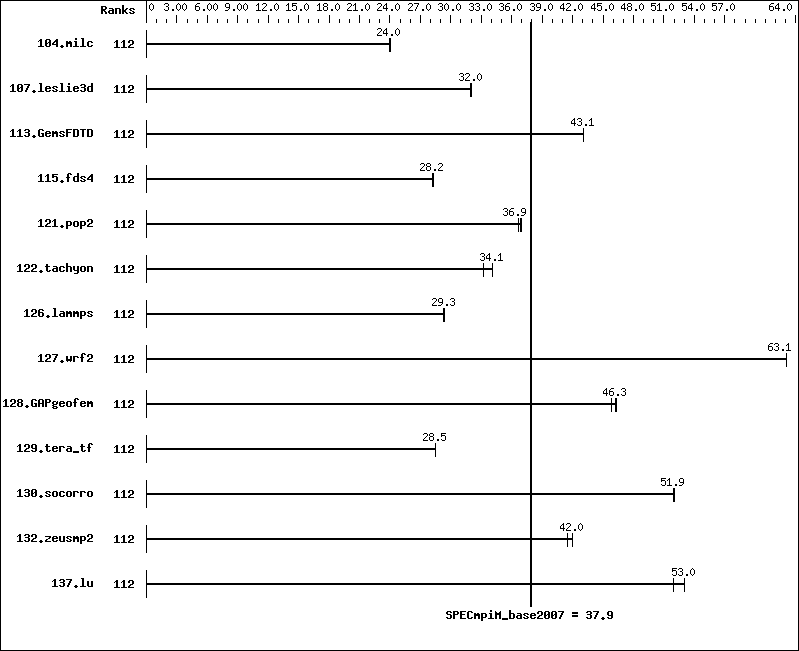

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 112 65.2 24.0 65.2 24.0 65.1 24.0
107.leslie3d 112 164   31.9 163   32.1 163   32.0
113.GemsFDTD 112 146   43.1 146   43.1 147   43.0
115.fds4 112 69.2 28.2 69.1 28.2 69.2 28.2
121.pop2 112 113   36.7 112   36.9 112   36.9
122.tachyon 112 84.1 33.3 82.1 34.1 82.0 34.1
126.lammps 112 99.4 29.3 99.4 29.3 99.1 29.4
127.wrf2 112 124   63.1 124   63.1 124   63.1
128.GAPgeofem 112 44.6 46.3 44.6 46.3 45.1 45.8
129.tera_tf 112 97.2 28.5 97.2 28.5 97.2 28.5
130.socorro 112 73.5 51.9 73.3 52.1 73.5 51.9
132.zeusmp2 112 73.9 42.0 73.9 42.0 74.7 41.5
137.lu 112 69.3 53.1 69.3 53.0 70.8 51.9
Hardware Summary
Type of System: Homogeneous
Compute Node: Huawei 2488H V5
File Server Node: Huawei 2488H V5
Head Node: Huawei 2488H V5
Total Compute Nodes: 1
Total Chips: 4
Total Cores: 112
Total Threads: 112
Total Memory: 1536 GB
Base Ranks Run: 112
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Composer XE 2018 for Linux,
Version 18.0.5
C++ Compiler: Intel C++ Composer XE 2018 for Linux,
Version 18.0.5
Fortran Compiler: Intel Fortran Composer XE 2018 for Linux,
Version 18.0.5
Base Pointers: 64-bit
Peak Pointers: Not Applicable
MPI Library: Intel MPI Library for Linux,
Version 2018 Update 4
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: Huawei 2488H V5

Hardware
Number of nodes: 1
Uses of the node: head, compute, fileserver
Vendor: Huawei
Model: Huawei 2488H V5
CPU Name: Intel Xeon Platinum 8280
CPU(s) orderable: 2,4 chip
Chips enabled: 4
Cores enabled: 112
Cores per chip: 28
Threads per core: 1
CPU Characteristics: None
CPU MHz: 2700
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 38.5 MB I+D on chip per chip
Other Cache: None
Memory: 1536 GB (48 x 32 GB 2Rx4 PC4-2933Y-R)
Disk Subsystem: 1 x 900 GB 10K RPM SAS HDD,RAID 0
Other Hardware: None
Adapter: N/A
Number of Adapters: 0
Slot Type: N/A
Data Rate: N/A
Ports Used: 0
Interconnect Type: N/A
Software
Adapter: N/A
Adapter Driver: N/A
Adapter Firmware: N/A
Operating System: SUSE Linux Enterprise Server 12 SP4
4.12.14-94.41-default
Local File System: btrfs
Shared File System: None
System State: Multi-User, run level 3
Other Software: None

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpiexec.hydra command was used to start MPI jobs.

 BIOS settings:
   Intel Hyper-Threading Technology :Disabled
   Intel Turbo Boost Technology :Enabled (default is Enabled)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
is mitigated in the system as tested and documented.

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX

Base Optimization Flags

C benchmarks:

 -O3   -xCORE-AVX2   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -xCORE-AVX2   -no-prec-div

Fortran benchmarks:

 -O3   -xCORE-AVX2   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -xCORE-AVX2   -no-prec-div

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/Huawei_x86_64_Intel_linux.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/Huawei_x86_64_Intel_linux.xml.
