SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Lenovo Global Technology

ThinkSystem SR650
(Intel Xeon Platinum 8280 CPU, 2.70 GHz)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 28 Test date: Mar-2019
Test sponsor: Lenovo Global Technology Hardware Availability: Apr-2019
Tested by: Lenovo Global Technology Software Availability: Apr-2019

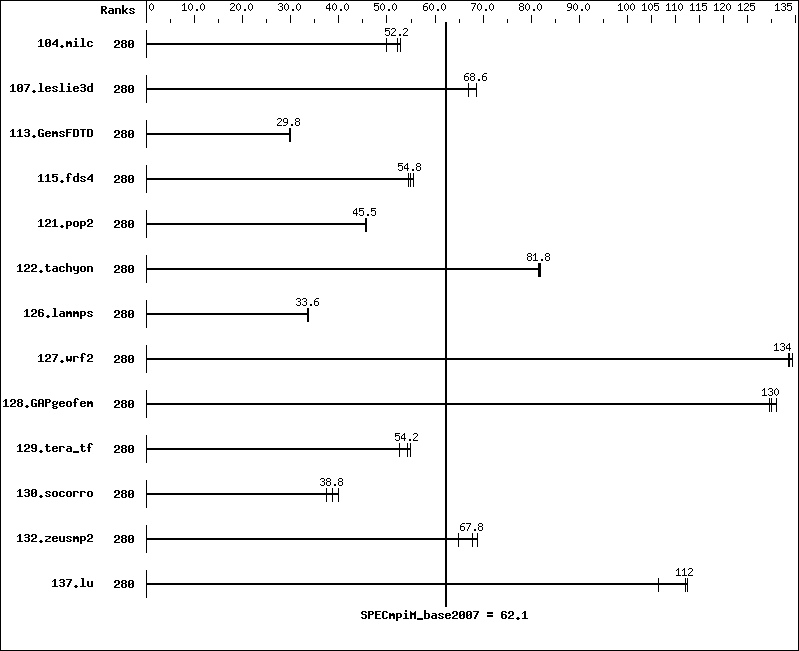

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 280 31.4 49.9 29.7 52.7 30.0 52.2
107.leslie3d 280 76.0 68.6 76.0 68.7 77.9 67.0
113.GemsFDTD 280 211   29.9 212   29.8 212   29.8
115.fds4 280 35.8 54.5 35.6 54.8 35.1 55.6
121.pop2 280 90.4 45.6 90.8 45.5 90.7 45.5
122.tachyon 280 34.3 81.5 34.1 82.0 34.2 81.8
126.lammps 280 86.6 33.6 86.8 33.6 86.9 33.6
127.wrf2 280 58.0 134   58.3 134   58.4 134
128.GAPgeofem 280 15.8 131   15.9 130   15.9 130
129.tera_tf 280 51.0 54.2 52.7 52.6 50.5 54.8
130.socorro 280 95.9 39.8 102   37.4 98.4 38.8
132.zeusmp2 280 47.8 64.9 45.1 68.8 45.8 67.8
137.lu 280 34.5 106   32.8 112   32.7 112
Hardware Summary
Type of System: Homogeneous
Compute Node: ThinkSystem SR650
Interconnect: Intel Omni-Path
File Server Node: NFS
Total Compute Nodes: 5
Total Chips: 10
Total Cores: 280
Total Threads: 280
Total Memory: 3840 GB
Base Ranks Run: 280
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Compiler 17.0 Update 7 for Linux
Version 17.0.7 Build 20180403
C++ Compiler: Intel C++ Compiler 17.0 Update 7 for Linux
Version 17.0.7 Build 20180403
Fortran Compiler: Intel Fortran Compiler 17.0 Update 7 for Linux
Version 17.0.7 Build 20180403
Base Pointers: 64-bit
Peak Pointers: Not Applicable
MPI Library: Intel MPI Library for Linux* OS
Version 2018 Update 3 Build 20180411
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: ThinkSystem SR650

Hardware
Number of nodes: 5
Uses of the node: compute
Vendor: Lenovo Global Technology
Model: SR650
CPU Name: Intel Xeon Platinum 8280
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 56
Cores per chip: 28
Threads per core: 1
CPU Characteristics: None
CPU MHz: 2700
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 38.5 MB I+D on chip per chip
Other Cache: None
Memory: 768 GB (24 x 32 GB 2Rx4 PC4-2933Y-R)
Disk Subsystem: 1 x 1 TB 12 Gbps SAS 2.5" SSD (JBOD)
Other Hardware: ThinkSystem RAID 530-8i
Adapter: Intel Omni-Path 100 Series Single-port PCIe 3.0
x16 HFA
Number of Adapters: 1
Slot Type: PCI-Express Gen3 x16
Data Rate: 100 Gb/s
Ports Used: 1
Interconnect Type: Intel Omni-Path Fabric 100 Series
Software
Adapter: Intel Omni-Path 100 Series Single-port PCIe 3.0
x16 HFA
Adapter Driver: IFS 10.9.1.0.15
Adapter Firmware: 10.9.0.1.0
Operating System: Red Hat Enterprise Linux Server release 7.6,
Kernel 3.10.0-957.el7.x86_64
Local File System: xfs
Shared File System: nfs
System State: Multi-user, run level 3
Other Software: NONE

Node Description: NFS

Hardware
Number of nodes: 1
Uses of the node: Fileserver
Vendor: Lenovo Global Technology
Model: ThinkSystem SR650
CPU Name: Intel Xeon Platinum 8280
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 56
Cores per chip: 28
Threads per core: 1
CPU Characteristics: None
CPU MHz: 2700
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 38.5 MB I+D on chip per chip
Other Cache: None
Memory: 768 GB (24 x 32 GB 2Rx4 PC4-2933Y-R)
Disk Subsystem: 1 x 1 TB 12 Gbps SAS 2.5" SSD (JBOD)
Other Hardware: None
Adapter: Intel Omni-Path 100 Series Single-port PCIe 3.0
x16 HFA
Number of Adapters: 1
Slot Type: PCI-Express 3.0 x16
Data Rate: 100 Gb/s
Ports Used: 1
Interconnect Type: Intel Omni-Path Fabric 100 series
Software
Adapter: Intel Omni-Path 100 Series Single-port PCIe 3.0
x16 HFA
Adapter Driver: 10.9.1.0.15
Adapter Firmware: 10.9.0.1.0
Operating System: Red Hat Enterprise Linux Server release 7.6
Local File System: None
Shared File System: NFS
System State: Multi-User, run level 3
Other Software: None

Interconnect Description: Intel Omni-Path

Hardware
Vendor: Intel
Model: Intel Omni-Path Fabric 100 Series
Switch Model: Intel Omni-Path Edge Switch 100 Series 48 Port 2
PSU
Number of Switches: 1
Number of Ports: 48
Data Rate: 100 Gb/s
Firmware: 10.3.0.0.60
Topology: Mesh
Primary Use: MPI Traffic

Submit Notes

The config file option 'submit' was used.

General Notes

130.socorro (base): "nullify_ptrs" src.alt was used.

129.tera_tf (base): "add_rank_support" src.alt was used.

 MPI startup command:
   mpiexec command was used to start MPI jobs.

 RAM configuration:
   Compute nodes have 2 x 32 GB RDIMM on each memory channel.

 BIOS settings:
   Operating Mode : Maximum Performance Mode
   Intel Hyper-Threading Technology (SMT): Disabled
   SNC (Sub-NUMA Cluster): Enable


 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX
130.socorro:  -assume nostd_intent_in

Base Optimization Flags

C benchmarks:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -ipo   -xCORE-AVX512   -no-prec-div

Fortran benchmarks:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

The flags files that were used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/Lenovo-SPECmpiM_Platform_Flags.html,
http://www.spec.org/mpi2007/flags/EM64T_Intel121_flags.20170711.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/mpi2007/flags/Lenovo-SPECmpiM_Platform_Flags.xml,
http://www.spec.org/mpi2007/flags/EM64T_Intel121_flags.20170711.xml.
