SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Cray

Big Red II (AMD Opteron 6380, 2.5 GHz)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 3440A Test date: Mar-2015
Test sponsor: Indiana University Hardware Availability: Apr-2013
Tested by: Indiana University Software Availability: Jun-2013

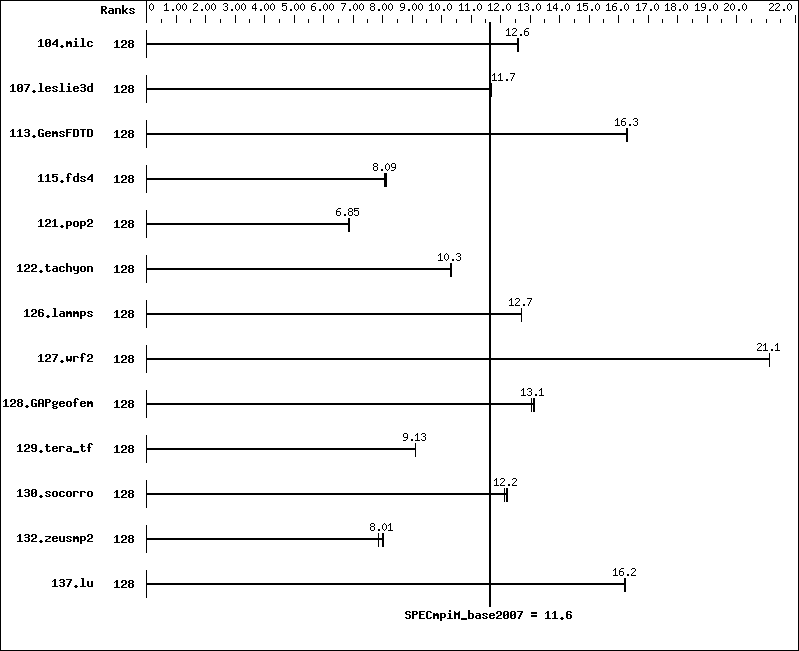

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 128 124 12.6  124 12.6  124 12.6
107.leslie3d 128 446 11.7  447 11.7  446 11.7
113.GemsFDTD 128 387 16.3  388 16.3  387 16.3
115.fds4 128 242 8.08 241 8.09 240 8.12
121.pop2 128 602 6.85 601 6.87 603 6.85
122.tachyon 128 271 10.3  271 10.3  271 10.3
126.lammps 128 230 12.7  229 12.7  229 12.7
127.wrf2 128 370 21.1  369 21.1  369 21.1
128.GAPgeofem 128 158 13.1  157 13.1  158 13.0
129.tera_tf 128 303 9.13 303 9.13 303 9.13
130.socorro 128 313 12.2  315 12.1  312 12.2
132.zeusmp2 128 388 8.01 386 8.03 394 7.87
137.lu 128 226 16.2  226 16.2  227 16.2
Hardware Summary
Type of System: Homogeneous
Compute Node: Big Red II Node
Interconnects: Infiniband (QDR)
Cray Gemini
File Server Node: Data Capacitor II
Total Compute Nodes: 4
Total Chips: 8
Total Cores: 128
Total Threads: 128
Total Memory: 256 GB
Base Ranks Run: 128
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C Composer XE 2013 for Linux, Version
13.1.3.192 Build 20130607
C++ Compiler: Intel C++ Composer XE 2013 for Linux, Version
13.1.3.192 Build 20130607
Fortran Compiler: Intel Fortran Composer XE 2013 for Linux, Version
13.1.3.192 Build 20130607
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: Cray MPI (MPT) 7.1.2
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: Big Red II Node

Hardware
Number of nodes: 4
Uses of the node: compute
Vendor: Cray
Model: XE6
CPU Name: AMD Opteron 6380
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 32
Cores per chip: 16
Threads per core: 1
CPU Characteristics: AMD Turbo CORE technology up to 3.40 GHz
CPU MHz: 2500
Primary Cache: 512 KB I on chip per chip, 64 KB I shared / 2
cores; 16 KB D on chip per core
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory: 64 GB (8 x 8 GB 2Rx4 PC3L-12800R-11, ECC
running at 1600 MHz and CL11)
Disk Subsystem: None
Other Hardware: None
Adapter: Mellanox ConnectX MHQH29-XTC
Number of Adapters: 1
Slot Type: PCIe x8 Gen 2
Data Rate: 40Gbps
Ports Used: 1
Interconnect Type: 40 Gigabit Infiniband (QDR)
Adapter: Cray Gemini
Number of Adapters: 1
Slot Type: AMD HyperTransport 3
Data Rate: 76.8Gbps
Ports Used: 1
Interconnect Type: Gemini
Software
Adapter: Mellanox ConnectX MHQH29-XTC
Adapter Driver: 1.0-ofed1.5.4
Adapter Firmware: 2.9.1000
Adapter: Cray Gemini
Adapter Driver: Proprietary Cray_kgni
Adapter Firmware: 0.17
Operating System: SUSE Linux Enterprise Server 11 (x86_64),
Cray Linux Environment 4.2
Kernel 2.6.32.59-0.7.1_1.0402.7496-cray_gem_c
Local File System: None
Shared File System: lustre
System State: Multi-User
Other Software: TORQUE-2.5.7

Node Description: Data Capacitor II

Hardware
Number of nodes: 2
Uses of the node: fileserver
Vendor: DDN
Model: DDN SFA12K
CPU Name: Intel Xeon CPU E5-2620
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 12
Cores per chip: 6
Threads per core: 1
CPU Characteristics: Intel Turbo Boost Technology up to 2.50 GHz
CPU MHz: 2000
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 15 MB I+D on chip per chip
Other Cache: None
Memory: 96 GB
Disk Subsystem: 30 TB RAID 6, 10 (8 + 2) x 3 TB SATA (Hitachi,
7200RPM, 6.0Gbps)
Other Hardware: None
Adapter: Mellanox ConnectX MHQH29-XTC
Number of Adapters: 1
Slot Type: PCIe x8 Gen 2
Data Rate: 40Gbps
Ports Used: 1
Interconnect Type: 40 Gigabit Infiniband (QDR)
Software
Adapter: Mellanox ConnectX MHQH29-XTC
Adapter Driver: 1.0-ofed1.5.4
Adapter Firmware: 2.9.1000
Operating System: CentOS 6.2
Local File System: Linux/ext4
Shared File System: lustre
System State: Multi-User
Other Software: None

Interconnect Description: Infiniband (QDR)

Hardware
Vendor: DDN
Model: Mellanox SX6506
Switch Model: Mellanox SX6506
Number of Switches: 1
Number of Ports: 108
Data Rate: 56 Gbps
Firmware: mellanox SX6506
Topology: switched
Primary Use: Lustre fileserver

Interconnect Description: Cray Gemini

Hardware
Vendor: Cray
Model: Cray Gemini
Switch Model: Cray Gemini
Number of Switches: 264
Number of Ports: 48
Data Rate: 9.36 GB/s
Firmware: 0.17
Topology: 3D Torus
Primary Use: MPI traffic

Submit Notes

The config file option 'submit' was used.

General Notes

130.socorro (base): "nullify_ptrs" src.alt was used.

MPI startup command:
  aprun command was used to start MPI jobs.

export MPICH_NO_BUFFER_ALIAS_CHECK=true
  If set, the buffer alias error check for collectives is
  disabled. The MPI standard does not allow aliasing of type
  OUT or INOUT parameters on the same collective function
  call. The default is false.

Network:
  3D Torus

Job placement:
  PBS is used for job placement.
  Compute nodes are selected by PBS.
  No specific node selection is used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

126.lammps:  CC

Fortran benchmarks:

 ftn

Benchmarks using both Fortran and C:

 cc   ftn

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX
130.socorro:  -assume nostd_intent_in

Base Optimization Flags

C benchmarks:

 -O3   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -no-prec-div

Fortran benchmarks:

 -O3   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -no-prec-div

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel140_flags.20150429.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/EM64T_Intel140_flags.20150429.xml.
