SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Intel Corporation

Endeavor (Intel Xeon E5-2697 v3, 2.60 GHz,
DDR4-2133 MHz, SMT on, Turbo off)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 13 Test date: Aug-2014
Test sponsor: Intel Corporation Hardware Availability: Sep-2014
Tested by: Pavel Shelepugin Software Availability: May-2014

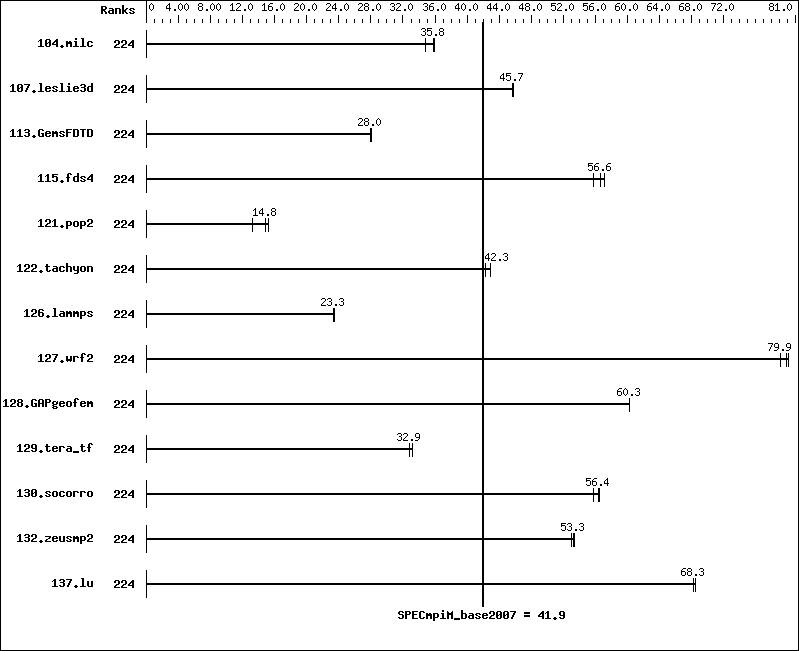

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 224 44.9 34.9 43.7 35.8 43.5 35.9
107.leslie3d 224 114   45.8 114   45.7 114   45.7
113.GemsFDTD 224 225   28.1 225   28.0 226   28.0
115.fds4 224 34.1 57.1 34.4 56.6 35.0 55.8
121.pop2 224 279   14.8 272   15.2 311   13.3
122.tachyon 224 66.2 42.3 65.3 42.9 66.2 42.3
126.lammps 224 125   23.3 124   23.5 125   23.3
127.wrf2 224 98.5 79.1 97.6 79.9 97.3 80.1
128.GAPgeofem 224 34.3 60.3 34.3 60.3 34.3 60.2
129.tera_tf 224 84.3 32.8 84.2 32.9 83.5 33.1
130.socorro 224 67.5 56.6 67.7 56.4 68.4 55.8
132.zeusmp2 224 58.2 53.4 58.2 53.3 58.5 53.0
137.lu 224 53.7 68.5 53.8 68.3 53.8 68.3
Hardware Summary
Type of System: Homogeneous
Compute Node: Endeavor Node
Interconnects: IB Switch
Gigabit Ethernet
File Server Node: NFS
Total Compute Nodes: 8
Total Chips: 16
Total Cores: 224
Total Threads: 448
Total Memory: 512 GB
Base Ranks Run: 224
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Composer XE 2013 for Linux, Version
14.0.3.174 Build 20140422
C++ Compiler: Intel C++ Composer XE 2013 for Linux, Version
14.0.3.174 Build 20140422
Fortran Compiler: Intel Fortran Composer XE 2013 for Linux, Version
14.0.3.174 Build 20140422
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: Intel MPI Library 4.1.3.049 for Linux
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: Endeavor Node

Hardware
Number of nodes: 8
Uses of the node: compute
Vendor: Intel
Model: R2208WTTYC1
CPU Name: Intel Xeon E5-2697 v3
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 28
Cores per chip: 14
Threads per core: 2
CPU Characteristics: Intel Turbo Boost Technology disabled,
9.6 GT/s QPI, Hyper-Threading enabled
CPU MHz: 2600
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 35 MB I+D on chip per chip, 35 MB
shared / 14 cores
Other Cache: None
Memory: 64 GB (8 x 8 GB 2Rx4 PC4-17000R-15, ECC)
Disk Subsystem: ATA INTEL SSDSA2BZ20, SSDSC2BB80
Other Hardware: None
Adapter: Intel (ESB2) 82575EB Dual-Port Gigabit
Ethernet Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 2
Interconnect Type: Ethernet
Adapter: Mellanox MCX353A-FCAT ConnectX-3
Number of Adapters: 1
Slot Type: PCIe x8 Gen3
Data Rate: InfiniBand 4x FDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: Intel (ESB2) 82575EB Dual-Port Gigabit
Ethernet Controller
Adapter Driver: e1000
Adapter Firmware: None
Adapter: Mellanox MCX353A-FCAT ConnectX-3
Adapter Driver: OFED 3.5-2-MIC-rc1
Adapter Firmware: 2.31.5050
Operating System: Red Hat EL 6.5, kernel 2.6.32-358
Local File System: Linux/xfs
Shared File System: NFS
System State: Multi-User
Other Software: IBM Platform LSF Standard 9.1.1.1

Node Description: NFS

Hardware
Number of nodes: 1
Uses of the node: fileserver
Vendor: Intel
Model: S7000FC4UR
CPU Name: Intel Xeon CPU
CPU(s) orderable: 1-4 chips
Chips enabled: 4
Cores enabled: 16
Cores per chip: 4
Threads per core: 2
CPU Characteristics: --
CPU MHz: 2926
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 64 GB
Disk Subsystem: 8 disks, 500GB/disk, 2.7TB total
Other Hardware: None
Adapter: Intel 82563GB Dual-Port Gigabit
Ethernet Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Software
Adapter: Intel 82563GB Dual-Port Gigabit
Ethernet Controller
Adapter Driver: e1000e
Adapter Firmware: N/A
Operating System: RedHat EL 5 Update 4
Local File System: None
Shared File System: NFS
System State: Multi-User
Other Software: None

Interconnect Description: IB Switch

Hardware
Vendor: Mellanox
Model: Mellanox MSX6025F-1BFR
Switch Model: Mellanox MSX6025F-1BFR
Number of Switches: 46
Number of Ports: 36
Data Rate: InfiniBand 4x FDR
Firmware: 9.2.8000
Topology: Fat tree
Primary Use: MPI traffic

Interconnect Description: Gigabit Ethernet

Hardware
Vendor: Force10 Networks, Cisco Systems
Model: Force10 S50N, Force10 C300, Cisco WS-C4948E-F
Switch Model: Force10 S50N, Force10 C300, Cisco WS-C4948E-F
Number of Switches: 13
Number of Ports: 48
Data Rate: 1Gbps Ethernet, 10Gbps Ethernet
Firmware: 8.3.2.0, 12.2(54)WO
Topology: Star
Primary Use: Cluster File System

Submit Notes

The config file option 'submit' was used.

General Notes

130.socorro (base): "nullify_ptrs" src.alt was used.

 MPI startup command:
   mpiexec.hydra command was used to start MPI jobs.

 BIOS settings:
   Intel Hyper-Threading Technology (SMT): Enabled (default is Enabled)
   Intel Turbo Boost Technology (Turbo)  : Disabled (default is Enabled)

 RAM configuration:
   Compute nodes have 2x8-GB RDIMM on each memory channel.

 Network:
   Forty six 36-port switches: 18 core switches and 28 leaf switches.
   Each leaf has one link to each core. Remaining 18 ports on 25 of 28 leafs
   are used for compute nodes. On the remaining 3 leafs the ports are used
   for FS nodes and other peripherals.

 Job placement:
   Each MPI job was assigned to a topologically compact set of nodes, i.e.
   the minimal needed number of leaf switches was used for each job: 1 switch
   for 28/56/112/224/448 ranks, 2 switches for 896 ranks, 4 switches for 1792 ranks,
   8 switches for 3584 ranks.

 IBM Platform LSF was used for job submission. It has no impact on performance.
   Information can be found at: http://www.ibm.com

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX
130.socorro:  -assume nostd_intent_in

Base Optimization Flags

C benchmarks:

 -O3   -xCORE-AVX2   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -xCORE-AVX2   -no-prec-div

Fortran benchmarks:

 -O3   -xCORE-AVX2   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -xCORE-AVX2   -no-prec-div

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel140_flags.20140908.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/EM64T_Intel140_flags.20140908.xml.
