SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Intel Corporation

Endeavor (Intel Xeon E5-2670, 2.60 GHz,
DDR3-1333 MHz, SMT on, Turbo off)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 13 Test date: Feb-2012
Test sponsor: Intel Corporation Hardware Availability: Mar-2012
Tested by: Pavel Shelepugin Software Availability: Sep-2011

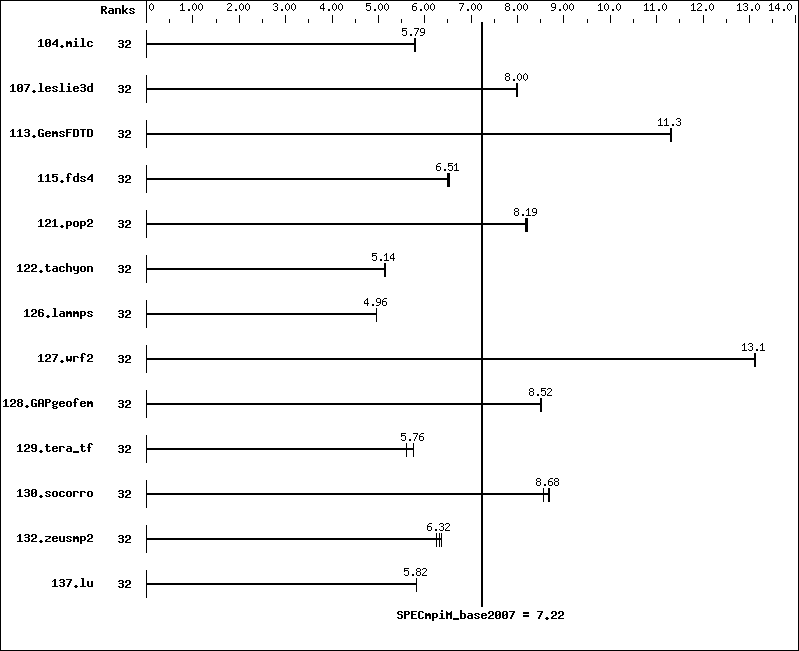

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 32 271 5.78 270 5.79 270 5.80
107.leslie3d 32 652 8.00 655 7.97 653 8.00
113.GemsFDTD 32 557 11.3  558 11.3  559 11.3
115.fds4 32 298 6.54 300 6.51 301 6.48
121.pop2 32 502 8.22 506 8.17 504 8.19
122.tachyon 32 544 5.15 545 5.13 544 5.14
126.lammps 32 587 4.97 589 4.95 587 4.96
127.wrf2 32 594 13.1  595 13.1  595 13.1
128.GAPgeofem 32 242 8.52 243 8.50 242 8.52
129.tera_tf 32 481 5.76 494 5.61 480 5.76
130.socorro 32 446 8.56 440 8.68 440 8.68
132.zeusmp2 32 491 6.32 497 6.24 488 6.36
137.lu 32 632 5.82 631 5.82 632 5.81
Hardware Summary
Type of System: Homogeneous
Compute Node: Endeavor Node
Interconnects: IB Switch
Gigabit Ethernet
File Server Node: NFS
Total Compute Nodes: 2
Total Chips: 4
Total Cores: 32
Total Threads: 64
Total Memory: 128 GB
Base Ranks Run: 32
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Composer XE 2011 for Linux, Version
12.0.5.220 Build 20110719
C++ Compiler: Intel C++ Composer XE 2011 for Linux, Version
12.0.5.220 Build 20110719
Fortran Compiler: Intel Fortran Composer XE 2011 for Linux, Version
12.0.5.220 Build 20110719
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: Intel MPI Library 4.0.3.008 for Linux
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: Endeavor Node

Hardware
Number of nodes: 2
Uses of the node: compute
Vendor: Intel
Model: R1208GLBPP
CPU Name: Intel Xeon E5-2670
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 16
Cores per chip: 8
Threads per core: 2
CPU Characteristics: Intel Turbo Boost Technology disabled,
8.0 GT/s QPI, Hyper-Threading enabled
CPU MHz: 2600
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 20 MB I+D on chip per chip, 20 MB shared / 8 cores
Other Cache: None
Memory: 64 GB (8 x 8 GB 2Rx4 PC3-12800R, ECC,
running at 1333MHz and CL9)
Disk Subsystem: Seagate 600 GB SSD ST9600205SS
Other Hardware: None
Adapter: Intel (ESB2) 82575EB Dual-Port Gigabit
Ethernet Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 2
Interconnect Type: Ethernet
Adapter: Mellanox MHQH29-XTC
Number of Adapters: 1
Slot Type: PCIe x8 Gen2
Data Rate: InfiniBand 4x QDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: Intel (ESB2) 82575EB Dual-Port Gigabit
Ethernet Controller
Adapter Driver: e1000
Adapter Firmware: None
Adapter: Mellanox MHQH29-XTC
Adapter Driver: OFED 1.5.3.1
Adapter Firmware: 2.10.0
Operating System: Red Hat EL 6.1, kernel 2.6.32-131
Local File System: Linux/ext2
Shared File System: NFS
System State: Multi-User
Other Software: Platform LSF 8.0

Node Description: NFS

Hardware
Number of nodes: 1
Uses of the node: fileserver
Vendor: Intel
Model: S7000FC4UR
CPU Name: Intel Xeon CPU
CPU(s) orderable: 1-4 chips
Chips enabled: 4
Cores enabled: 16
Cores per chip: 4
Threads per core: 2
CPU Characteristics: --
CPU MHz: 2926
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 64 GB
Disk Subsystem: 8 disks, 500GB/disk, 2.7TB total
Other Hardware: None
Adapter: Intel 82563GB Dual-Port Gigabit
Ethernet Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Software
Adapter: Intel 82563GB Dual-Port Gigabit
Ethernet Controller
Adapter Driver: e1000e
Adapter Firmware: N/A
Operating System: RedHat EL 5 Update 4
Local File System: None
Shared File System: NFS
System State: Multi-User
Other Software: None

Interconnect Description: IB Switch

Hardware
Vendor: Mellanox
Model: Mellanox MTS3600Q-1UNC
Switch Model: Mellanox MTS3600Q-1UNC
Number of Switches: 46
Number of Ports: 36
Data Rate: InfiniBand 4x QDR
Firmware: 7.2.0
Topology: Fat tree
Primary Use: MPI traffic

Interconnect Description: Gigabit Ethernet

Hardware
Vendor: Force10 Networks
Model: Force10 S50, Force10 C300
Switch Model: Force10 S50, Force10 C300
Number of Switches: 15
Number of Ports: 48
Data Rate: 1Gbps Ethernet, 10Gbps Ethernet
Firmware: 8.2.1.0
Topology: Fat tree
Primary Use: Cluster File System

Submit Notes

The config file option 'submit' was used.

General Notes

130.socorro (base): "nullify_ptrs" src.alt was used.

 MPI startup command:
   mpiexec.hydra command was used to start MPI jobs.

 BIOS settings:
   Intel Hyper-Threading Technology (SMT): Enabled (default is Enabled)
   Intel Turbo Boost Technology (Turbo)  : Disabled (default is Enabled)

 RAM configuration:
   Compute nodes have 2x8-GB RDIMM on each memory channel.

 Network:
   Forty six 36-port switches: 18 core switches and 28 leaf switches.
   Each leaf has one link to each core. Remaining 18 ports on 25 of 28 leafs
   are used for compute nodes. On the remaining 3 leafs the ports are used
   for FS nodes and other peripherals.

 Job placement:
   Each MPI job was assigned to a topologically compact set of nodes, i.e.
   the minimal needed number of leaf switches was used for each job: 1 switch
   for 16/32/64/128/256 ranks, 2 switches for 512 ranks, 4 switches for 1024 ranks,
   8 switches for 2048 ranks.

 Platform LSF was used for job submission. It has no impact on performance.
   Information can be found at: http://www.platform.com

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX

Base Optimization Flags

C benchmarks:

 -O3   -xAVX   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -xAVX   -no-prec-div

Fortran benchmarks:

 -O3   -xAVX   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -xAVX   -no-prec-div

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel121_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/EM64T_Intel121_flags.xml.
