SPEC® MPIL2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

SGI

SGI Altix ICE 8400EX
(AMD Opteron 6282 SE, 2.6GHz)

SPECmpiL_peak2007 = Not Run

MPI2007 license: 4 Test date: Jan-2012
Test sponsor: SGI Hardware Availability: Nov-2011
Tested by: SGI Software Availability: Nov-2011

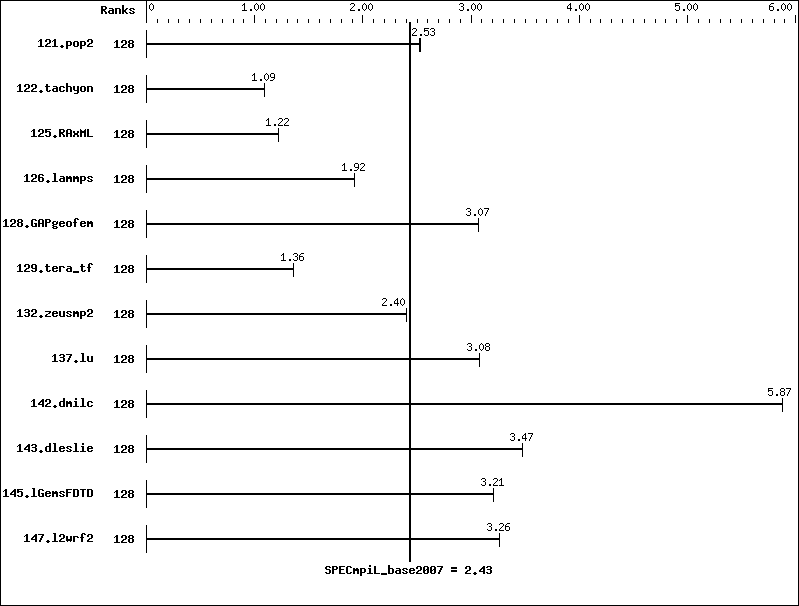

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
121.pop2 128 1537 2.53 1540 2.53 1540 2.53
122.tachyon 128 1789 1.09 1787 1.09 1785 1.09
125.RAxML 128 2390 1.22 2389 1.22 2391 1.22
126.lammps 128 1279 1.92 1279 1.92 1280 1.92
128.GAPgeofem 128 1934 3.07 1934 3.07 1937 3.06
129.tera_tf 128 808 1.36 807 1.36 807 1.36
132.zeusmp2 128 882 2.40 882 2.40 882 2.40
137.lu 128 1367 3.07 1365 3.08 1366 3.08
142.dmilc 128 626 5.88 627 5.87 627 5.87
143.dleslie 128 892 3.47 893 3.47 893 3.47
145.lGemsFDTD 128 1376 3.21 1376 3.21 1376 3.21
147.l2wrf2 128 2513 3.26 2514 3.26 2513 3.27
Hardware Summary
Type of System: Homogeneous
Compute Node: SGI Altix ICE 8400EX Compute Node
Interconnect: InfiniBand (MPI and I/O)
File Server Node: SGI InfiniteStorage 4000
Total Compute Nodes: 4
Total Chips: 8
Total Cores: 128
Total Threads: 128
Total Memory: 512 GB
Base Ranks Run: 128
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Composer XE 2011 for Linux,
Version 12.1.1.256 Build 20111011
C++ Compiler: Intel C++ Composer XE 2011 for Linux,
Version 12.1.1.256 Build 20111011
Fortran Compiler: Intel Fortran Composer XE 2011 for Linux,
Version 12.1.1.256 Build 20111011
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: SGI MPT 2.05
Other MPI Info: OFED 1.5.2
Pre-processors: None
Other Software: None

Node Description: SGI Altix ICE 8400EX Compute Node

Hardware
Number of nodes: 4
Uses of the node: compute
Vendor: SGI
Model: SGI Altix ICE 8400EX (AMD Opteron 6282 SE, 2.6GHz)
CPU Name: AMD Opteron 6282 SE
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 32
Cores per chip: 16
Threads per core: 1
CPU Characteristics: 16 cores/chip, 2.6 GHz
AMD Turbo CORE technology up to 3.30 GHz
CPU MHz: 2600
Primary Cache: 512 KB I on chip per chip,
64 KB I shared / 2 cores;
16 KB D on chip per core
Secondary Cache: 16 MB I+D on chip per chip, 2 MB I+D on chip per
core
L3 Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory: 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: None
Other Hardware: None
Adapter: Mellanox MT26428 ConnectX IB QDR
(PCIe x8 Gen2 5 GT/s)
Number of Adapters: 1
Slot Type: PCIe x8 Gen2
Data Rate: InfiniBand 4x QDR
Ports Used: 2
Interconnect Type: InfiniBand
Software
Adapter: Mellanox MT26428 ConnectX IB QDR
(PCIe x8 Gen2 5 GT/s)
Adapter Driver: OFED-1.5.2
Adapter Firmware: 2.7.0
Operating System: SUSE Linux Enterprise Server 11 SP1 (x86_64)
Kernel 2.6.32.46-0.3-default #1 SMP
Local File System: NFSv3
Shared File System: NFSv3 IPoIB
System State: Run level 3 (Multi-User)
Other Software: SGI Performance Suite 1.3,
Build 705rp8.sles11-1111092106
SGI Tempo Compute Node 2.5,
Build 705r10.sles11-1110192111

Node Description: SGI InfiniteStorage 4000

Hardware
Number of nodes: 1
Uses of the node: fileserver
Vendor: SGI
Model: SGI Altix 450 (Intel Itanium 2, 1.6GHz)
CPU Name: Intel Itanium 2 9030
CPU(s) orderable: 2-38 chips
Chips enabled: 2
Cores enabled: 4
Cores per chip: 2
Threads per core: 1
CPU Characteristics: 1.6GHz/8MB, 533MHz FSB
CPU MHz: 1600
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 4 MB I+D on chip per core
Other Cache: None
Memory: 24 GB (12 x 2 GB, 2Rx4 PC2-3200-3, ECC)
Disk Subsystem: 16 TB RAID 5
32 x 500 GB SATA (Seagate Barracuda 7.2K)
Other Hardware: None
Adapter: Mellanox MT25208 InfiniHost III Ex
(PCIe x8 Gen1 2.5 GT/s)
Number of Adapters: 2
Slot Type: PCIe x8 Gen1
Data Rate: InfiniBand 4x DDR
Ports Used: 2
Interconnect Type: InfiniBand
Software
Adapter: Mellanox MT25208 InfiniHost III Ex
(PCIe x8 Gen1 2.5 GT/s)
Adapter Driver: OFED-1.4.2
Adapter Firmware: 5.3.0
Operating System: SUSE Linux Enterprise Server 11 SP1 (ia64)
Kernel 2.6.32.12-0.7-default
Local File System: xfs
Shared File System: --
System State: Run Level 3 (Multi-User)
Other Software: SGI ProPack 7SP1 for Linux,
Build 701r2.sles11-1005242307

Interconnect Description: InfiniBand (MPI and I/O)

Hardware
Vendor: Mellanox Technologies and SGI
Model: None
Switch Model: SGI QDR_1.5_HYPR_2454 with Mellanox Device 48438
(Infiniscale IV)
Number of Switches: 2
Number of Ports: 36
Data Rate: InfiniBand 4x QDR
Firmware: 5040005
Topology: Enhanced Hypercube
Primary Use: MPI and I/O traffic

Submit Notes

The config file option 'submit' was used.

General Notes

 Software environment:
   export MPI_REQUEST_MAX=65536
   export MPI_TYPE_MAX=32768
   export MPI_BUFS_THRESHOLD=1
   export MPI_IB_RAILS=2
   ulimit -s unlimited

 BIOS settings:
   AMI BIOS version 2.0

 Job Placement:
   In the base run, each MPI job is assigned to a topologically compact
   set of nodes, i.e. the minimal needed number of switches was
   used for each job: 2 switch for up to 256 ranks, 4 switches
   for 512 ranks, 8 switches for 1024 ranks.

 Additional notes regarding interconnect:
   The Infiniband network consists of two independent planes,
   with half the switches in the system allocated to each plane.
   I/O traffic is restricted to one plane, while MPI traffic can
   use both planes.

   SGI manufactures its own switch blades using unmodified Mellanox
   switch ASICs. The test system has SGI QDR_1.5_HYPR_2454 switch
   with Mellanox 36-port QDR Infiniband switch Device 48438
   (InfiniScale IV).

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

126.lammps:  icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG

Base Optimization Flags

C benchmarks:

 -O3   -xSSE2   -ipo   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -xSSE2   -ipo   -no-prec-div   -ansi-alias

Fortran benchmarks:

 -O3   -xSSE2   -ipo   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -xSSE2   -ipo   -no-prec-div

Base Other Flags

C benchmarks:

 -lmpi

C++ benchmarks:

126.lammps:  -lmpi

Fortran benchmarks:

 -lmpi

Benchmarks using both Fortran and C:

 -lmpi

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/SGI_x86_64_Intel12_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/SGI_x86_64_Intel12_flags.xml.
