SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Gateway

GW2000h-GW170hq (Intel Xeon X5570, 2.93 GHz)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 4113 Test date: Mar-2011
Test sponsor: Fraunhofer SCAI Hardware Availability: Jan-2010
Tested by: Steffen Claus Software Availability: Aug-2010

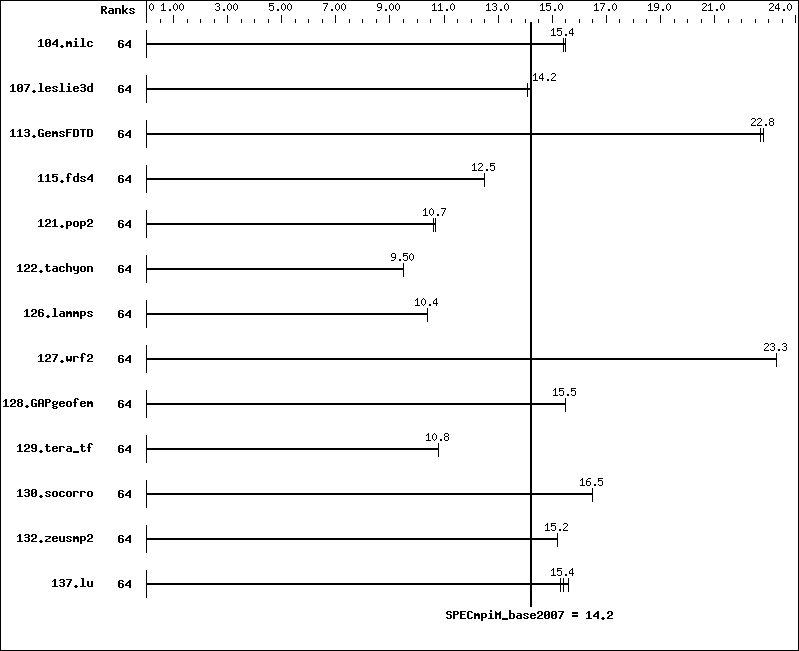

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 64 101 15.4  101 15.4  101 15.5
107.leslie3d 64 369 14.1  368 14.2  368 14.2
113.GemsFDTD 64 278 22.7  277 22.8  277 22.8
115.fds4 64 156 12.5  156 12.5  156 12.5
121.pop2 64 388 10.7  387 10.7  388 10.6
122.tachyon 64 295 9.50 295 9.50 295 9.50
126.lammps 64 281 10.4  281 10.4  281 10.4
127.wrf2 64 334 23.3  334 23.3  334 23.3
128.GAPgeofem 64 133 15.5  134 15.5  133 15.5
129.tera_tf 64 257 10.8  257 10.8  257 10.8
130.socorro 64 231 16.5  231 16.5  231 16.5
132.zeusmp2 64 204 15.2  205 15.2  204 15.2
137.lu 64 240 15.3  238 15.4  236 15.6
Hardware Summary
Type of System: Homogeneous
Compute Node: Gateway GW2000h
Interconnects: Infiniband Switch
Ethernet Switch
Total Compute Nodes: 8
Total Chips: 16
Total Cores: 64
Total Threads: 64
Total Memory: 192 GB
Base Ranks Run: 64
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Compiler 11.1 for Windows (11.1.067)
C++ Compiler: Intel C++ Compiler 11.1 for Windows (11.1.067)
Fortran Compiler: Intel Fortran Compiler 11.1 for Windows (11.1.067)
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: MS MPI Version 4.0 Update 1 Build 8/18/2010
Other MPI Info: --
Pre-processors: No
Other Software: --

Node Description: Gateway GW2000h

Hardware
Number of nodes: 8
Uses of the node: compute
Vendor: Gateway
Model: GW2000h-GW170hq
CPU Name: Intel Xeon X5570 @ 2.93 GHz
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 8
Cores per chip: 4
Threads per core: 1
CPU Characteristics: --
CPU MHz: 2930
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip, 8 MB shared / 4 cores
Other Cache: None
Memory: 24 GB
Disk Subsystem: --
Other Hardware: None
Adapter: Intel 82574L Gigabit Network Connection
Number of Adapters: 2
Slot Type: onboard
Data Rate: Gigabit Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Adapter: Mellanox Technologies MT26418
Number of Adapters: 1
Slot Type: onboard
Data Rate: QDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: Intel 82574L Gigabit Network Connection
Adapter Driver: --
Adapter Firmware: --
Adapter: Mellanox Technologies MT26418
Adapter Driver: Mellanox WinOF (v. 2.1.2)
Adapter Firmware: 2.7.200
Operating System: Windows HPC Server 2008 R2
Service Pack 1
Local File System: --
Shared File System: Network shared Ramdisk
System State: --
Other Software: --

Interconnect Description: Infiniband Switch

Hardware
Vendor: Mellanox
Model: MTS3600
Switch Model: Mellanox MTS3600
Number of Switches: 1
Number of Ports: 36
Data Rate: QDR
Firmware: EFM_PPC_405EX
Topology: Single switch
Primary Use: MPI traffic

Interconnect Description: Ethernet Switch

Hardware
Vendor: Extreme Networks
Model: Summit
Switch Model: Summit X450-24 t
Number of Switches: 1
Number of Ports: 24
Data Rate: Gigabit Ethernet
Firmware: ExtremeWare XOS 11.4.3.4 v1143b4
Topology: Single Switch
Primary Use: CIFS traffic

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpiexec command was used to start MPI jobs. This command starts
   an independent ring of mpd daemons, launches an MPI job, and shuts
   down the mpd ring upon the job termination.

 Batch system:
   The internal Job Scheduler of Windows HPC Server 2008 was used.

 BIOS settings:
   Intel Hyper-Threading Technology (SMT): Disabled (default is Enabled)
   Intel Turbo Boost Technology (Turbo)  : Enabled (default is Enabled)

 RAM configuration:
   Compute nodes have 6x4-GB dual rank DDR3-1333 RAM.
   Head node has 4x2GB single rank DDR2-667 RAM.

 Network:
   Windows HPC Server topology no. 3. Head node and all compute nodes are interconnected
   by 1GB Ethernet and QDR Infiniband. Each interconnect type has one single switch.

Base Compiler Invocation

C benchmarks:

 icl

C++ benchmarks:

126.lammps:  icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   ifort

Base Portability Flags

115.fds4:  /DSPEC_MPI_UC_NO_TRAILING_UNDERSCORE   /fpscomp:general
121.pop2:  /DSPEC_MPI_WINDOWS_ICL
127.wrf2:  /DSPEC_MPI_WINDOWS_ICL   /DSPEC_MPI_COMM_F2C   /DSPEC_MPI_CASE_FLAG   /us   /Qlowercase
129.tera_tf:  /fpscomp:general
130.socorro:  /DSPEC_NO_UNDERSCORE   /DSPEC_MPI_COMM_F2C   /Qlowercase
132.zeusmp2:  /DSPEC_MPI_WINDOWS_ICL   /fpscomp:general

Base Optimization Flags

C benchmarks:

 /O3   /QxSSE4.2   /Qipo   /Qprec-div-   /F3950000000

C++ benchmarks:

126.lammps:  /O3   /QxSSE4.2   /Qipo   /Qprec-div-   /F3950000000

Fortran benchmarks:

 /O3   /QxSSE4.2   /Qipo   /Qprec-div-   /F3950000000

Benchmarks using both Fortran and C:

 /O3   /QxSSE4.2   /Qipo   /Qprec-div-   /F3950000000

Base Other Flags

C benchmarks:

 /I:C:/Program Files/Microsoft HPC Pack 2008 SDK/Include   /link   /libpath:C:/Program Files/Microsoft HPC Pack 2008 SDK/Lib/amd64 msmpifec.lib msmpifmc.lib msmpi.lib   /out:options.exe

C++ benchmarks:

126.lammps:  /I:C:/Program Files/Microsoft HPC Pack 2008 SDK/Include   /link   /libpath:C:/Program Files/Microsoft HPC Pack 2008 SDK/Lib/amd64 msmpifec.lib msmpifmc.lib msmpi.lib   /out:options.exe

Fortran benchmarks:

 /I:C:/Program Files/Microsoft HPC Pack 2008 SDK/Include   /link   /libpath:C:/Program Files/Microsoft HPC Pack 2008 SDK/Lib/amd64 msmpifec.lib msmpifmc.lib msmpi.lib   /out:options.exe

Benchmarks using both Fortran and C:

 /I:C:/Program Files/Microsoft HPC Pack 2008 SDK/Include   /link   /libpath:C:/Program Files/Microsoft HPC Pack 2008 SDK/Lib/amd64 msmpifec.lib msmpifmc.lib msmpi.lib   /out:options.exe

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/dell.ic10.windows.flags.20120720.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/dell.ic10.windows.flags.20120720.xml.
