SPEC® MPIM2007 Result

IBM

iDP (Intel Xeon L5420, 2.50 GHz)

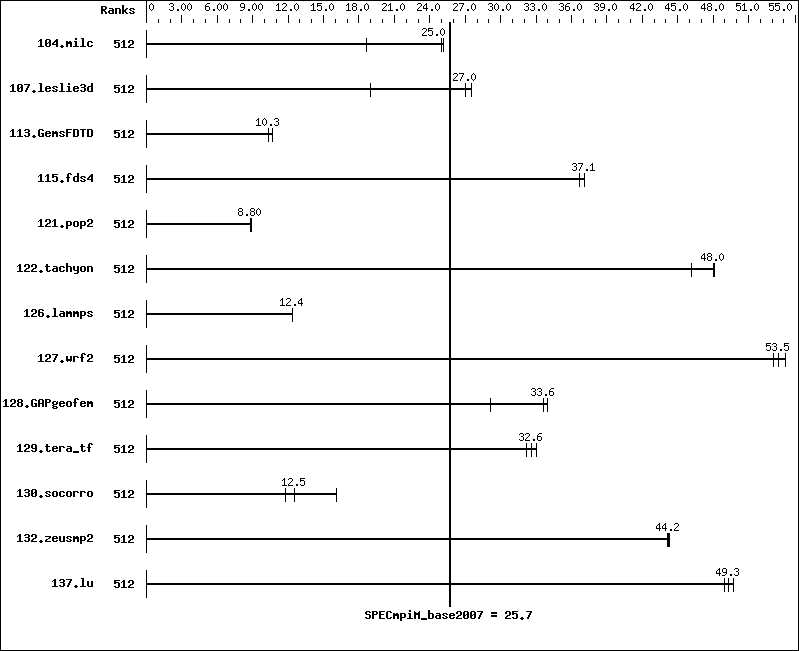

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc	512	62.2	25.2	62.7	25.0	84.0	18.6
107.leslie3d	512	190	27.5	194	27.0	274	19.0
113.GemsFDTD	512	611	10.3	590	10.7	610	10.3
115.fds4	512	53.2	36.7	52.6	37.1	52.6	37.1
121.pop2	512	467	8.80	469	8.80	466	8.90
122.tachyon	512	60.5	46.2	58.3	48.0	58.1	48.1
126.lammps	512	235	12.4	235	12.4	236	12.4
127.wrf2	512	146	53.5	144	54.1	147	53.1
128.GAPgeofem	512	60.8	34.0	70.9	29.1	61.5	33.6
129.tera_tf	512	86.0	32.2	84.9	32.6	83.9	33.0
130.socorro	512	305	12.5	323	11.8	238	16.1
132.zeusmp2	512	70.1	44.3	70.2	44.2	70.4	44.1
137.lu	512	74.0	49.7	75.0	49.0	74.5	49.3

Software Summary
C Compiler:	Intel C++ Compiler 11.1 for Windows (11.1.038)
C++ Compiler:	Intel C++ Compiler 11.1 for Windows (11.1.038)
Fortran Compiler:	Intel Fortran Compiler 11.1 for Windows (11.1.038)
Base Pointers:	64-bit
Peak Pointers:	64-bit
MPI Library:	MS MPI 1.0.6
Other MPI Info:	None
Pre-processors:	No
Other Software:	None

Hardware
Number of nodes:	64
Uses of the node:	compute
Vendor:	IBM
Model:	System x iDataPlex dx340
CPU Name:	Intel Xeon L5420
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	8
Cores per chip:	4
Threads per core:	1
CPU Characteristics:	1333 MHz FSB
CPU MHz:	2500
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	32 GB (FBDIMM 8x4-GB 667 MHz)
Disk Subsystem:	Western Digital 160 GB SATA WD160YS-23SHBO
Other Hardware:	None
Adapter:	Intel Corporation 80003ES2LAN Gigabit Ethernet Controller (Copper) (rev 01)
Number of Adapters:	2
Slot Type:	--
Data Rate:	Gigabit Ethernet
Ports Used:	1
Interconnect Type:	Ethernet
Adapter:	Mellanox Technologies MT26418 [ConnectX IB DDR, PCIe 2.0 5GT/s] (rev a0)
Number of Adapters:	1
Slot Type:	PCIe x8 Gen2
Data Rate:	InfiniBand 4x DDR
Ports Used:	1
Interconnect Type:	InfiniBand

Software
Adapter:	Intel Corporation 80003ES2LAN Gigabit Ethernet Controller (Copper) (rev 01)
Adapter Driver:	OS default (v.9.11.5.7)
Adapter Firmware:	2.4-0
Adapter:	Mellanox Technologies MT26418 [ConnectX IB DDR, PCIe 2.0 5GT/s] (rev a0)
Adapter Driver:	Mellanox WinOF (v. 2.0.0)
Adapter Firmware:	2.5.0
Operating System:	Windows HPC Server 2008 Service Pack 2
Local File System:	Windows/NTFS
Shared File System:	Network shared NTFS directory
System State:	Multi-User
Other Software:	--

Hardware
Vendor:	ProCurve Networking
Model:	HP ProCurve Switch 5406zl Intelligent Edge J8697A
Switch Model:	HP ProCurve Switch 5406zl Intelligent Edge J8697A
Number of Switches:	1
Number of Ports:	144
Data Rate:	1Gbps Ethernet
Firmware:	--
Topology:	Single switch
Primary Use:	Cluster File System

The config file option 'submit' was used.

icl

126.lammps:

icl

ifort

icl ifort

115.fds4:	/DSPEC_MPI_UC_NO_TRAILING_UNDERSCORE /fpscomp:general
121.pop2:	/DSPEC_MPI_WINDOWS_ICL
127.wrf2:	/DSPEC_MPI_CASE_FLAG /DSPEC_MPI_WINDOWS_ICL /DSPEC_MPI_COMM_F2C /us /Qlowercase
129.tera_tf:	/fpscomp:general
130.socorro:	/DSPEC_NO_UNDERSCORE /DSPEC_MPI_COMM_F2C /Qlowercase
132.zeusmp2:	/DSPEC_MPI_WINDOWS_ICL /fpscomp:general
