SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Intel Corporation

Atlantis (Intel Xeon X5482, 3.20 GHz)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 13 Test date: Mar-2009
Test sponsor: Intel Corporation Hardware Availability: Sep-2008
Tested by: Pavel Shelepugin Software Availability: Jun-2009

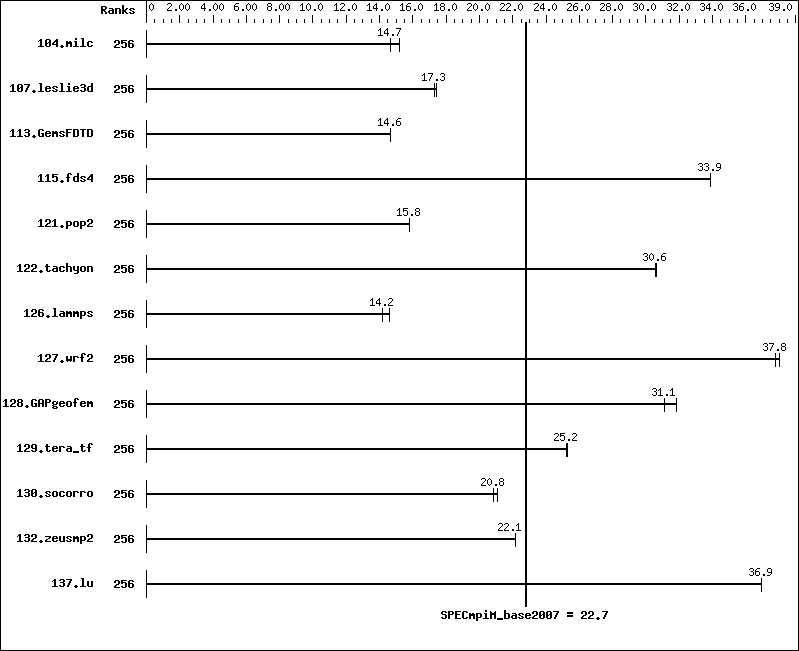

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 256 107   14.7 103   15.2
107.leslie3d 256 300   17.4 301   17.3
113.GemsFDTD 256 431   14.6 430   14.7
115.fds4 256 57.5 33.9 57.6 33.9
121.pop2 256 261   15.8 262   15.8
122.tachyon 256 91.4 30.6 91.4 30.6
126.lammps 256 200   14.6 205   14.2
127.wrf2 256 205   38.0 206   37.8
128.GAPgeofem 256 66.3 31.1 64.9 31.8
129.tera_tf 256 110   25.3 110   25.2
130.socorro 256 181   21.1 183   20.8
132.zeusmp2 256 140   22.1 140   22.2
137.lu 256 99.4 37.0 99.5 36.9
Hardware Summary
Type of System: Homogeneous
Compute Node: Atlantis Node
Interconnects: IB Switch
Gigabit Ethernet
File Server Node: HOME
Total Compute Nodes: 32
Total Chips: 64
Total Cores: 256
Total Threads: 256
Total Memory: 512 GB
Base Ranks Run: 256
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Compiler 11.1 for Linux
C++ Compiler: Intel C++ Compiler 11.1 for Linux
Fortran Compiler: Intel Fortran Compiler 11.1 for Linux
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: Intel MPI Library 3.2 for Linux
Other MPI Info: None
Pre-processors: No
Other Software: Intel MPI Library 3.2 for Linux Multi-Purpose
Daemon (MPD)

Node Description: Atlantis Node

Hardware
Number of nodes: 32
Uses of the node: compute
Vendor: Intel
Model: SR1560SF
CPU Name: Intel Xeon X5482
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 8
Cores per chip: 4
Threads per core: 1
CPU Characteristics: 1600 MHz FSB
CPU MHz: 3200
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (FBDIMM 8x2-GB 667 MHz)
Disk Subsystem: Seagate Barracuda ES 250 GB ST3250620NS
Other Hardware: None
Adapter: Intel (ESB2) 82563EB Dual-Port Gigabit Ethernet
Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Adapter: Mellanox MHGH29-XTC
Number of Adapters: 1
Slot Type: PCIe x16 Gen2
Data Rate: InfiniBand 4x DDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: Intel (ESB2) 82563EB Dual-Port Gigabit Ethernet
Controller
Adapter Driver: e1000
Adapter Firmware: None
Adapter: Mellanox MHGH29-XTC
Adapter Driver: OFED 1.3.1
Adapter Firmware: 2.5.0
Operating System: RedHat EL 5 Update 2, kernel 2.6.18-92
Local File System: Linux/ext2
Shared File System: NFS
System State: Multi-User
Other Software: PBS Pro 8.0

Node Description: HOME

Hardware
Number of nodes: 1
Uses of the node: fileserver
Vendor: Intel
Model: SSR212CC
CPU Name: Intel Xeon
CPU(s) orderable: 2 chips
Chips enabled: 2
Cores enabled: 2
Cores per chip: 1
Threads per core: 1
CPU Characteristics: --
CPU MHz: 2800
Primary Cache: 12 KB I + 16 KB D on chip per chip
Secondary Cache: 1 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 2 GB
Disk Subsystem: 3 disks, 500GB/disk, 1.5TB total, 1TB available
Other Hardware: None
Adapter: Intel 82546GB Dual-Port Gigabit Ethernet
Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Software
Adapter: Intel 82546GB Dual-Port Gigabit Ethernet
Controller
Adapter Driver: e1000
Adapter Firmware: N/A
Operating System: RedHat EL 4 Update 4
Local File System: Linux/ext2
Shared File System: NFS
System State: Multi-User
Other Software: None

Interconnect Description: IB Switch

Hardware
Vendor: Cisco
Model: Cisco SFS 9120
Switch Model: Cisco SFS 9120
Number of Switches: 1
Number of Ports: 120
Data Rate: InfiniBand 4x DDR
Firmware: 4.1.1.1.11
Topology: Single switch
Primary Use: MPI traffic

Interconnect Description: Gigabit Ethernet

Hardware
Vendor: Cisco
Model: Cisco Catalyst 4506
Switch Model: Cisco Catalyst 4506
Number of Switches: 1
Number of Ports: 144
Data Rate: 1Gbps Ethernet
Firmware: --
Topology: Star
Primary Use: Cluster File System

Submit Notes

The config file option 'submit' was used.

General Notes

PBS Pro was used for job submission. It has no impact on performance.
  Can be found at: http://www.altair.com

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX

Base Optimization Flags

C benchmarks:

 -O3   -xT   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -xT   -no-prec-div

Fortran benchmarks:

 -O3   -xT   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -xT   -no-prec-div

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel111_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/EM64T_Intel111_flags.xml.
