SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

QLogic, TeamHPC

QLogic Benchmark Cluster
with TeamHPC compute nodes

SPECmpiM_peak2007 = Not Run

MPI2007 license: 0018 Test date: Jul-2008
Test sponsor: QLogic Corporation Hardware Availability: May-2008
Tested by: QLogic Performance Engineering Software Availability: Jul-2008

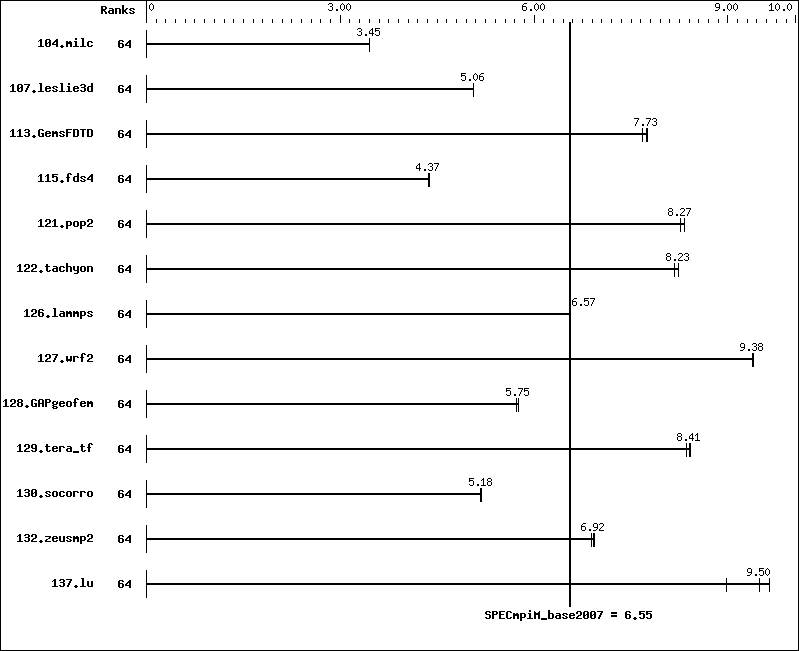

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 64 453 3.45 453 3.45 454 3.45
107.leslie3d 64 1030 5.07 1031 5.06 1031 5.06
113.GemsFDTD 64 814 7.75 821 7.68 816 7.73
115.fds4 64 446 4.37 447 4.37 445 4.39
121.pop2 64 500 8.26 496 8.32 499 8.27
122.tachyon 64 340 8.23 339 8.24 342 8.17
126.lammps 64 444 6.56 444 6.57 444 6.57
127.wrf2 64 830 9.39 831 9.38 832 9.38
128.GAPgeofem 64 359 5.75 360 5.73 358 5.76
129.tera_tf 64 329 8.41 329 8.42 331 8.36
130.socorro 64 738 5.17 736 5.18 735 5.19
132.zeusmp2 64 449 6.92 447 6.93 450 6.89
137.lu 64 381 9.65 410 8.97 387 9.50
Hardware Summary
Type of System: Homogeneous
Compute Node: TeamHPC RM2UDSEB-DG
Interconnect: QLogic InfiniBand HCAs and switches
File Server Node: FusionSA
Head Node: FusionSA
Total Compute Nodes: 8
Total Chips: 16
Total Cores: 64
Total Threads: 64
Total Memory: 128 GB
Base Ranks Run: 64
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C Compiler for Linux
Version 10.1, Build 20080312
C++ Compiler: Intel C++ Compiler for Linux
Version 10.1, Build 20080312
Fortran Compiler: Intel Fortran Compiler for Linux
Version 10.1, Build 20080312
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: QLogic MPI 2.2
Other MPI Info: None
Pre-processors: No
Other Software: QLogic InfiniPath 2.2 (OFED 1.3)

Node Description: TeamHPC RM2UDSEB-DG

Hardware
Number of nodes: 8
Uses of the node: compute
Vendor: TeamHPC
Model: RM2UDSEB-DG (Asus DSEB-DG motherboard)
CPU Name: Intel Xeon E5472
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 8
Cores per chip: 4
Threads per core: 1
CPU Characteristics: Quad-Core, 3.0GHz, 1600MHz FSB
CPU MHz: 3000
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2GB PC2-6400 FB-DIMMs)
Disk Subsystem: 1 x 80GB SATA II with 8MB cache
Other Hardware: None
Adapter: QLogic QLE7280 InfiniBand DDR
(PCIe x16 Gen1 2.5 GT/s)
Number of Adapters: 1
Slot Type: PCIe x16 Gen2
Data Rate: InfiniBand 4x DDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: QLogic QLE7280 InfiniBand DDR
(PCIe x16 Gen1 2.5 GT/s)
Adapter Driver: QLogic InfiniPath 2.2 (OFED 1.3)
Adapter Firmware: None
Operating System: CentOS release 5 (x86_64)
Kernel 2.6.18-53.1.14.el5
Local File System: ext3
Shared File System: NFSv3 IPoIB
System State: Multi-user, run level 3
Other Software: None

Node Description: FusionSA

Hardware
Number of nodes: 1
Uses of the node: head, file server
Vendor: Western Scientific
Model: FusionSA (storage appliance) with
Tyan Thunder n6650W (S2915) motherboard and
LSI Logic MegaRAID SAS 8408E RAID controller
CPU Name: AMD Opteron 2218
CPU(s) orderable: 1,2 chip
Chips enabled: 2
Cores enabled: 4
Cores per chip: 2
Threads per core: 1
CPU Characteristics: --
CPU MHz: 2600
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2 GB PC2-5300 ECC)
Disk Subsystem: 8 x 73 GB SAS 3Gb/s 15K RPM
Other Hardware: None
Adapter: QLogic QLE7240 InfiniBand DDR
(PCIe x8 Gen1 2.5 GT/s)
Number of Adapters: 1
Slot Type: PCIe x16 Gen1 (x8 signal)
Data Rate: InfiniBand 4x DDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: QLogic QLE7240 InfiniBand DDR
(PCIe x8 Gen1 2.5 GT/s)
Adapter Driver: QLogic InfiniPath 2.2 (OFED 1.3)
Adapter Firmware: None
Operating System: Red Hat Enterprise Linux AS release 4 (Update 5)
Kernel 2.6.9-55.ELsmp
Local File System: Software RAID 0, ext3
Shared File System: None
System State: Multi-User
Other Software: None

Interconnect Description: QLogic InfiniBand HCAs and switches

Hardware
Vendor: QLogic
Model: QLogic 7200 Series TrueScale HCAs,
Switch Model: QLogic SilverStorm 9024 Switch
Number of Switches: 1
Number of Ports: 24
Data Rate: InfiniBand 4x DDR
Firmware: Switch chassis: firmware version 4.2
Switch silicon: Anafa II Firmware 1.0.4
Topology: Star, one switch
Primary Use: MPI, file server

General Notes

Required alternate sources:
   129.tera_tf: fixbuffer
Alternate source:
   104.milc:    calloc
Enabled 4K IB MTUs with QLogic SilverStorm 9024 switch
   parameter setting "ismChassisSetMtu 5"
BIOS parameter Snoop Filter set to "Disabled" on the compute nodes
The mpirun  rcfile contained "ulimit -s unlimited"

Base Compiler Invocation

C benchmarks:

 /usr/bin/mpicc -cc=icc

C++ benchmarks:

126.lammps:  /usr/bin/mpicxx -CC=icpc

Fortran benchmarks:

 /usr/bin/mpif90 -f90=ifort

Benchmarks using both Fortran and C:

 /usr/bin/mpicc -cc=icc   /usr/bin/mpif90 -f90=ifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
127.wrf2:  -DSPEC_MPI_LINUX   -DSPEC_MPI_CASE_FLAG

Base Optimization Flags

C benchmarks:

 -O3   -ipo   -xT   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -xT

Fortran benchmarks:

 -O3   -ipo   -xT   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -ipo   -xT   -no-prec-div

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/QLogic_Core_Intel101_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/QLogic_Core_Intel101_flags.xml.
