SPECjbb2015
Copyright © 2015-2025 Standard Performance Evaluation Corporation
Lenovo Global Technology ThinkSystem SR665 V3 1000126 SPECjbb2015-Distributed max-jOPS
647607 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Jan 9, 2025
SPEC license #: 9017 Hardware Availability: Feb-2025 Software Availability: Dec-2024 Publication: Thu Jan 23 15:12:30 EST 2025
Benchmark Results Summary

SPECjbb2015-Distributed: Distributed JVMs/Single or Multi Hosts
(# of groups: 8)

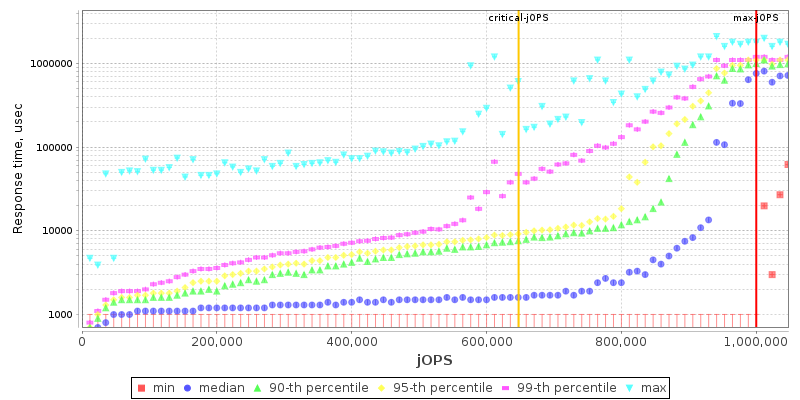

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores256
Total Threads512
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameThinkSystem SR665 V3
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableFeb-2025
ModelThinkSystem SR665 V3
Form Factor2U
CPU NameAMD EPYC 9745
CPU Characteristics128 Core, 2.4 GHz, 256 MB L3 Cache(Max. Boost Clock Up to 3.7 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System256
Cores Per Chip128
Threads Per System512
Threads Per Core2
VersionKAE131I
CPU Frequency (MHz)2400
Primary Cache32KB(I)+48KB(D) on chip per core
Secondary Cache1MB (I+D) on chip per core
Tertiary Cache256MB (I+D) on chip per chip
Other CacheNone
Disk1 x 480GB SATA SSD
File SystemNTFS
Memory Amount (GB)1536
# and size of DIMM(s)24 x 64 GB
Memory Details64 GB 2Rx4 PC5-6400B-R, running at 6000 MHz
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)1 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2022 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 21H2(OS Build 20348.2966)
AvailableDec-2024
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 23.0.1
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 23.0.1
AvailableOct-2024
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Driver Description
Hardware hw_2
NameThinkSystem SR665
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableAug-2022
ModelThinkSystem SR665
Form Factor2U
CPU NameAMD EPYC 7773X
CPU Characteristics64 core, 2.20GHz, 768 MB L3 Cache (Max Boost Clock up to 3.50GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionD8E137F
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache512KB (I+D) on chip per core
Tertiary Cache768MB (I+D) on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemNTFS
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)1 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameWindows Server 2022 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 21H2(OS Build 20348.2966)
AvailableDec-2024
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 23.0.1
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 23.0.1
AvailableOct-2024
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance and then set to Custom Mode
  • NUMA Nodes per Socket set to NPS4
  • P-State set to Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(8)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms120g -Xmx120g -Xmn118g -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=90 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=64 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:TLABAllocationWeight=2 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4
Tuning Affinitized each Backend JVM to a single memory node.
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
  • start /b /NODE 4
  • start /b /NODE 5
  • start /b /NODE 6
  • start /b /NODE 7
Notes None
Driver config_2 Configuration
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance and then set to Custom Mode
  • NUMA Nodes per Socket set to NPS4
  • L1 Stream HW Prefetcher set to Disable
  • L2 Stream HW Prefetcher set to Disable
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(8)
OS Image Description os_2
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 988360 1000126 1011892 1023659 1035425
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 511829 594192 660867 735387 770685 647607
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 35299 / 47065 11766 / 23532 - / 11766 - / 11766 - / 11766 - / 11766
1000us 882464 / 894230 70597 / 82363 23532 / 35299 23532 / 35299 11766 / 23532 - / 11766
5000us 953061 / 964828 870698 / 882464 458881 / 470648 376518 / 388284 270622 / 282389 47065 / 35299
10000us 976594 / 988360 905997 / 917763 753036 / 764802 670673 / 682439 505946 / 517712 47065 / 35299
25000us 976594 / 988360 929529 / 941295 858932 / 870698 800101 / 811867 588309 / 600076 47065 / 35299
50000us 976594 / 988360 929529 / 941295 870698 / 882464 823633 / 835399 670673 / 611842 235324 / 70597
75000us 976594 / 988360 929529 / 941295 870698 / 882464 835399 / 847166 741270 / 729504 411817 / 305921
100000us 976594 / 988360 929529 / 941295 882464 / 894230 835399 / 847166 776569 / 764802 494180 / 505946
200000us 988360 / 1000126 953061 / 964828 905997 / 917763 882464 / 894230 823633 / 835399 741270 / 576543
500000us 1000126 / - 976594 / 988360 929529 / 941295 929529 / 941295 894230 / 905997 835399 / 576543
1000000us 1000126 / - 1000126 / - 1000126 / - 976594 / 988360 953061 / 941295 905997 / 611842

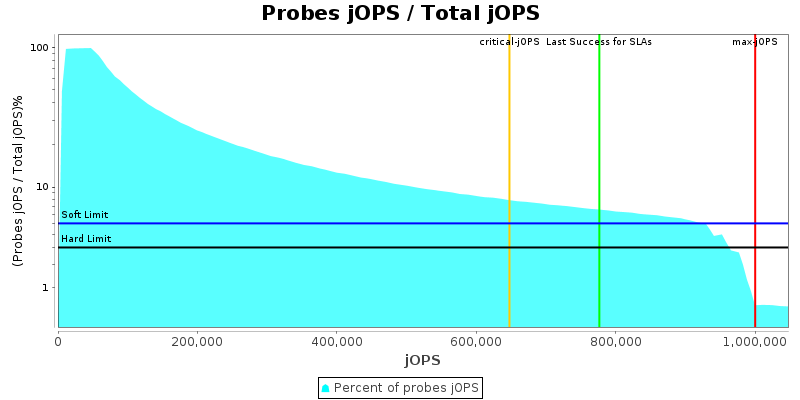

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 180 140 140 140 140 140 140 140 140 140 140 140 140 140 140 140 140
specjbb.comm.connect.selector.runner.count 0 24 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
specjbb.comm.connect.worker.pool.max 256 256 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45
specjbb.comm.connect.worker.pool.min 1 1 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30
specjbb.controller.host localhost 192.168.5.4
specjbb.customerDriver.threads 64 {probe=64, saturate=192, service=84}
specjbb.forkjoin.workers 64 {Tier1=216, Tier2=28, Tier3=25}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 64 8
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 1176619 IR
High-bound (settled) is 1034607 IR
Copyright © 2015-2025 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]
