SPECjbb2015 Report for jbb2015-20250108-01531 : 271203 max-jOPS ; 156063 critical-jOPS

SUT Description

Hardware hw_1
Name	meta brain NF3180G8
Vendor	IEIT Systems Co., Ltd.
Vendor URL	https://www.ieisystem.com/
Available	Oct-2024
Model	meta brain NF3180G8
Form Factor	1U
CPU Name	Intel Xeon 6780E
CPU Characteristics	144 core, 2.20 GHz, 108 MB L3 Cache (Turbo boost Technology up to 3.00 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	144
Cores Per Chip	144
Threads Per System	144
Threads Per Core	1
Version	00.17.02
CPU Frequency (MHz)	2200
Primary Cache	64 KB(I)+32 KB(D)on chip per core
Secondary Cache	4 MB (I+D) on chip per 4 core
Tertiary Cache	108 MB (I+D) on chip per chip
Other Cache	None
Disk	1x 4TB NVMe SSD
File System	xfs
Memory Amount (GB)	512
# and size of DIMM(s)	8 x 64 GB
Memory Details	8 x 64 GB 2Rx4 PC5-6400B-R
# and type of Network Interface Cards (NICs)	1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)	2 x 1300W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 21.0.5
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 21.0.5
Available	Oct-2024
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Tuning Power Performance Tuning=BIOS Controls EPB ENERGY_PERF_BIAS_CFG mode=Performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	ulimit -n 131072 cpupower frequency-set -g performance echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 16000000 > /sys/kernel/debug/sched/latency_ns echo 1000 > /sys/kernel/debug/sched/migration_cost_ns echo 28000000 > /sys/kernel/debug/sched/min_granularity_ns echo 9 > /sys/kernel/debug/sched/nr_migrate echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /sys/kernel/debug/sched/tunable_scaling echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms29g -Xmx29g -Xmn27g -XX:+UseParallelGC -XX:+UseTransparentHugePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -XX:MaxGCPauseMillis=500 -XX:TargetSurvivorRatio=95 -XX:LargePageSizeInBytes=1G -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -server -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -XX:ParallelGCThreads=36
Tuning	numactl used to affinitize each Backend JVM to 36 cores, eg: numactl --physcpubind=0-35 --localalloc numactl --physcpubind=36-71 --localalloc numactl --physcpubind=72-107 --localalloc numactl --physcpubind=108-143 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	numactl used to affinitize each TxInjector JVM to 36 cores, eg: numactl --physcpubind=0-35 --localalloc numactl --physcpubind=36-71 --localalloc numactl --physcpubind=72-107 --localalloc numactl --physcpubind=108-143 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	268287	271203	274119	277035	279951

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	100607	129769	170595	193925	214338	156063

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	2916 / 5832	- / 2916	- / 2916	- / 2916	- / 2916	- / 2916
1000us	189550 / 192467	11665 / 14581	5832 / 8748	5832 / 8748	- / 2916	- / 2916
5000us	250790 / 253706	224544 / 227460	163305 / 131227	110814 / 75820	55407 / 58323	5832 / 2916
10000us	250790 / 253706	230377 / 233293	186634 / 189550	163305 / 160389	102066 / 99149	5832 / 2916
25000us	256622 / 259538	242041 / 244957	215796 / 218712	198299 / 201215	128311 / 131227	5832 / 2916
50000us	256622 / 259538	247874 / 250790	224544 / 227460	212880 / 215796	169137 / 172053	46659 / 20413
75000us	259538 / 262454	247874 / 250790	230377 / 233293	221628 / 224544	192467 / 195383	107898 / 20413
100000us	262454 / 265371	250790 / 253706	233293 / 236209	227460 / 230377	212880 / 215796	154556 / 119563
200000us	265371 / 268287	256622 / 259538	244957 / 247874	239125 / 242041	230377 / 233293	192467 / 195383
500000us	271203 / -	262454 / 265371	256622 / 259538	253706 / 256622	250790 / 253706	239125 / 236209
1000000us	271203 / -	271203 / -	265371 / 268287	262454 / 265371	262454 / 265371	256622 / 259538

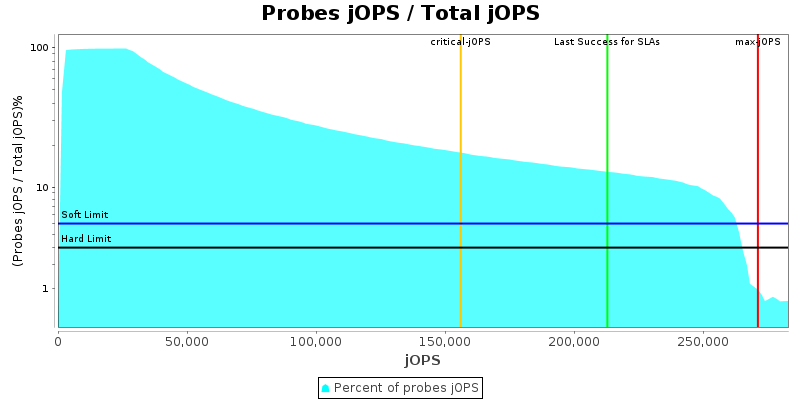

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

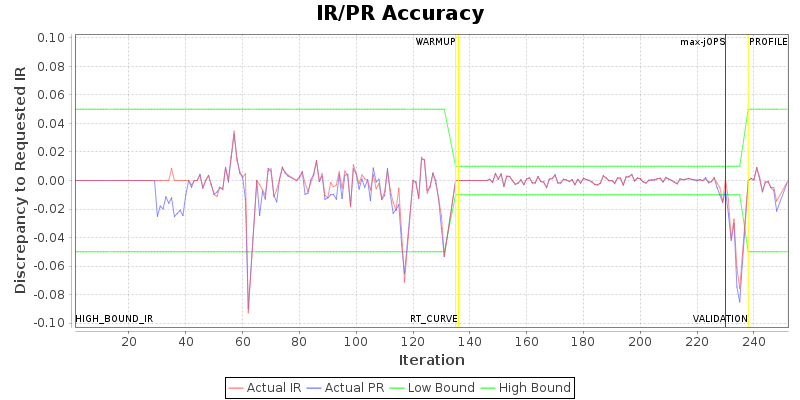

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	232
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	144	{Tier1=256, Tier2=3, Tier3=36}
specjbb.group.count	1	4
specjbb.mapreducer.pool.size	144	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 291616 IR

High-bound (settled) is 282458 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

IEIT Systems Co., Ltd. meta brain NF3180G8	271203 SPECjbb2015-MultiJVM max-jOPS 156063 SPECjbb2015-MultiJVM critical-jOPS
Tested by: IEIT Systems Co., Ltd.	Test Sponsor: IEIT Systems Co., Ltd.	Test location: Jinan, China	Test date: Nov 15, 2024
SPEC license #: 3358	Hardware Availability: Oct-2024	Software Availability: Oct-2024	Publication: Thu Jan 23 15:12:30 EST 2025


SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 4) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
