SPECjbb2015
Copyright © 2015-2024 Standard Performance Evaluation Corporation
Dell Inc. PowerEdge R6715 175588 SPECjbb2015-Distributed max-jOPS
18097 SPECjbb2015-Distributed critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: Sep 26,2024
SPEC license #: 6573 Hardware Availability: Nov-2024 Software Availability: Jul-2024 Publication: Thu Oct 10 13:03:35 EDT 2024
Benchmark Results Summary

SPECjbb2015-Distributed: Distributed JVMs/Single or Multi Hosts
(# of groups: 4)

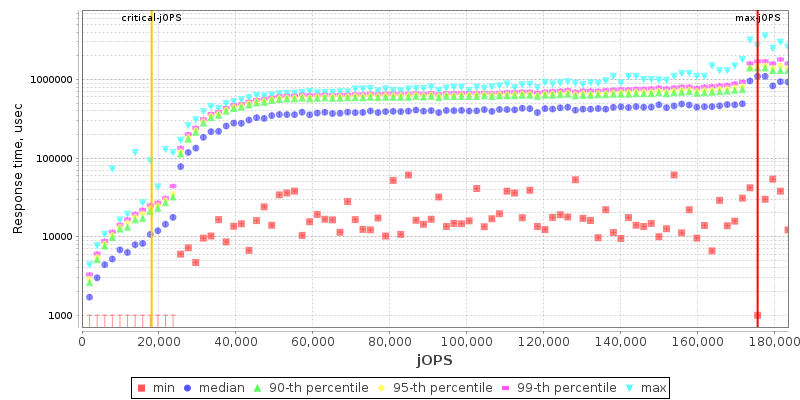

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores32
Total Threads64
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-Virtual

SUT Description
Hardware hw_1
NameDell Inc. PowerEdge R6715
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableNov-2024
ModelPowerEdge R6715
Form Factor1U Rack
CPU NameAMD EPYC 9355P
CPU Characteristics32 core, 3.55 GHz, 256 MB L3 Cache (Max. Boost Clock up to 4.40GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System32
Cores Per Chip32
Threads Per System64
Threads Per Core2
Version0.2.4
CPU Frequency (MHz)3550
Primary Cache32 KB (I) + 48 KB (D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache256 MB (I+D) on chip per chip
Other CacheNone
Disk1 x M.2 SSD 480GB (Boss card)
File Systemntfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 2Rx4 PC5-6400B-R (slots A1-12 populated), running at 5200 MT/s
# and type of Network Interface Cards (NICs)1 x Broadcom BCM57504 NetXtreme-E Ethernet 25Gbit/s quad port
Power Supply Quantity and Rating (W)1 x 1500
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2022 Standard
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 21H2(OS Build 20348.1251)
AvailableNov-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle JAVA SE 22.0.2
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 22.0.2
AvailableJul-2024
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Driver Description
Hardware hw_2
NameDell Inc. PowerEdge R7715
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableNov-2024
ModelPowerEdge R7715
Form Factor2U Rack
CPU NameAMD EPYC 9135
CPU Characteristics16 core, 3.65 GHz, 64 MB (I+D) L3 Cache (Max. Boost Clock up to 4.30GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System16
Cores Per Chip16
Threads Per System32
Threads Per Core2
Version0.2.4
CPU Frequency (MHz)3650
Primary Cache32 KB (I) + 48 KB (D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache64 MB (I+D) on chip per chip
Other CacheNone
Disk1 x M.2 SSD 480GB (Boss card)
File Systemntfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 2Rx4 PC5-6400B-R (slots A1-12 populated), running at 6000 MT/s
# and type of Network Interface Cards (NICs)1 x Broadcom BCM57504 NetXtreme-E Ethernet 25Gbit/s quad port
Power Supply Quantity and Rating (W)1 x 1500
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameWindows Server 2022 Standard
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 21H2(OS Build 20348.1251)
AvailableNov-2022
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle JAVA SE 22.0.2
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 22.0.2
AvailableJul-2024
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Dram Refresh Delay - Performance
  • DIMM Self Healing (Post Package Repair) on Uncorrectable Memory Error - Disabled
  • Correctable Error Logging - Disabled
  • Virtualization Technology - Disabled
  • L2 Stream HW Prefetcher - Disabled
  • NUMA Nodes Per Socket - 4
  • L3 cache as NUMA Domain- Disabled
  • TDP Control- Manual
  • Customized cTDP - 280
  • Customized PPT - 280
  • System Profile - Custom
  • CPU Power Management - Maximum Performance
  • C-States - Disabled
  • Determinism Control- Manual
  • Determinism Slider - Power Determinism
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(4)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Lock Pages in Memory is Enabled
  • Processor scheduling is set to Programs
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms120g -Xmx120g -Xmn118g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=100 -XX:ParallelGCThreads=8 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -Xnoclassgc
Tuning Affinitized each Backend JVM to a single memory node:
  • Group1: start /b /NODE 0
  • Group2: start /b /NODE 1
  • Group3: start /b /NODE 2
  • Group4: start /b /NODE 3
Notes None
Driver config_2 Configuration
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Dram Refresh Delay - Performance
  • DIMM Self Healing (Post Package Repair) on Uncorrectable Memory Error - Disabled
  • Correctable Error Logging - Disabled
  • Virtualization Technology - Disabled
  • L2 Stream HW Prefetcher - Disabled
  • NUMA Nodes Per Socket - 4
  • L3 cache as NUMA Domain- Disabled
  • TDP Control- Manual
  • Customized cTDP - 280
  • Customized PPT - 280
  • System Profile - Custom
  • CPU Power Management - Maximum Performance
  • C-States - Disabled
  • Determinism Control- Manual
  • Determinism Slider - Power Determinism
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(4)
OS Image Description os_2
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Lock Pages in Memory is Enabled
  • Processor scheduling is set to Programs
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=4
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=4
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 173615 175588 177561 179534 181507
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 6905 18742 24661 24661 24661 18097
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1973 - / 1973 - / 1973 - / 1973 - / 1973 - / 1973
1000us - / 1973 - / 1973 - / 1973 - / 1973 - / 1973 - / 1973
5000us 21702 / 23675 5919 / 7892 1973 / 3946 1973 / 3946 1973 / 3946 1973 / 3946
10000us 23675 / 25648 15783 / 17756 7892 / 9864 5919 / 7892 5919 / 7892 3946 / 5919
25000us 23675 / 25648 23675 / 25648 19729 / 21702 19729 / 21702 17756 / 19729 11837 / 7892
50000us 25648 / 27621 23675 / 25648 23675 / 25648 23675 / 25648 23675 / 25648 19729 / 7892
75000us 29593 / 31566 23675 / 25648 23675 / 25648 23675 / 25648 23675 / 25648 19729 / 13810
100000us 35512 / 33539 25648 / 27621 23675 / 25648 23675 / 25648 23675 / 25648 19729 / 13810
200000us 136130 / 86808 31566 / 33539 27621 / 29593 27621 / 29593 25648 / 27621 25648 / 27621
500000us 175588 / - 171642 / 173615 43404 / 45377 43404 / 45377 41431 / 43404 37485 / 39458
1000000us 175588 / - 173615 / 175588 171642 / 173615 171642 / 173615 171642 / 173615 151913 / 138103

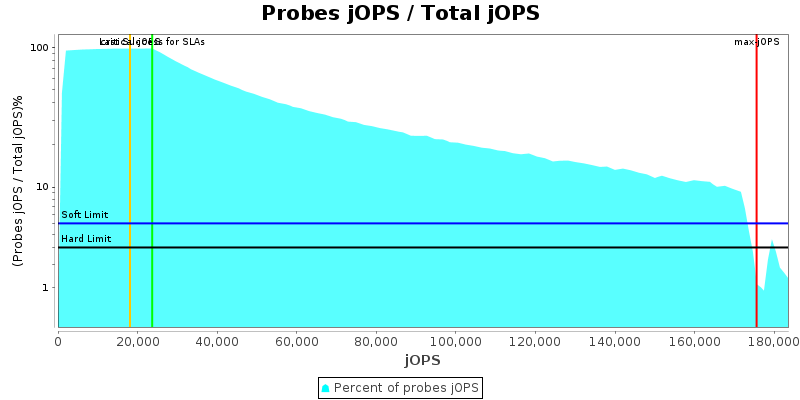

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

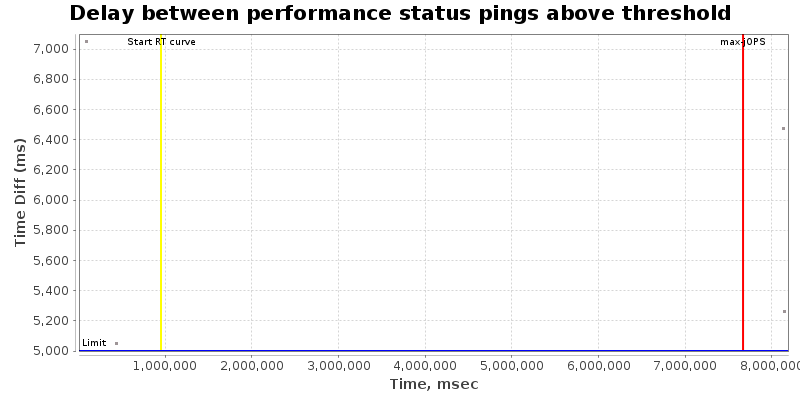

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM2 Group3.Backend.beJVM Group3.TxInjector.txiJVM3 Group4.Backend.beJVM Group4.TxInjector.txiJVM4
specjbb.comm.connect.client.pool.size 256 256 48 48 48 48 48 48 48 48
specjbb.comm.connect.selector.runner.count 0 16 1 1 1 1 1 1 1 1
specjbb.comm.connect.worker.pool.max 256 256 40 40 40 40 40 40 40 40
specjbb.comm.connect.worker.pool.min 1 1 40 40 40 40 40 40 40 40
specjbb.controller.host localhost 192.168.0.15
specjbb.customerDriver.threads 64 {probe=130, saturate=300, service=160}
specjbb.forkjoin.workers 32 {Tier1=225, Tier2=28, Tier3=28}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 32 12
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 197290 IR
High-bound (settled) is 182877 IR
