Dell Inc. PowerEdge R6715 177501 SPECjbb2015-Distributed max-jOPS
145727 SPECjbb2015-Distributed critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: Sep 29,2024
SPEC license #: 6573 Hardware Availability: Nov-2024 Software Availability: Jul-2024 Publication: Thu Oct 10 13:03:35 EDT 2024
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores32
Total Threads64
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-Virtual

Hardware hw_1
NameDell Inc. PowerEdge R6715
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableNov-2024
ModelPowerEdge R6715
Form Factor1U Rack
CPU NameAMD EPYC 9355P
CPU Characteristics32 core, 3.55 GHz, 256 MB L3 Cache (Max. Boost Clock up to 4.40GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System32
Cores Per Chip32
Threads Per System64
Threads Per Core2
Version0.2.4
CPU Frequency (MHz)3550
Primary Cache32 KB (I) + 48 KB (D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache256 MB (I+D) on chip per chip
Other CacheNone
Disk1 x M.2 SSD 480GB (Boss card)
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 2Rx4 PC5-6400B-R (slots A1-12 populated), running at 5200 MT/s
# and type of Network Interface Cards (NICs)1 x Broadcom BCM57504 NetXtreme-E Ethernet 25Gbit/s quad port
Power Supply Quantity and Rating (W)1 x 1500
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP6
VendorSUSE
Vendor URLhttps://suse.com/
Version6.4.0-150600.21-default
AvailableJun-2024
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle JAVA SE 22.0.2
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 22.0.2
AvailableJul-2024
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameDell Inc. PowerEdge R7715
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableNov-2024
ModelPowerEdge R7715
Form Factor2U Rack
CPU NameAMD EPYC 9135
CPU Characteristics16 core, 3.65 GHz, 64 MB (I+D) L3 Cache (Max. Boost Clock up to 4.30GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System16
Cores Per Chip16
Threads Per System32
Threads Per Core2
Version0.2.4
CPU Frequency (MHz)3650
Primary Cache32 KB (I) + 48 KB (D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache64 MB (I+D) on chip per chip
Other CacheNone
Disk1 x M.2 SSD 480GB (Boss card)
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 2Rx4 PC5-6400B-R (slots A1-12 populated), running at 6000 MT/s
# and type of Network Interface Cards (NICs)1 x Broadcom BCM57504 NetXtreme-E Ethernet 25Gbit/s quad port
Power Supply Quantity and Rating (W)1 x 1500
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameSUSE Linux Enterprise Server 15 SP6
VendorSUSE
Vendor URLhttps://suse.com/
Version6.4.0-150600.21-default
AvailableJun-2024
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle JAVA SE 22.0.2
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 22.0.2
AvailableJul-2024
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Dram Refresh Delay - Performance
  • DIMM Self Healing (Post Package Repair) on Uncorrectable Memory Error - Disabled
  • Correctable Error Logging - Disabled
  • Virtualization Technology - Disabled
  • L2 Stream HW Prefetcher - Disabled
  • NUMA Nodes Per Socket - 2
  • L3 cache as NUMA Domain- Enabled
  • TDP Control- Manual
  • Customized cTDP - 280
  • Customized PPT - 280
  • System Profile - Custom
  • CPU Power Management - Maximum Performance
  • C-States - Disabled
  • Determinism Control- Manual
  • Determinism Slider - Power Determinism
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(4)
OS Image Description os_1
Tuning
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 150000000 > /proc/sys/kernel/sched_latency_ns
  • echo 80000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 350000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 300000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 32 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/vm/numa_stat
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms127g -Xmx127g -Xmn125g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=121 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=16 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=100 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120
Tuning Used numactl to affinitize two Backend JVMs to a NUMA node:
  • Group1: numactl --cpunodebind=0 --localalloc
  • Group2: numactl --cpunodebind=0 --localalloc
  • Group3: numactl --cpunodebind=1 --localalloc
  • Group4: numactl --cpunodebind=1 --localalloc
Notes None
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Dram Refresh Delay - Performance
  • DIMM Self Healing (Post Package Repair) on Uncorrectable Memory Error - Disabled
  • Correctable Error Logging - Disabled
  • Virtualization Technology - Disabled
  • L2 Stream HW Prefetcher - Disabled
  • NUMA Nodes Per Socket - 2
  • L3 cache as NUMA Domain- Enabled
  • TDP Control- Manual
  • Customized cTDP - 280
  • Customized PPT - 280
  • System Profile - Custom
  • CPU Power Management - Maximum Performance
  • C-States - Disabled
  • Determinism Control- Manual
  • Determinism Slider - Power Determinism
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(4)
OS Image Description os_2
Tuning
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 150000000 > /proc/sys/kernel/sched_latency_ns
  • echo 80000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 350000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 300000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 32 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/vm/numa_stat
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=4
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=4
Tuning Used numactl to affinitize two Backend JVMs to a NUMA node:
  • Group1: numactl --cpunodebind=0 --localalloc
  • Group2: numactl --cpunodebind=0 --localalloc
  • Group3: numactl --cpunodebind=1 --localalloc
  • Group4: numactl --cpunodebind=1 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 175134 177501 179868 182234 184601
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 107684 145550 155017 162117 166851 145727
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2367 - / 2367 - / 2367 - / 2367 - / 2367 - / 2367
1000us 47334 / 37867 7100 / 2367 - / 2367 - / 2367 - / 2367 - / 2367
5000us 177501 / - 168034 / 115967 94667 / 97034 92301 / 94667 63900 / 66267 9467 / 7100
10000us 177501 / - 175134 / 177501 149101 / 115967 144367 / 111234 106501 / 108867 26033 / 7100
25000us 177501 / - 177501 / - 170401 / 172768 163301 / 165668 144367 / 146734 26033 / 7100
50000us 177501 / - 177501 / - 175134 / 177501 170401 / 172768 156201 / 153834 26033 / 7100
75000us 177501 / - 177501 / - 177501 / - 175134 / 177501 163301 / 160934 66267 / 18933
100000us 177501 / - 177501 / - 177501 / - 177501 / - 165668 / 168034 101767 / 23667
200000us 177501 / - 177501 / - 177501 / - 177501 / - 175134 / 177501 151468 / 134901
500000us 177501 / - 177501 / - 177501 / - 177501 / - 177501 / - 175134 / 177501
1000000us 177501 / - 177501 / - 177501 / - 177501 / - 177501 / - 177501 / -
Probes jOPS / Total jOPS

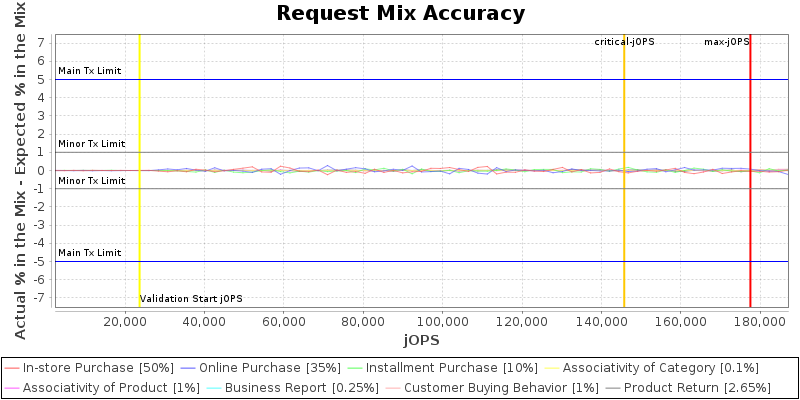

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

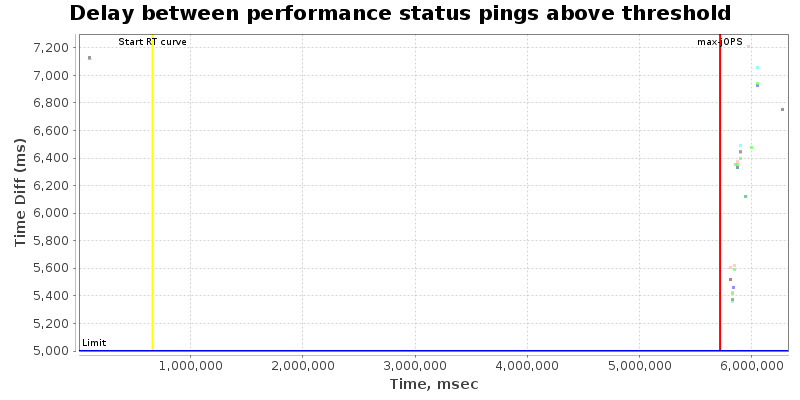

Delay between status pings

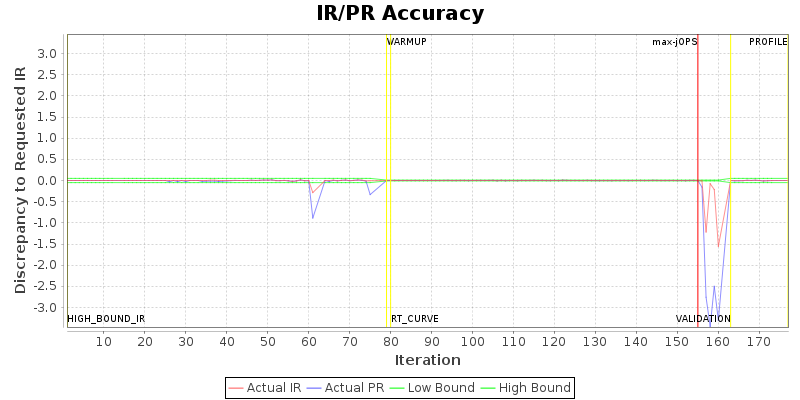

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256 120 120 120 120 120 120 120 120
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.worker.pool.max 256 256 120 120 120 120 120 120 120 120
specjbb.comm.connect.worker.pool.min 1 1 24 24 24 24 24 24 24 24
specjbb.controller.host localhost 192.168.0.9
specjbb.forkjoin.workers 32 {Tier1=90, Tier2=1, Tier3=8}
specjbb.group.count 1 4
specjbb.heartbeat.period 10000 400000
specjbb.heartbeat.threshold 100000 4000000
specjbb.mapreducer.pool.size 32 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 236668 IR
High-bound (settled) is 197290 IR
