SPECjbb2015 Report for jbb2015-20240918-01356 : 454274 max-jOPS ; 274554 critical-jOPS

SUT Description

Hardware hw_1
Name	Dell Inc. PowerEdge R760
Vendor	Dell Inc.
Vendor URL	http://www.dell.com/
Available	Mar-2024
Model	PowerEdge R760
Form Factor	2U Rack
CPU Name	Intel Xeon Platinum 8580
CPU Characteristics	60 core, 2.00 GHz, 300 MB L3 Cache (Turbo boost Technology up to 4.00 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	120
Cores Per Chip	60
Threads Per System	240
Threads Per Core	2
Version	1.9.12
CPU Frequency (MHz)	2000
Primary Cache	32 KB (I) + 48 KB (D) per core
Secondary Cache	2 MB per core
Tertiary Cache	300 MB on chip per chip
Other Cache	None
Disk	1 x Dell Ent NVMe AGN MU U.2 6.4TB
File System	xfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64 GB RDIMM 2Rx4 PC5-5600B-R (slots A1-8, B1-8 populated)
# and type of Network Interface Cards (NICs)	1 x BCM5720 Dual port
Power Supply Quantity and Rating (W)	2 x 1400
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP5
Vendor	SUSE
Vendor URL	https://urldefense.com/v3/__http://www.suse.com/__;!!LpKI!jRKiX_4m6jUhcbNj8G7z14LVU7r9xvd55pIyErxzXLX44shiAvBviqdGsj4aTPm1TU0vtyv6OHk$ [suse[.]com]
Version	5.14.21-150500.53-default
Available	Jun-2023
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 22.0.2
Vendor	Oracle
Vendor URL	https://urldefense.com/v3/__http://www.oracle.com/__;!!LpKI!jRKiX_4m6jUhcbNj8G7z14LVU7r9xvd55pIyErxzXLX44shiAvBviqdGsj4aTPm1TU0v3tssCRg$ [oracle[.]com]
Version	Java HotSpot 64-bit Server VM, version 22.0.2
Available	Jul-2024
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Logical processor- Enabled DCU streamer Prefetcher- Disabled MADT Core Enumeration- Linear SNC- 2 Way clustering Hardware Prefetcher- Enabled Memory Operating Mode-Optimizer mode Turbo Boost- Enabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	systemctl stop systemd-update-utmp-runlevel.service ulimit -n 1024000 echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 56000000 > /proc/sys/kernel/sched_latency_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 16000000 > /proc/sys/kernel/sched_min_granularity_ns echo 9 > /proc/sys/kernel/sched_nr_migrate echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /proc/sys/kernel/sched_tunable_scaling echo 50000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled echo 300 > /sys/kernel/mm/hugepages/hugepages-1048576kB/nr_hugepages echo 300 > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages ulimit -v 800000000 ulimit -m 800000000 ulimit -l 800000000 GROUP_COUNT=8 TI_JVM_COUNT=1
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:LargePageSizeInBytes=1G
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -server -XX:TargetSurvivorRatio=95 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=1g -XX:UseAVX=0 -Xms31744m -Xmx31744m -Xmn29696m -XX:ParallelGCThreads=30
Tuning	Group1:numactl --physcpubind=0-14,120-134 --localalloc Group2:numactl --physcpubind=15-29,135-149 --localalloc Group3:numactl --physcpubind=30-44,150-164 --localalloc Group4:numactl --physcpubind=45-59,165-179 --localalloc Group5:numactl --physcpubind=60-74,180-194 --localalloc Group6:numactl --physcpubind=75-89,195-209 --localalloc Group7:numactl --physcpubind=90-104,210-224 --localalloc Group8:numactl --physcpubind=105-119,225-239 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:LargePageSizeInBytes=1G
Tuning	Group1:numactl --physcpubind=0-14,120-134 --localalloc Group2:numactl --physcpubind=15-29,135-149 --localalloc Group3:numactl --physcpubind=30-44,150-164 --localalloc Group4:numactl --physcpubind=45-59,165-179 --localalloc Group5:numactl --physcpubind=60-74,180-194 --localalloc Group6:numactl --physcpubind=75-89,195-209 --localalloc Group7:numactl --physcpubind=90-104,210-224 --localalloc Group8:numactl --physcpubind=105-119,225-239 --localalloc
Notes	None

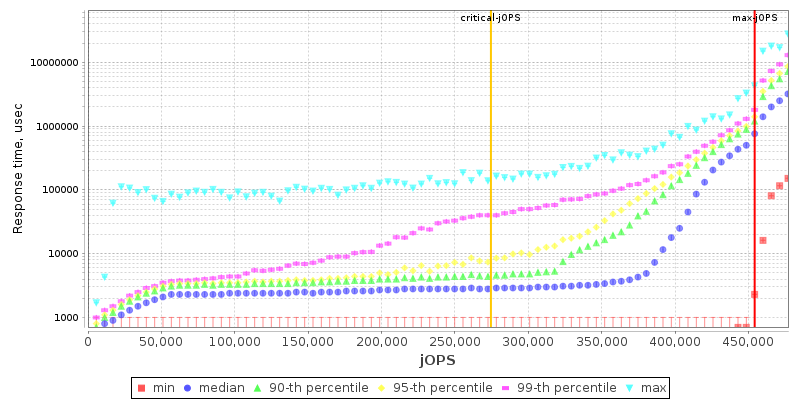

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	448595	454274	459952	465630	471309

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	178870	235654	303795	337866	360579	274554

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	5678 / 11357	- / 5678	- / 5678	- / 5678	- / 5678	- / 5678
1000us	176031 / 181709	17035 / 22714	11357 / 17035	5678 / 11357	5678 / 11357	- / 5678
5000us	408846 / 414525	380454 / 386133	300956 / 306635	204423 / 210102	107890 / 113568	11357 / 17035
10000us	414525 / 420203	386133 / 391811	329348 / 335027	300956 / 295278	176031 / 181709	11357 / 17035
25000us	420203 / 425881	403168 / 408846	363419 / 369097	340705 / 346384	232815 / 238494	11357 / 17035
50000us	420203 / 425881	408846 / 414525	380454 / 386133	363419 / 369097	300956 / 306635	11357 / 17035
75000us	425881 / 431560	408846 / 414525	386133 / 391811	374776 / 380454	335027 / 340705	130604 / 22714
100000us	425881 / 431560	414525 / 420203	391811 / 397489	380454 / 386133	357740 / 363419	176031 / 22714
200000us	448595 / 442917	420203 / 425881	408846 / 414525	403168 / 408846	391811 / 397489	317992 / 323670
500000us	454274 / -	442917 / 448595	425881 / 431560	425881 / 431560	420203 / 425881	386133 / 391811
1000000us	454274 / -	454274 / -	448595 / 454274	448595 / 454274	437238 / 442917	414525 / 420203

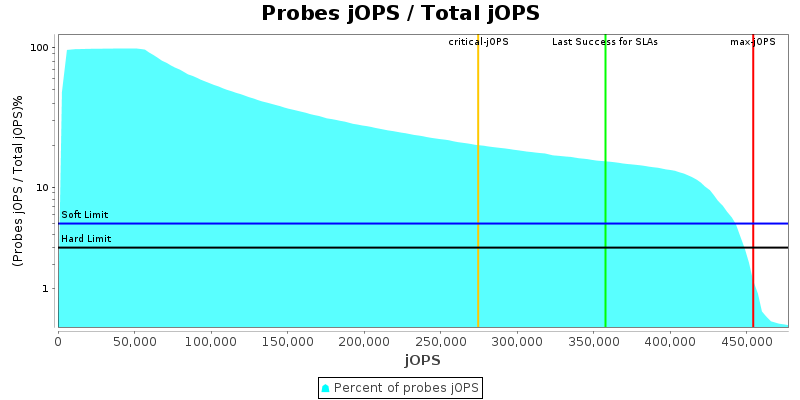

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

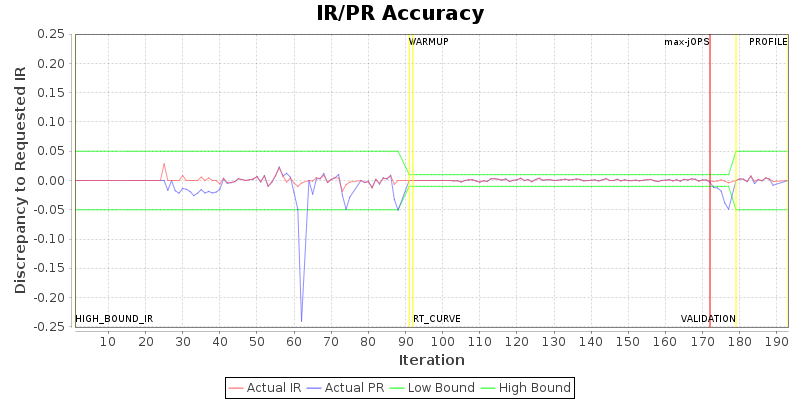

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	232	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256
specjbb.comm.connect.selector.runner.count	0	1	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
specjbb.comm.connect.timeouts.connect	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	81	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256	256
specjbb.comm.connect.worker.pool.min	1	24	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
specjbb.controller.rtcurve.start	0.0	0.0
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	240	{Tier1=220, Tier2=6, Tier3=30}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	240	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 567842 IR

High-bound (settled) is 473335 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Dell Inc. PowerEdge R760	454274 SPECjbb2015-MultiJVM max-jOPS 274554 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Dell Inc.	Test Sponsor: Dell Inc.	Test location: Round Rock, TX	Test date: Aug 28,2024
SPEC license #: 6573	Hardware Availability: Mar-2024	Software Availability: Jul-2024	Publication: Thu Oct 3 13:45:10 EDT 2024
