Dell Inc. PowerEdge R7715 256622 SPECjbb2015-MultiJVM max-jOPS
250939 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: Sep 14,2024
SPEC license #: 6573 Hardware Availability: Nov-2024 Software Availability: Jul-2024 Publication: Thu Oct 10 13:03:35 EDT 2024
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttps://www.dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores64
Total Threads128
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-Virtual

Hardware hw_1
NameDell Inc. PowerEdge R7715
VendorDell Inc.
Vendor URLhttps://www.dell.com/
AvailableNov-2024
ModelPowerEdge R7715
Form Factor2U Rack
CPU NameAMD EPYC 9575F
CPU Characteristics64 core, 3.30 GHz, 256 MB L3 Cache (Max. Boost Clock up to 5.00GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System64
Cores Per Chip64
Threads Per System128
Threads Per Core2
Version0.2.4
CPU Frequency (MHz)3300
Primary Cache32 KB (I) + 48 KB (D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache256 MB (I+D) on chip per chip
Other CacheNone
Disk1 X M.2 SSD 480GB (Boss card)
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 2Rx4 PC5-6400B-R (slots A1-12), running at 5200 MT/s
# and type of Network Interface Cards (NICs)1 X Broadcom BCM57504 NetXtreme-E Ethernet 25Gbit/s Quad Port
Power Supply Quantity and Rating (W)1 x 1500
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP6
VendorSUSE
Vendor URLhttps://www.suse.com
Version6.4.0-150600.21-default
AvailableJun-2024
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle JAVA SE 22.0.2
VendorOracle
Vendor URLhttps://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 22.0.2
AvailableJul-2024
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-Virtual
Tuning
  • Dram Refresh Delay - Performance
  • DIMM Self Healing (Post Package Repair) on Uncorrectable Memory Error - Disabled
  • Correctable Error Logging - Disabled
  • Virtualization Technology - Disabled
  • L2 Stream HW Prefetcher - Disabled
  • NUMA Nodes Per Socket - 2
  • L3 cache as NUMA Domain- Disabled
  • TDP Control- Manual
  • Customized cTDP - 400
  • Customized PPT - 400
  • System Profile - Custom
  • CPU Power Management - Maximum Performance
  • C-States - Disabled
  • Determinism Control- Manual
  • Determinism Slider - Power Determinism
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 150000000 > /proc/sys/kernel/sched_latency_ns
  • echo 80000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 350000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 300000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 32 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/vm/numa_stat
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=4
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms127g -Xmx127g -Xmn125g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=80 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=100 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120
Tuning Used numactl to affinitize two Backend JVMs to a NUMA node:
  • Group1: numactl --cpunodebind=0 --localalloc
  • Group2: numactl --cpunodebind=0 --localalloc
  • Group3: numactl --cpunodebind=1 --localalloc
  • Group4: numactl --cpunodebind=1 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=4
Tuning numactl used to affinitize two TxInjector JVMs to a NUMA node:
  • Group1: numactl --cpunodebind=0 --localalloc
  • Group2: numactl --cpunodebind=0 --localalloc
  • Group3: numactl --cpunodebind=1 --localalloc
  • Group4: numactl --cpunodebind=1 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 253706 256622 259538 262454 265371
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 234751 252248 255164 256622 256622 250939
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 17497 / 20413 5832 / 8748 - / 2916 - / 2916 - / 2916 - / 2916
1000us 247874 / 250790 90401 / 84569 17497 / 20413 14581 / 17497 8748 / 11665 - / 2916
5000us 256622 / - 256622 / - 250790 / 253706 239125 / 242041 189550 / 177886 11665 / 14581
10000us 256622 / - 256622 / - 256622 / - 256622 / - 233293 / 236209 26245 / 14581
25000us 256622 / - 256622 / - 256622 / - 256622 / - 250790 / 253706 26245 / 14581
50000us 256622 / - 256622 / - 256622 / - 256622 / - 253706 / 256622 78736 / 29162
75000us 256622 / - 256622 / - 256622 / - 256622 / - 256622 / - 169137 / 29162
100000us 256622 / - 256622 / - 256622 / - 256622 / - 256622 / - 186634 / 84569
200000us 256622 / - 256622 / - 256622 / - 256622 / - 256622 / - 250790 / 253706
500000us 256622 / - 256622 / - 256622 / - 256622 / - 256622 / - 256622 / -
1000000us 256622 / - 256622 / - 256622 / - 256622 / - 256622 / - 256622 / -

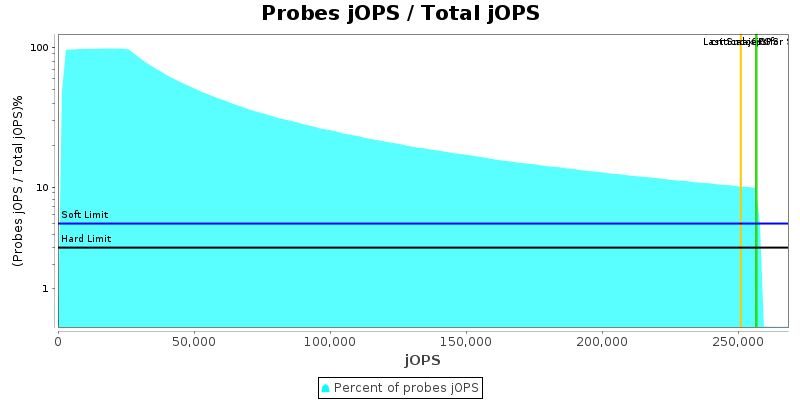

Probes jOPS / Total jOPS

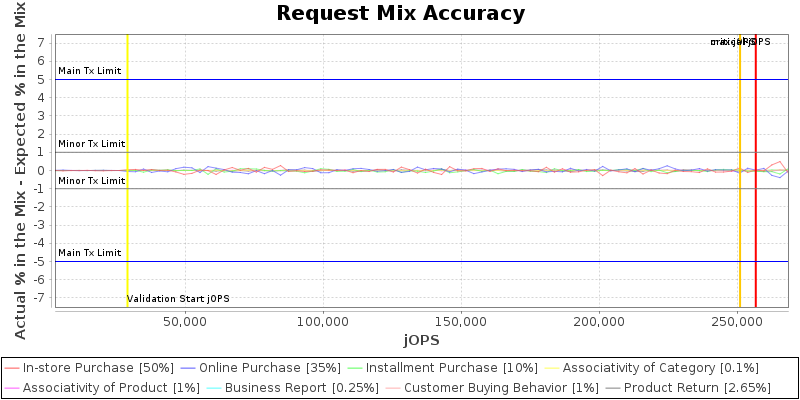

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

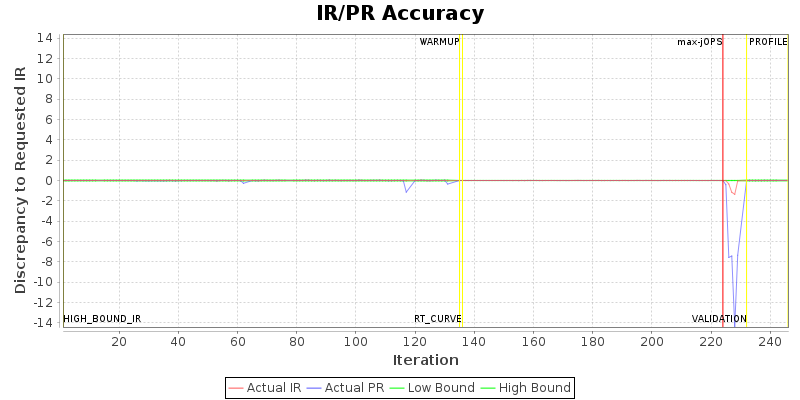

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256 120 120 120 120 120 120 120 120
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.worker.pool.max 256 256 120 120 120 120 120 120 120 120
specjbb.comm.connect.worker.pool.min 1 1 24 24 24 24 24 24 24 24
specjbb.controller.handshake.period 5000 20000
specjbb.controller.handshake.timeout 600000 900000
specjbb.forkjoin.workers 128 {Tier1=190, Tier2=1, Tier3=6}
specjbb.group.count 1 4
specjbb.heartbeat.period 10000 2000
specjbb.heartbeat.threshold 100000 9000000
specjbb.mapreducer.pool.size 128 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 291616 IR
High-bound (settled) is 282458 IR
