SPECjbb2015 Report for jbb2015-20240904-01327 : 1171060 max-jOPS ; 554392 critical-jOPS

SUT Description

Hardware hw_1
Name	Hyper A+ Server AS -2126HS-TN
Vendor	Supermicro
Vendor URL	https://www.supermicro.com
Available	Oct-2024
Model	H14DSH
Form Factor	2U
CPU Name	AMD EPYC 9755
CPU Characteristics	128 core, 2.7GHz, 512MB L3 Cache (Max. Boost Clock up to 4.1GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	256
Cores Per Chip	128
Threads Per System	512
Threads Per Core	2
Version	1.1 08/28/2024
CPU Frequency (MHz)	2700
Primary Cache	32KB(I)+48KB(D) per core
Secondary Cache	1MB (I+D) per core
Tertiary Cache	512MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 3.84 TB NVMe PCIe Gen5.0
File System	btrfs
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64GB
Memory Details	64GB 2Rx4 DDR5 6400 MHz, running at 6000 MHz.
# and type of Network Interface Cards (NICs)	1 x 1 GbE NIC
Power Supply Quantity and Rating (W)	2 x 1600w
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	http://suse.com/
Version	6.4.0-150600.23.17-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 22.0.2
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 22.0.2
Available	Jul-2024
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS4 Determinism Control = Manual Determinism Enable = Performance xGMI Link Configuration = 4 xGMI Links 4 Link xGMI max speed = 32Gbps TDP Control = Manual TDP = 500 Package Power Limit Control = Manual Package Power Limit = 500
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(32), jvm_TxInjector_1(32)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance ulimit -n 1024000 echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 800000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 900000000 > /proc/sys/kernel/sched_min_granularity_ns echo 700000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn28g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=15 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=12 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m -XX:+ScavengeBeforeFullGC -XX:PrefetchCopyIntervalInBytes=256 -XX:TLABSize=64k -XX:MinTLABSize=64k
Tuning	Used numactl to affinitize each Backend JVM to 8 Core / 16 Threads Group1: numactl --physcpubind=0-7,256-263 --localalloc Group2: numactl --physcpubind=8-15,264-271 --localalloc Group3: numactl --physcpubind=16-23,272-279 --localalloc Group4: numactl --physcpubind=24-31,280-287 --localalloc Group5: numactl --physcpubind=32-39,288-295 --localalloc Group6: numactl --physcpubind=40-47,296-303 --localalloc Group7: numactl --physcpubind=48-55,304-311 --localalloc Group8: numactl --physcpubind=56-63,312-319 --localalloc Group9: numactl --physcpubind=64-71,320-327 --localalloc Group10: numactl --physcpubind=72-79,328-335 --localalloc Group11: numactl --physcpubind=80-87,336-343 --localalloc Group12: numactl --physcpubind=88-95,344-351 --localalloc Group13: numactl --physcpubind=96-103,352-359 --localalloc Group14: numactl --physcpubind=104-111,360-367 --localalloc Group15: numactl --physcpubind=112-119,368-375 --localalloc Group16: numactl --physcpubind=120-127,376-383 --localalloc Group17: numactl --physcpubind=128-135,384-391 --localalloc Group18: numactl --physcpubind=136-143,392-399 --localalloc Group19: numactl --physcpubind=144-151,400-407 --localalloc Group20: numactl --physcpubind=152-159,408-415 --localalloc Group21: numactl --physcpubind=160-167,416-423 --localalloc Group22: numactl --physcpubind=168-175,424-431 --localalloc Group23: numactl --physcpubind=176-183,432-439 --localalloc Group24: numactl --physcpubind=184-191,440-447 --localalloc Group25: numactl --physcpubind=192-199,448-455 --localalloc Group26: numactl --physcpubind=200-207,456-463 --localalloc Group27: numactl --physcpubind=208-215,464-471 --localalloc Group28: numactl --physcpubind=216-223,472-479 --localalloc Group29: numactl --physcpubind=224-231,480-487 --localalloc Group30: numactl --physcpubind=232-239,488-495 --localalloc Group31: numactl --physcpubind=240-247,496-503 --localalloc Group32: numactl --physcpubind=248-255,504-511 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to affinitize each Transaction Injector JVM to 8 Cores/ 8 Threads Group1: numactl --physcpubind=0-7 --localalloc Group2: numactl --physcpubind=8-15 --localalloc Group3: numactl --physcpubind=16-23 --localalloc Group4: numactl --physcpubind=24-31 --localalloc Group5: numactl --physcpubind=32-39 --localalloc Group6: numactl --physcpubind=40-47 --localalloc Group7: numactl --physcpubind=48-55 --localalloc Group8: numactl --physcpubind=56-63 --localalloc Group9: numactl --physcpubind=64-71 --localalloc Group10: numactl --physcpubind=72-79 --localalloc Group11: numactl --physcpubind=80-87 --localalloc Group12: numactl --physcpubind=88-95 --localalloc Group13: numactl --physcpubind=96-103 --localalloc Group14: numactl --physcpubind=104-111 --localalloc Group15: numactl --physcpubind=112-119 --localalloc Group16: numactl --physcpubind=120-127 --localalloc Group17: numactl --physcpubind=128-135 --localalloc Group18: numactl --physcpubind=136-143 --localalloc Group19: numactl --physcpubind=144-151 --localalloc Group20: numactl --physcpubind=152-159 --localalloc Group21: numactl --physcpubind=160-167 --localalloc Group22: numactl --physcpubind=168-175 --localalloc Group23: numactl --physcpubind=176-183 --localalloc Group24: numactl --physcpubind=184-191 --localalloc Group25: numactl --physcpubind=192-199 --localalloc Group26: numactl --physcpubind=200-207 --localalloc Group27: numactl --physcpubind=208-215 --localalloc Group28: numactl --physcpubind=216-223 --localalloc Group29: numactl --physcpubind=224-231 --localalloc Group30: numactl --physcpubind=232-239 --localalloc Group31: numactl --physcpubind=240-247 --localalloc Group32: numactl --physcpubind=248-255 --localalloc
Notes	None

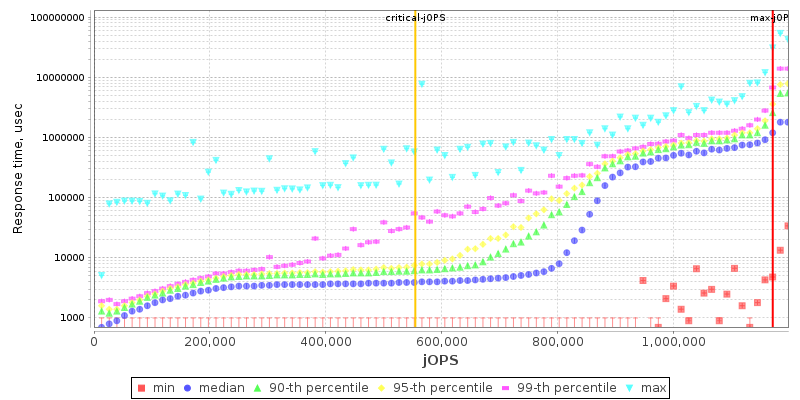

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	1144744	1157902	1171060	1184218	1197376

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	371712	476976	585530	690794	730268	554392

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	13158 / 26316	- / 13158	- / 13158	- / 13158	- / 13158	- / 13158
1000us	171054 / 184212	39474 / 52632	- / 13158	- / 13158	- / 13158	- / 13158
5000us	842111 / 855269	723689 / 736847	289476 / 302634	223686 / 236844	197370 / 210528	- / 13158
10000us	855269 / 868427	802637 / 815795	671057 / 684215	618425 / 631583	394739 / 302634	13158 / 26316
25000us	868427 / 881585	828953 / 842111	750005 / 763163	710531 / 723689	486845 / 447371	13158 / 26316
50000us	881585 / 894743	842111 / 855269	776321 / 789479	750005 / 763163	618425 / 552635	13158 / 26316
75000us	881585 / 894743	855269 / 868427	802637 / 815795	776321 / 789479	697373 / 684215	13158 / 26316
100000us	894743 / 907901	868427 / 881585	815795 / 828953	802637 / 815795	736847 / 723689	184212 / 105264
200000us	934217 / 947375	881585 / 894743	855269 / 868427	842111 / 855269	802637 / 789479	578951 / 171054
500000us	1144744 / 1157902	986848 / 1000006	934217 / 947375	907901 / 921059	894743 / 907901	736847 / 171054
1000000us	1171060 / -	1157902 / 1171060	1105270 / 1118428	1092112 / 1105270	1026322 / 1013164	868427 / 565793

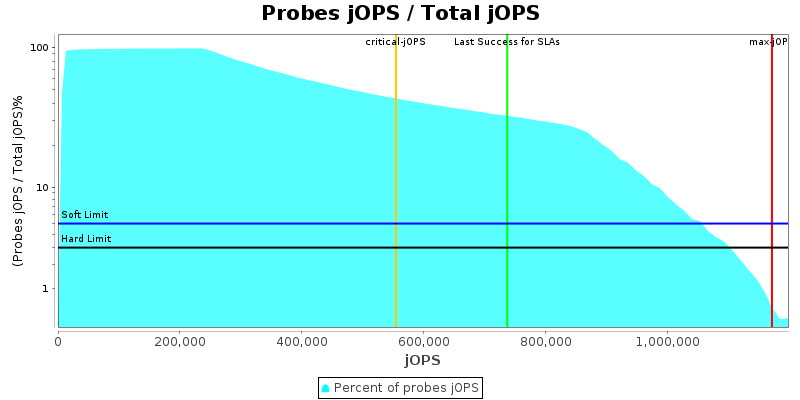

Number of probes

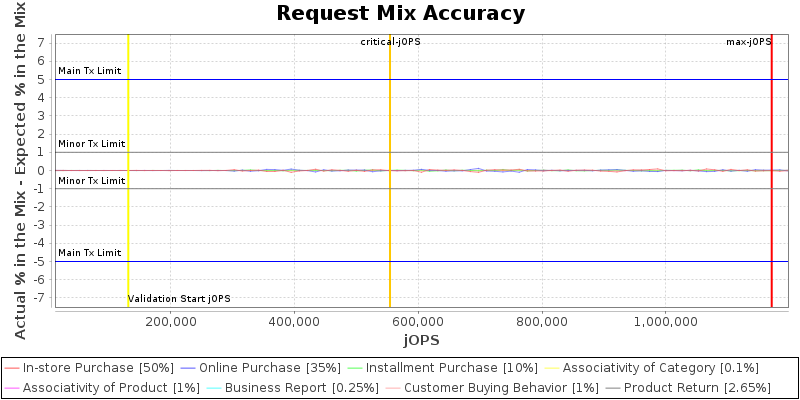

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

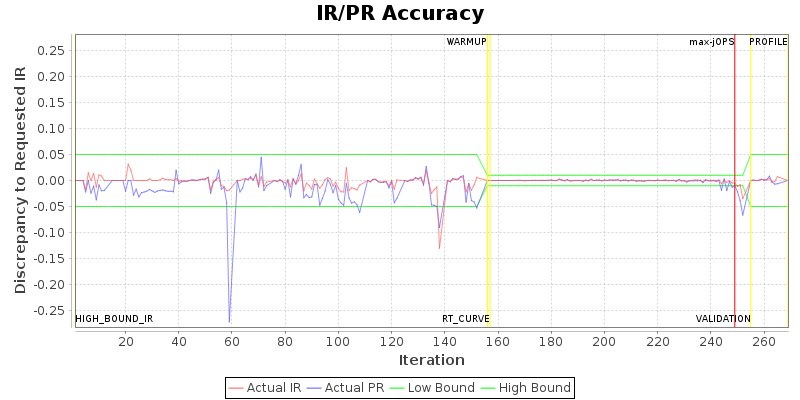

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group17.Backend.beJVM	Group17.TxInjector.txiJVM1	Group18.Backend.beJVM	Group18.TxInjector.txiJVM1	Group19.Backend.beJVM	Group19.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group20.Backend.beJVM	Group20.TxInjector.txiJVM1	Group21.Backend.beJVM	Group21.TxInjector.txiJVM1	Group22.Backend.beJVM	Group22.TxInjector.txiJVM1	Group23.Backend.beJVM	Group23.TxInjector.txiJVM1	Group24.Backend.beJVM	Group24.TxInjector.txiJVM1	Group25.Backend.beJVM	Group25.TxInjector.txiJVM1	Group26.Backend.beJVM	Group26.TxInjector.txiJVM1	Group27.Backend.beJVM	Group27.TxInjector.txiJVM1	Group28.Backend.beJVM	Group28.TxInjector.txiJVM1	Group29.Backend.beJVM	Group29.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group30.Backend.beJVM	Group30.TxInjector.txiJVM1	Group31.Backend.beJVM	Group31.TxInjector.txiJVM1	Group32.Backend.beJVM	Group32.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	305	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230
specjbb.comm.connect.selector.runner.count	0	5	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3	2	3
specjbb.comm.connect.worker.pool.max	256	350	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230	220	230
specjbb.comm.connect.worker.pool.min	1	1	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8	12	8
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.controller.rtcurve.warmup.step	0.1	0.2
specjbb.customerDriver.threads	64	{probe=75, saturate=186, service=90}
specjbb.forkjoin.workers	512	{Tier1=620, Tier2=32, Tier3=134}
specjbb.group.count	1	32
specjbb.heartbeat.period	10000	9000000
specjbb.heartbeat.threshold	100000	9000000
specjbb.mapreducer.pool.size	512	20
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 1315798 IR

High-bound (settled) is 1223551 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Supermicro Hyper A+ Server AS -2126HS-TN	1171060 SPECjbb2015-MultiJVM max-jOPS 554392 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro	Test Sponsor: Supermicro	Test location: San Jose, California	Test date: September 02, 2024
SPEC license #: 001176	Hardware Availability: Oct-2024	Software Availability: Jul-2024	Publication: Thu Oct 10 13:03:35 EDT 2024


SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 32) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
