SPECjbb2015
Copyright © 2015-2024 Standard Performance Evaluation Corporation
IEIT Systems Co., Ltd. NF5180G7 999139 SPECjbb2015-MultiJVM max-jOPS
389758 SPECjbb2015-MultiJVM critical-jOPS
Tested by: IEIT Systems Co., Ltd. Test Sponsor: IEIT Systems Co., Ltd. Test location: Jinan, China Test date: Aug 14, 2024
SPEC license #: 3358 Hardware Availability: Mar-2024 Software Availability: Jul-2024 Publication: Thu Sep 5 12:49:48 EDT 2024
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 24)

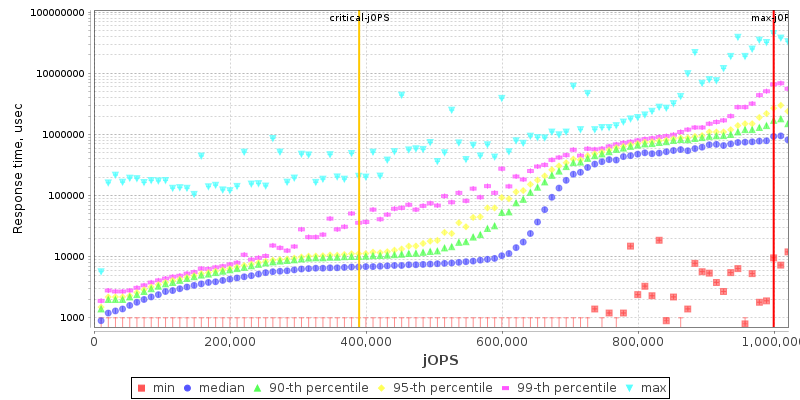

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorIEIT Systems Co., Ltd.
Vendor URLhttps://www.ieisystem.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores192
Total Threads384
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameNF5180G7
VendorIEIT Systems Co., Ltd.
Vendor URLhttps://www.ieisystem.com/
AvailableMar-2024
ModelNF5180G7
Form Factor1U
CPU NameAMD EPYC 9684X
CPU Characteristics96 Core, 2.55 GHz, 1152 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System192
Cores Per Chip96
Threads Per System384
Threads Per Core2
Version04.02.28
CPU Frequency (MHz)2550
Primary Cache32 KB(I) + 32 KB(D)on chip per core
Secondary Cache1 MB (I+D) on chip per core
Tertiary Cache1152 MB (I+D) on chip per chip
Other CacheNone
Disk1x 4TB NVMe SSD
File Systemxfs
Memory Amount (GB)1536
# and size of DIMM(s)24 x 64GB
Memory Details24 x 64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 21.0.4
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 21.0.4
AvailableJul-2024
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • L1 Stream HW Prefetcher = Disabled
  • L2 Stream HW Prefetcher = Disabled
  • TDP Control = Manual
  • TDP = 400
  • PPT Control = Manual
  • PPT = 400
  • Determinism Control = Manual
  • Determinism Slider = Power
  • NUMA nodes per socket = NPS4
  • ACPI SRAT L3 Cache as NUMA Domain = Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(24), jvm_TxInjector_1(24)
OS Image Description os_1
Tuning
  • ulimit -n 1024000
  • cpupower frequency-set -g performance
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xmx31g -Xms31g -Xmn29g -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:AllocatePrefetchInstr=2 -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=18 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95 -XX:InlineSmallCode=11k -XX:LoopUnrollLimit=200 -XX:MaxGCPauseMillis=100 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning numactl used to affinitize each Backend JVM to a single NUMA node, eg:
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
  • numactl --cpunodebind=4 --localalloc
  • numactl --cpunodebind=5 --localalloc
  • numactl --cpunodebind=6 --localalloc
  • numactl --cpunodebind=7 --localalloc
  • numactl --cpunodebind=8 --localalloc
  • numactl --cpunodebind=9 --localalloc
  • numactl --cpunodebind=10 --localalloc
  • numactl --cpunodebind=11 --localalloc
  • numactl --cpunodebind=12 --localalloc
  • numactl --cpunodebind=13 --localalloc
  • numactl --cpunodebind=14 --localalloc
  • numactl --cpunodebind=15 --localalloc
  • numactl --cpunodebind=16 --localalloc
  • numactl --cpunodebind=17 --localalloc
  • numactl --cpunodebind=18 --localalloc
  • numactl --cpunodebind=19 --localalloc
  • numactl --cpunodebind=20 --localalloc
  • numactl --cpunodebind=21 --localalloc
  • numactl --cpunodebind=22 --localalloc
  • numactl --cpunodebind=23 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning numactl used to affinitize each TxInjector JVM to a single NUMA node, eg:
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
  • numactl --cpunodebind=4 --localalloc
  • numactl --cpunodebind=5 --localalloc
  • numactl --cpunodebind=6 --localalloc
  • numactl --cpunodebind=7 --localalloc
  • numactl --cpunodebind=8 --localalloc
  • numactl --cpunodebind=9 --localalloc
  • numactl --cpunodebind=10 --localalloc
  • numactl --cpunodebind=11 --localalloc
  • numactl --cpunodebind=12 --localalloc
  • numactl --cpunodebind=13 --localalloc
  • numactl --cpunodebind=14 --localalloc
  • numactl --cpunodebind=15 --localalloc
  • numactl --cpunodebind=16 --localalloc
  • numactl --cpunodebind=17 --localalloc
  • numactl --cpunodebind=18 --localalloc
  • numactl --cpunodebind=19 --localalloc
  • numactl --cpunodebind=20 --localalloc
  • numactl --cpunodebind=21 --localalloc
  • numactl --cpunodebind=22 --localalloc
  • numactl --cpunodebind=23 --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 978104 988621 999139 1009656 1020173
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 234885 328664 413678 510086 552155 389758
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 10517 - / 10517 - / 10517 - / 10517 - / 10517 - / 10517
1000us 84138 / 94655 10517 / 21034 - / 10517 - / 10517 - / 10517 - / 10517
5000us 631035 / 641552 231379 / 241897 157759 / 168276 147241 / 157759 126207 / 136724 - / 10517
10000us 652069 / 662587 588966 / 599483 368104 / 378621 305000 / 315517 241897 / 220862 10517 / 21034
25000us 662587 / 673104 641552 / 652069 567931 / 578449 525862 / 536380 336552 / 305000 10517 / 21034
50000us 673104 / 683621 652069 / 662587 588966 / 599483 567931 / 578449 431207 / 378621 10517 / 21034
75000us 683621 / 694138 662587 / 673104 610000 / 620518 588966 / 599483 504828 / 515345 10517 / 21034
100000us 694138 / 704656 673104 / 683621 631035 / 641552 610000 / 620518 567931 / 536380 10517 / 21034
200000us 767759 / 757242 694138 / 704656 662587 / 673104 652069 / 662587 631035 / 599483 368104 / 31552
500000us 988621 / 999139 830863 / 809828 746725 / 757242 736207 / 746725 715173 / 704656 588966 / 220862
1000000us 999139 / - 999139 / - 936035 / 946552 893966 / 904483 851897 / 862414 683621 / 452242
Number of probes
Probes jOPS / Total jOPS

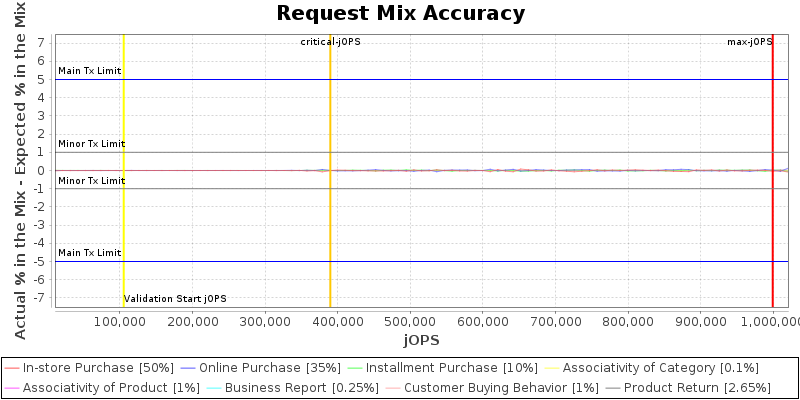

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group13.Backend.beJVM Group13.TxInjector.txiJVM1 Group14.Backend.beJVM Group14.TxInjector.txiJVM1 Group15.Backend.beJVM Group15.TxInjector.txiJVM1 Group16.Backend.beJVM Group16.TxInjector.txiJVM1 Group17.Backend.beJVM Group17.TxInjector.txiJVM1 Group18.Backend.beJVM Group18.TxInjector.txiJVM1 Group19.Backend.beJVM Group19.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group20.Backend.beJVM Group20.TxInjector.txiJVM1 Group21.Backend.beJVM Group21.TxInjector.txiJVM1 Group22.Backend.beJVM Group22.TxInjector.txiJVM1 Group23.Backend.beJVM Group23.TxInjector.txiJVM1 Group24.Backend.beJVM Group24.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 150 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170 256 170
specjbb.comm.connect.selector.runner.count 0 10 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5 20 5
specjbb.comm.connect.timeouts.connect 60000 900000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 150 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200 256 200
specjbb.comm.connect.worker.pool.min 1 16 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 {probe=130, saturate=300, service=160}
specjbb.forkjoin.workers 384 {Tier1=800, Tier2=45, Tier3=160}
specjbb.group.count 1 24
specjbb.mapreducer.pool.size 384 10
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 1051725 IR
High-bound (settled) is 1034966 IR
