SPECjbb2015
Copyright © 2015-2024 Standard Performance Evaluation Corporation
Lenovo Global Technology ThinkSystem SD550 V3 904258 SPECjbb2015-Distributed max-jOPS
616538 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Apr 15, 2024
SPEC license #: 9017 Hardware Availability: Mar-2024 Software Availability: Apr-2024 Publication: Thu May 2 14:51:39 EDT 2024
Benchmark Results Summary

SPECjbb2015-Distributed: Distributed JVMs/Single or Multi Hosts
(# of groups: 16)

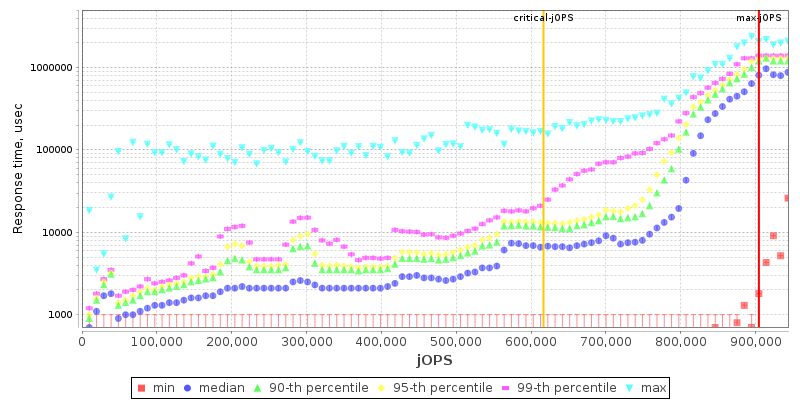

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes2
All Nodes IdenticalYES
Nodes Per System2
Total Chips4
Total Cores256
Total Threads512
Total Memory Amount (GB)4096
Total OS Images2
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameThinkSystem SD550 V3
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableMar-2023
ModelThinkSystem SD550 V3
Form Factor2U
CPU NameIntel Xeon Platinum 8592+
CPU Characteristics64 core, 1.90 GHz, 320 MB L3 Cache (Turbo Boost Technology up to 3.90 GHz)
Number of Systems1
Nodes Per System2
Chips Per System4
Cores Per System256
Cores Per Chip64
Threads Per System512
Threads Per Core2
VersionFNE113F
CPU Frequency (MHz)1900
Primary Cache32KB(I)+48KB(D) on chip per core
Secondary Cache2MB (I+D) on chip per core
Tertiary Cache320MB (I+D) on chip per chip
Other CacheNone
Disk2 x 960GB M.2 NVME SSD
File SystemNTFS
Memory Amount (GB)4096
# and size of DIMM(s)32 x 128 GB
Memory Details128 GB 2S2Rx4 PC5-5600B-R
# and type of Network Interface Cards (NICs)2 x 10/25 GbE OCP NIC
Power Supply Quantity and Rating (W)3 x 2700W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2022 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 21H2(OS Build 20348.2402)
AvailableApr-2024
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 22
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 22
AvailableMar-2024
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Driver Description
Hardware hw_2
NameThinkSystem SR665 V3
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableDec-2023
ModelThinkSystem SR665 V3
Form Factor2U
CPU NameAMD EPYC 9684X
CPU Characteristics96 core, 2.55 GHz, 1152 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System192
Cores Per Chip96
Threads Per System384
Threads Per Core2
VersionKAE117M
CPU Frequency (MHz)2550
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache1MB (I+D) on chip per core
Tertiary Cache1152MB (I+D) on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemNTFS
Memory Amount (GB)3072
# and size of DIMM(s)24 x 128 GB
Memory Details128 GB 2S2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)1 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameWindows Server 2022 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 21H2(OS Build 20348.2402)
AvailableApr-2024
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 22
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 22
AvailableMar-2024
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Choose Operating Mode set to Maximum Performance
  • SNC set to SNC2
  • LLC Prefetch set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(16)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms118g -Xmx118g -Xmn116g -XX:SurvivorRatio=16 -XX:+UseParallelGC -XX:ParallelGCThreads=32 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:InlineSmallCode=11k -XX:+UseNUMA -XX:UseAVX=0 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4
Tuning Affinitized two Backend JVMs to one memory node in every node in SUT.
  • start /b /NODE 0
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 2
  • start /b /NODE 3
  • start /b /NODE 3
Notes None
Driver config_2 Configuration
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Choose Operating Mode set to Maximum Performance and then set to Custom Mode
  • NUMA Nodes per Socket set to NPS4
  • L2 Stream HW Prefetcher set to Disabled
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(16)
OS Image Description os_2
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms10g -Xmx10g -Xmn8g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms4g -Xmx4g -Xmn3g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning Affinitized two TxInjector JVMs to one memory node.
  • start /b /NODE 0
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 2
  • start /b /NODE 3
  • start /b /NODE 3
  • start /b /NODE 4
  • start /b /NODE 4
  • start /b /NODE 5
  • start /b /NODE 5
  • start /b /NODE 6
  • start /b /NODE 6
  • start /b /NODE 7
  • start /b /NODE 7
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 894534 904258 913981 923704 933427
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 401892 627146 656316 714655 753548 616538
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 9723 / 19446 - / 9723 - / 9723 - / 9723 - / 9723 - / 9723
1000us 486160 / 427821 68062 / 19446 9723 / 19446 9723 / 19446 - / 9723 - / 9723
5000us 768133 / 777856 554222 / 563946 495883 / 281973 418098 / 194464 408374 / 155571 19446 / 9723
10000us 797302 / 807026 758410 / 768133 554222 / 563946 554222 / 563946 505606 / 194464 58339 / 9723
25000us 816749 / 826472 797302 / 807026 758410 / 768133 748686 / 758410 622285 / 632008 77786 / 38893
50000us 826472 / 836195 807026 / 816749 777856 / 787579 768133 / 777856 651454 / 661178 77786 / 48616
75000us 826472 / 836195 807026 / 816749 787579 / 797302 777856 / 787579 709794 / 719517 330589 / 48616
100000us 836195 / 845918 816749 / 826472 787579 / 797302 787579 / 797302 748686 / 758410 476437 / 68062
200000us 855642 / 865365 826472 / 836195 807026 / 816749 797302 / 807026 787579 / 797302 661178 / 651454
500000us 904258 / - 875088 / 884811 845918 / 855642 836195 / 845918 826472 / 836195 807026 / 816749
1000000us 904258 / - 904258 / - 894534 / 904258 884811 / 894534 865365 / 875088 836195 / 845918

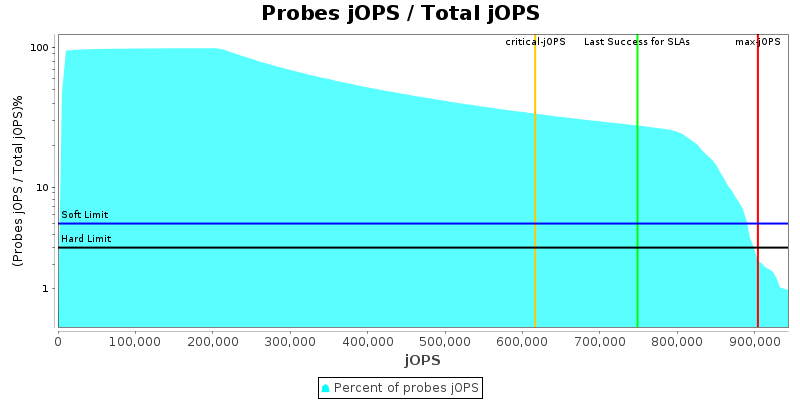

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

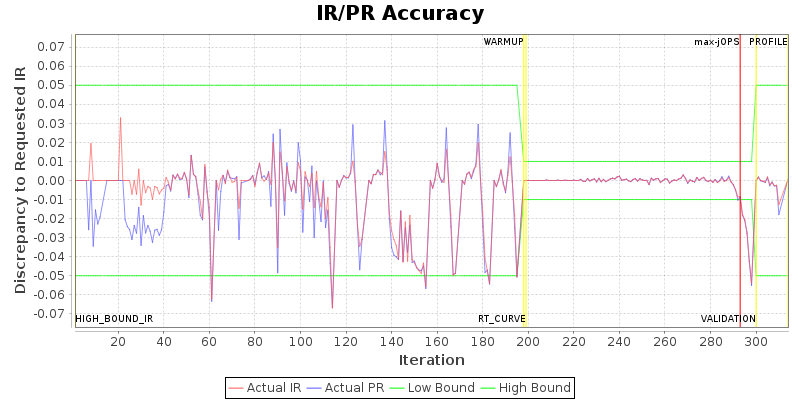

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group13.Backend.beJVM Group13.TxInjector.txiJVM1 Group14.Backend.beJVM Group14.TxInjector.txiJVM1 Group15.Backend.beJVM Group15.TxInjector.txiJVM1 Group16.Backend.beJVM Group16.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 192 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48
specjbb.comm.connect.selector.runner.count 0 8 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
specjbb.comm.connect.timeouts.connect 60000 900000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.comm.connect.worker.pool.max 256 150 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45
specjbb.comm.connect.worker.pool.min 1 16 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30
specjbb.controller.host localhost 192.168.5.6
specjbb.customerDriver.threads 64 {probe=130, saturate=300, service=160}
specjbb.forkjoin.workers 48 {Tier1=180, Tier2=1, Tier3=16}
specjbb.group.count 1 16
specjbb.mapreducer.pool.size 48 10
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 972320 IR
High-bound (settled) is 960512 IR
