SPECjbb2015 Report for jbb2015-20240328-01238 : 556794 max-jOPS ; 314859 critical-jOPS

SUT Description

Hardware hw_1
Name	UniServer R4900 G6
Vendor	H3C
Vendor URL	https://www.h3c.com/
Available	Dec-2023
Model	UniServer R4900 G6
Form Factor	2U
CPU Name	INTEL(R) XEON(R) PLATINUM 8592+
CPU Characteristics	64 Core, 1.90GHz, 320MB L3 Cache (Turbo Boost Technology up to 3.90 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	6.10.37
CPU Frequency (MHz)	1900
Primary Cache	32 KB(I)+48 KB(D) on chip per core
Secondary Cache	2 MB (I+D) on chip per core
Tertiary Cache	320 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 3.2 TB PCIe NVMe SSD
File System	ext4
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64 GB 2Rx4 DDR5 5600B
# and type of Network Interface Cards (NICs)	4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)	2 x 1300
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Ubuntu 22.04.3 LTS
Vendor	Ubuntu
Vendor URL	http://www.ubuntu.com/
Version	5.15.0-97-generic
Available	Aug-2023
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 21.0.2
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 21.0.2
Available	Jan-2024
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: Hardware Prefetch = Disabled DCU Streamer Prefetcher = Disabled Adjacent Cache Prefetch = Disabled SNC = Enable SNC2 (2-clusters) Hardware P-States = Disabled Enable Monitor MWAIT = Disabled Power Performance Tuning = OS Controls EPB
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	tuned-adm profile network-throughput cpupower -c all frequency-set -g performance systemctl stop systemd-update-utmp.service ulimit -n 1024000 echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 56000000 > /sys/kernel/debug/sched/latency_ns echo 1000 > /sys/kernel/debug/sched/migration_cost_ns echo 16000000 > /sys/kernel/debug/sched/min_granularity_ns echo 9 > /sys/kernel/debug/sched/nr_migrate echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /sys/kernel/debug/sched/tunable_scaling echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled echo 274877906944 > /proc/sys/kernel/shmmax echo 274877906944 > /proc/sys/kernel/shmall echo 300 > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages echo 300 > /sys/kernel/mm/hugepages/hugepages-1048576kB/nr_hugepages echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness ulimit -v 800000000 ulimit -m 800000000 ulimit -l 800000000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:LargePageSizeInBytes=1G
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -server -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:UseAVX=0 -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -XX:TargetSurvivorRatio=95 -XX:LargePageSizeInBytes=1G -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -Xms31g -Xmx31g -Xmn29g -XX:ParallelGCThreads=32 -XX:+UseHugeTLBFS -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -XX:GCTimeRatio=99 -XX:MaxGCPauseMillis=500
Tuning	numactl --physcpubind=0-15,128-143 --localalloc numactl --physcpubind=16-31,144-159 --localalloc numactl --physcpubind=32-47,160-175 --localalloc numactl --physcpubind=48-63,176-191 --localalloc numactl --physcpubind=64-79,192-207 --localalloc numactl --physcpubind=80-95,208-223 --localalloc numactl --physcpubind=96-111,224-239 --localalloc numactl --physcpubind=112-127,240-255 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:LargePageSizeInBytes=1G
Tuning	numactl --physcpubind=0-15,128-143 --localalloc numactl --physcpubind=16-31,144-159 --localalloc numactl --physcpubind=32-47,160-175 --localalloc numactl --physcpubind=48-63,176-191 --localalloc numactl --physcpubind=64-79,192-207 --localalloc numactl --physcpubind=80-95,208-223 --localalloc numactl --physcpubind=96-111,224-239 --localalloc numactl --physcpubind=112-127,240-255 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	550742	556794	562846	568898	574950

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	208798	257215	335892	396413	432726	314859

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	6052 / 12104	6052 / 12104	- / 6052	- / 6052	- / 6052	- / 6052
1000us	381283 / 387335	24208 / 30261	12104 / 18156	12104 / 18156	6052 / 12104	- / 6052
5000us	502325 / 508377	466012 / 472065	357074 / 363127	260241 / 242084	121042 / 127094	6052 / 12104
10000us	508377 / 514429	472065 / 478117	399439 / 405491	332866 / 338918	205772 / 211824	6052 / 12104
25000us	514429 / 520481	490221 / 496273	441804 / 447856	411543 / 417596	254189 / 260241	6052 / 12104
50000us	520481 / 526534	502325 / 508377	453908 / 459960	429700 / 435752	332866 / 338918	6052 / 12104
75000us	526534 / 532586	502325 / 508377	472065 / 478117	447856 / 453908	393387 / 399439	181563 / 18156
100000us	532586 / 538638	502325 / 508377	478117 / 484169	466012 / 472065	429700 / 435752	236032 / 24208
200000us	538638 / 544690	520481 / 526534	496273 / 502325	490221 / 496273	472065 / 478117	363127 / 369179
500000us	550742 / 556794	538638 / 544690	520481 / 526534	514429 / 520481	508377 / 514429	459960 / 466012
1000000us	556794 / -	550742 / 556794	538638 / 544690	538638 / 544690	532586 / 538638	508377 / 514429

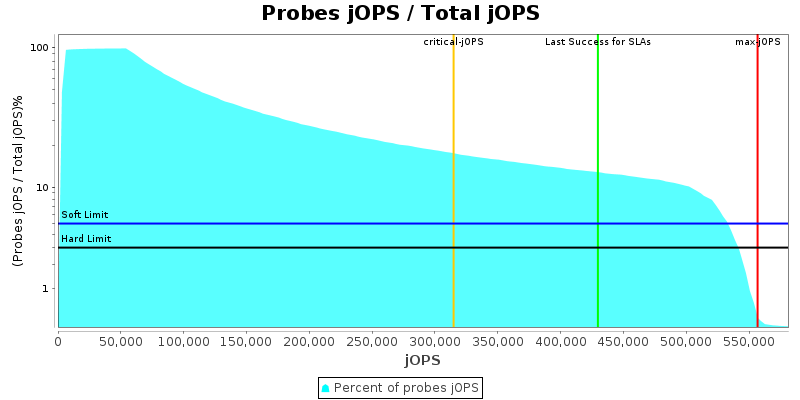

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

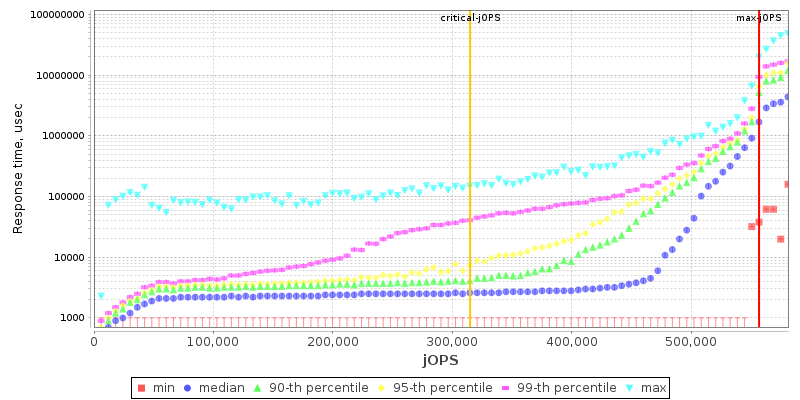

Delay between performance status pings during RT Curve (Response-Throughput Curve)

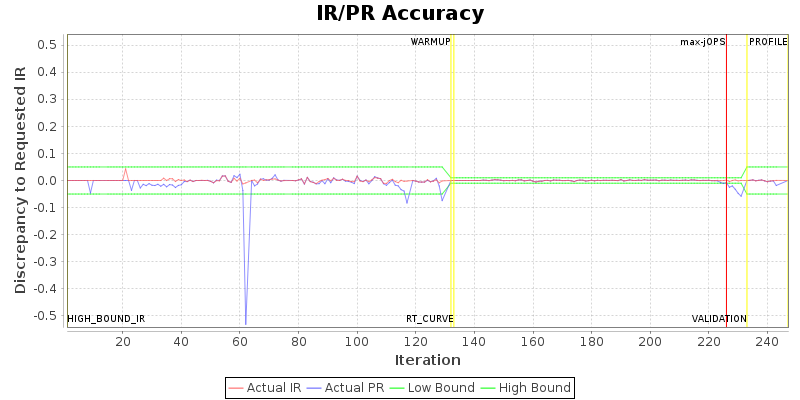

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256
specjbb.comm.connect.selector.runner.count	0	1	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
specjbb.comm.connect.timeouts.connect	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	256
specjbb.comm.connect.worker.pool.min	1	24	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	256	{Tier1=250, Tier2=7, Tier3=32}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	256	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 605211 IR

High-bound (settled) is 583232 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

H3C UniServer R4900 G6	556794 SPECjbb2015-MultiJVM max-jOPS 314859 SPECjbb2015-MultiJVM critical-jOPS
Tested by: H3C	Test Sponsor: H3C	Test location: Hangzhou, Zhejiang, China	Test date: March 19, 2024
SPEC license #: 9066	Hardware Availability: Dec-2023	Software Availability: Jan-2024	Publication: Thu Apr 25 10:18:08 EDT 2024
