SPECjbb2015 Report for jbb2015-20240326-01237 : 447116 max-jOPS ; 401776 critical-jOPS

SUT Description

Hardware hw_1
Name	UniServer R4900 G6
Vendor	H3C
Vendor URL	https://www.h3c.com/
Available	Dec-2023
Model	UniServer R4900 G6
Form Factor	2U
CPU Name	INTEL(R) XEON(R) PLATINUM 8592+
CPU Characteristics	64 Core, 1.90GHz, 320MB L3 Cache (Turbo Boost Technology up to 3.90 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	6.10.36
CPU Frequency (MHz)	1900
Primary Cache	32 KB(I)+48 KB(D) on chip per core
Secondary Cache	2 MB (I+D) on chip per core
Tertiary Cache	320 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 3.2 TB PCIe NVMe SSD
File System	ext4
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64 GB 2Rx4 DDR5 5600B
# and type of Network Interface Cards (NICs)	4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)	2 x 1300
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Ubuntu 22.04.3 LTS
Vendor	Ubuntu
Vendor URL	http://www.ubuntu.com/
Version	5.15.0-97-generic
Available	Aug-2023
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 21.0.2
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 21.0.2
Available	Jan-2024
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: DCU Streamer Prefetcher = Disabled SNC = Enable SNC2 (2-clusters) Patrol Scrub = Disabled SR-IOV Support = Disabled ENERGY_PERF_BIAS_CFG mode = Performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	tuned-adm profile latency-performance cpupower frequency-set -g performance ulimit -n 1024000 echo 18000000 > /sys/kernel/debug/sched/latency_ns echo 750 > /sys/kernel/debug/sched/migration_cost_ns echo 180000 > /sys/kernel/debug/sched/min_granularity_ns echo 12 > /sys/kernel/debug/sched/nr_migrate echo 1000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled ulimit -v 800000000 ulimit -m 800000000 ulimit -l 800000000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-XX:-UsePerfData -Xnoclassgc -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -server -XX:TargetSurvivorRatio=90 -XX:SurvivorRatio=34 -XX:LargePageSizeInBytes=2m -Xms225g -Xmx225g -Xmn220g -XX:ParallelGCThreads=64 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=11k
Tuning	numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	441232	447116	452999	458882	464765

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	326512	397109	414758	438290	444174	401776

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	17649 / 23532	5883 / 11766	- / 5883	- / 5883	- / 5883	- / 5883
1000us	441232 / 447116	23532 / 29415	11766 / 17649	11766 / 17649	5883 / 11766	- / 5883
5000us	447116 / -	447116 / -	370635 / 376518	294155 / 300038	182376 / 188259	47065 / 17649
10000us	447116 / -	447116 / -	441232 / 447116	423583 / 429466	323570 / 329454	47065 / 17649
25000us	447116 / -	447116 / -	447116 / -	441232 / 447116	394168 / 400051	47065 / 17649
50000us	447116 / -	447116 / -	447116 / -	447116 / -	411817 / 417700	105896 / 35299
75000us	447116 / -	447116 / -	447116 / -	447116 / -	435349 / 441232	229441 / 52948
100000us	447116 / -	447116 / -	447116 / -	447116 / -	441232 / 447116	317687 / 211792
200000us	447116 / -	447116 / -	447116 / -	447116 / -	447116 / -	417700 / 423583
500000us	447116 / -	447116 / -	447116 / -	447116 / -	447116 / -	447116 / -
1000000us	447116 / -	447116 / -	447116 / -	447116 / -	447116 / -	447116 / -

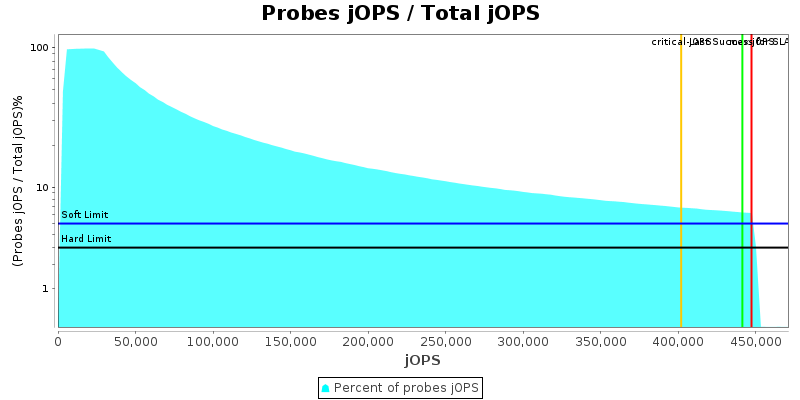

Number of probes

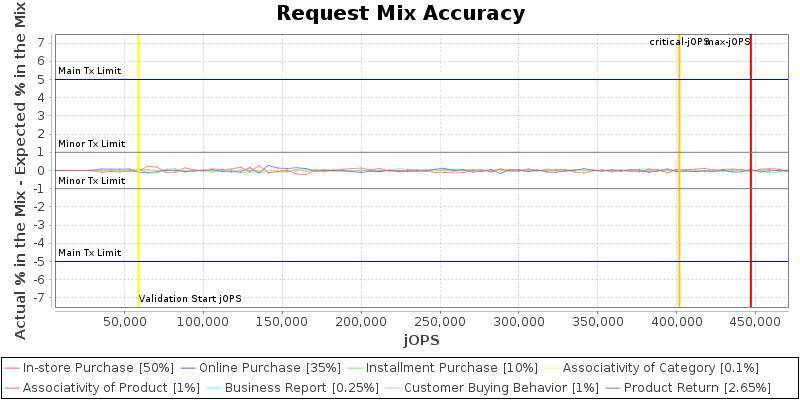

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

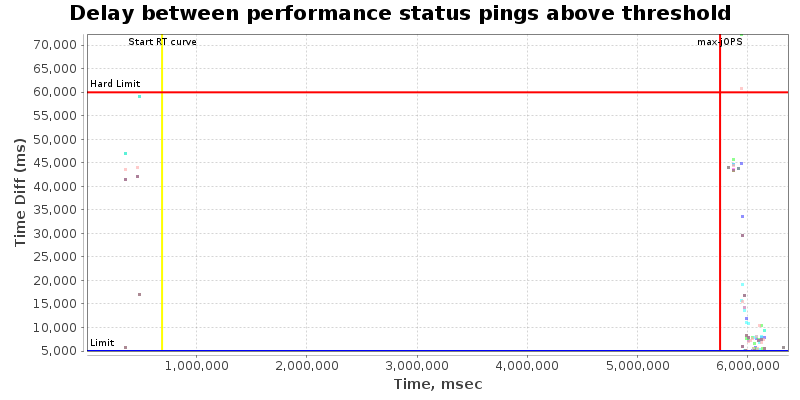

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	232	256	256	256	256	256	256	256	256
specjbb.comm.connect.selector.runner.count	0	1	0	0	0	0	0	0	0	0
specjbb.comm.connect.timeouts.connect	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	81	256	256	256	256	256	256	256	256
specjbb.comm.connect.worker.pool.min	1	24	1	1	1	1	1	1	1	1
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	256	{Tier1=124, Tier2=1, Tier3=8}
specjbb.group.count	1	4
specjbb.mapreducer.pool.size	256	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 588310 IR

High-bound (settled) is 490325 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

H3C UniServer R4900 G6	447116 SPECjbb2015-MultiJVM max-jOPS 401776 SPECjbb2015-MultiJVM critical-jOPS
Tested by: H3C	Test Sponsor: H3C	Test location: Hangzhou, Zhejiang, China	Test date: March 06, 2024
SPEC license #: 9066	Hardware Availability: Dec-2023	Software Availability: Jan-2024	Publication: Thu Apr 25 10:18:08 EDT 2024


SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 4) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
