SPECjbb2015 Report for jbb2015-20240221-01227 : 505379 max-jOPS ; 257205 critical-jOPS

SUT Description

Hardware hw_1
Name	FusionServer 5288 V7
Vendor	xFusion
Vendor URL	http://xfusion.com/
Available	Jan-2023
Model	FusionServer 5288 V7
Form Factor	4U
CPU Name	Intel Xeon Platinum 8490H
CPU Characteristics	60 Core, 1.9 GHz, 112.5 MB L3 Cache (Turbo Boost Technology up to 3.5 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	120
Cores Per Chip	60
Threads Per System	240
Threads Per Core	2
Version	2.00.55 released Mar-2023
CPU Frequency (MHz)	1900
Primary Cache	32KB(I)+ 48KB(D) per core
Secondary Cache	2MB (I+D) per core
Tertiary Cache	112.5MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 960 GB SATA SSD
File System	xfs
Memory Amount (GB)	512
# and size of DIMM(s)	16 x 32GB
Memory Details	16 x 32 GB 2Rx8 PC5-4800B-R;
# and type of Network Interface Cards (NICs)	1x 1 Gbit NIC
Power Supply Quantity and Rating (W)	2 x 2000W
Other Hardware	1x Intel E810-XXVDA2OCP3G Dual Port 25GbE Network Adapter
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux release 9.0 (Plow)
Vendor	Red Hat
Vendor URL	http://redhat.com/
Version	5.14.0-70.22.1.el9_0.x86_64
Available	Aug-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.10
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot(TM) 64-Bit Server VM, version 17.0.10
Available	Jan-2024
Bitness	64
Notes	note
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Tuning Performance Profile Set to Performance SNC Set to Enabled SNC4 (4-clusters)
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	ulimit -n 131072 cpupower frequency-set -g performance echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 16000000 > /sys/kernel/debug/sched/latency_ns echo 1000 > /sys/kernel/debug/sched/migration_cost_ns echo 28000000 > /sys/kernel/debug/sched/min_granularity_ns echo 9 > /sys/kernel/debug/sched/nr_migrate echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /sys/kernel/debug/sched/tunable_scaling echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled echo 300 > /sys/kernel/mm/hugepages/hugepages-1048576kB/nr_hugepages echo 300 > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages tuned-adm profile throughput-performance
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31744m -Xmx31744m -Xmn29696m -XX:ParallelGCThreads=30 -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -server -XX:TargetSurvivorRatio=99 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=1g -XX:UseAVX=0
Tuning	numactl used to affinitize each Backend JVM to a single memory node, eg: numactl --cpunodebind=$node --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	numactl used to affinitize each TxInjector JVM to a single memory node, eg: numactl --cpunodebind=$node --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	499701	505379	511058	516736	522415

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	173192	207262	275403	320831	354901	257205

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	11357 / 17035	5678 / 11357	- / 5678	- / 5678	- / 5678	- / 5678
1000us	255529 / 215780	22714 / 28392	11357 / 17035	11357 / 17035	5678 / 11357	- / 5678
5000us	471309 / 476987	420203 / 425881	306635 / 312313	215780 / 204423	96533 / 102212	17035 / 11357
10000us	471309 / 476987	431560 / 437238	335027 / 340705	283921 / 289599	170353 / 176031	17035 / 11357
25000us	476987 / 482666	454274 / 459952	391811 / 397489	352062 / 357740	204423 / 210102	17035 / 11357
50000us	482666 / 488344	459952 / 465630	408846 / 414525	374776 / 380454	272564 / 278243	17035 / 11357
75000us	482666 / 488344	465630 / 471309	420203 / 425881	391811 / 397489	317992 / 323670	28392 / 22714
100000us	488344 / 494023	465630 / 471309	431560 / 437238	408846 / 414525	352062 / 357740	204423 / 22714
200000us	488344 / 494023	476987 / 482666	454274 / 459952	442917 / 448595	420203 / 425881	317992 / 323670
500000us	505379 / -	488344 / 494023	476987 / 482666	471309 / 476987	465630 / 471309	437238 / 442917
1000000us	505379 / -	505379 / -	494023 / 499701	494023 / 499701	488344 / 494023	465630 / 471309

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	232
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	6000000
specjbb.comm.connect.timeouts.read	60000	6000000
specjbb.comm.connect.timeouts.write	60000	6000000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	240	{Tier1=234, Tier2=7, Tier3=30}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	240	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 567842 IR

High-bound (settled) is 526333 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

xFusion FusionServer 5288 V7	505379 SPECjbb2015-MultiJVM max-jOPS 257205 SPECjbb2015-MultiJVM critical-jOPS
Tested by: xFusion	Test Sponsor: xFusion	Test location: Shenzhen, China	Test date: Feb 20, 2024
SPEC license #: 6488	Hardware Availability: Jan-2023	Software Availability: Jan-2024	Publication: Thu Mar 7 11:29:29 EST 2024

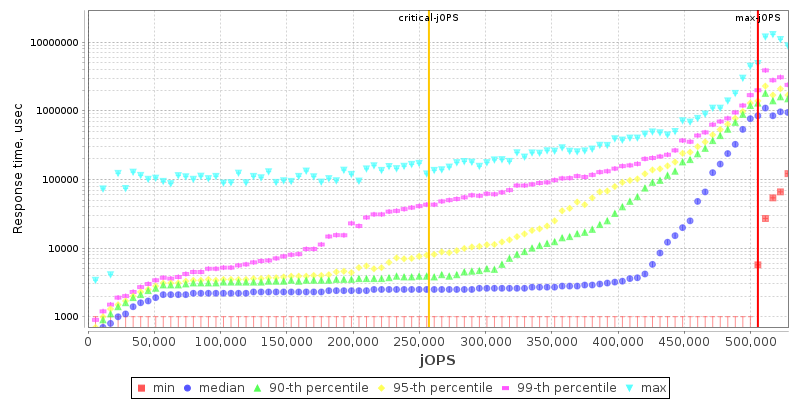

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 8) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
