SPECjbb2015 Report for jbb2015-20240130-01224 : 105051 max-jOPS ; 95313 critical-jOPS

SUT Description

Hardware hw_1
Name	SuperServer SYS-521C-NR
Vendor	Supermicro
Vendor URL	https://www.supermicro.com
Available	Dec-2023
Model	X13SEDW-F
Form Factor	2U
CPU Name	Intel Xeon Gold 5520+
CPU Characteristics	28 Core, 2.20 GHz, 52.5 MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	28
Cores Per Chip	28
Threads Per System	56
Threads Per Core	2
Version	2.1 12/06/2023
CPU Frequency (MHz)	2200
Primary Cache	32 KB(I) + 48 KB(D) per core
Secondary Cache	2 MB (I+D) per core
Tertiary Cache	52.5 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 480 GB M.2 NVMe SSD
File System	xfs
Memory Amount (GB)	512
# and size of DIMM(s)	8 x 64 GB
Memory Details	64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)	1 x 1200W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.9
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.9
Available	Oct-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: Intel HT Technology=Enable Turbo Mode=Enable SNC=SNC2 Enable DCU Streamer Prefetche=Enable Power Technology=Custom Power Performance Tuning=BIOS Controls EPB ENERGY_PERF_BIAS_CFG mode=Extreme Performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description	os_1
Tuning	tuned-adm profile throughput-performance ulimit -n 1024000 echo 18000000 > /sys/kernel/debug/sched/latency_ns systemctl stop systemd-update-utmp.service echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled echo 18000000 > /sys/kernel/debug/sched/latency_ns echo 180000 > /sys/kernel/debug/sched/min_granularity_ns echo 750 > /sys/kernel/debug/sched/migration_cost_ns echo 1000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 12 > /sys/kernel/debug/sched/nr_migrate ulimit -n 1024000 ulimit -v 800000000 ulimit -m 800000000 ulimit -l 800000000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xms225G -Xmx225G -Xmn220G -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:ParallelGCThreads=14 -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=90 -XX:-UsePerfData -Xnoclassgc -XX:SurvivorRatio=34 -XX:InlineSmallCode=25m -XX:InitialCodeCacheSize=11k
Tuning	Used numactl to affinitize one Backend JVM to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=1 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to affinitize one Injector JVM to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=1 --localalloc
Notes	None

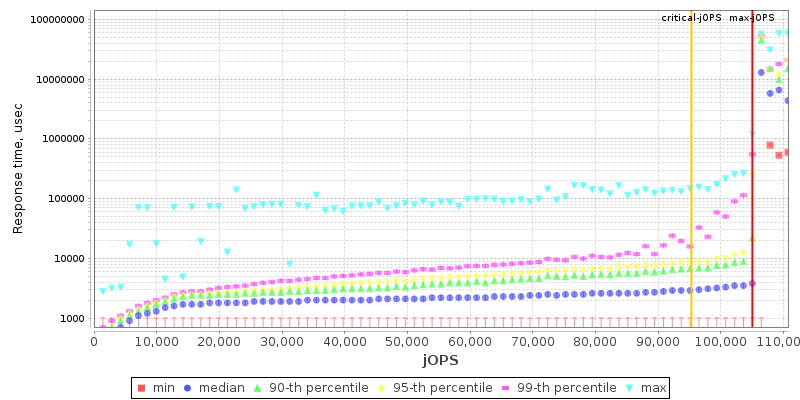

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	103632	105051	106471	107890	109310

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	77369	97243	100082	101502	102922	95313

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	2839 / 4259	1420 / 2839	1420 / 2839	- / 1420	- / 1420	- / 1420
1000us	75239 / 76659	5678 / 7098	4259 / 5678	4259 / 5678	2839 / 4259	- / 1420
5000us	105051 / -	105051 / -	78079 / 72400	59624 / 61043	38329 / 39749	14196 / 5678
10000us	105051 / -	105051 / -	103632 / 105051	99373 / 100792	78079 / 76659	31231 / 5678
25000us	105051 / -	105051 / -	105051 / -	103632 / 105051	97953 / 96533	31231 / 7098
50000us	105051 / -	105051 / -	105051 / -	103632 / 105051	100792 / 99373	31231 / 7098
75000us	105051 / -	105051 / -	105051 / -	103632 / 105051	100792 / 102212	58204 / 22714
100000us	105051 / -	105051 / -	105051 / -	103632 / 105051	102212 / 103632	73820 / 22714
200000us	105051 / -	105051 / -	105051 / -	103632 / 105051	103632 / 105051	99373 / 100792
500000us	105051 / -	105051 / -	105051 / -	105051 / -	103632 / 105051	103632 / 105051
1000000us	105051 / -	105051 / -	105051 / -	105051 / -	105051 / -	103632 / 105051

Number of probes

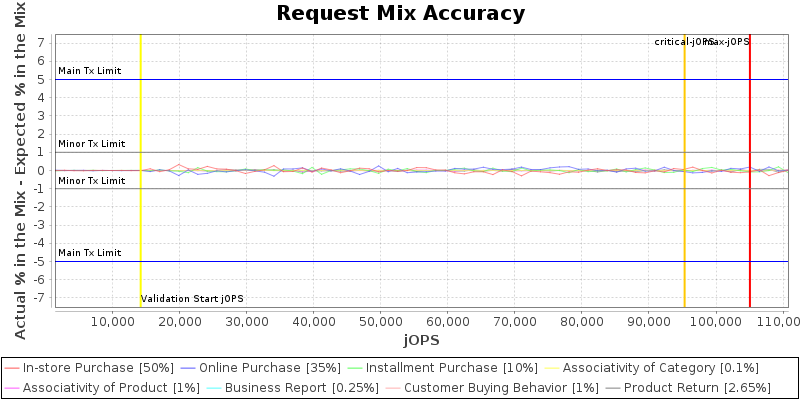

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

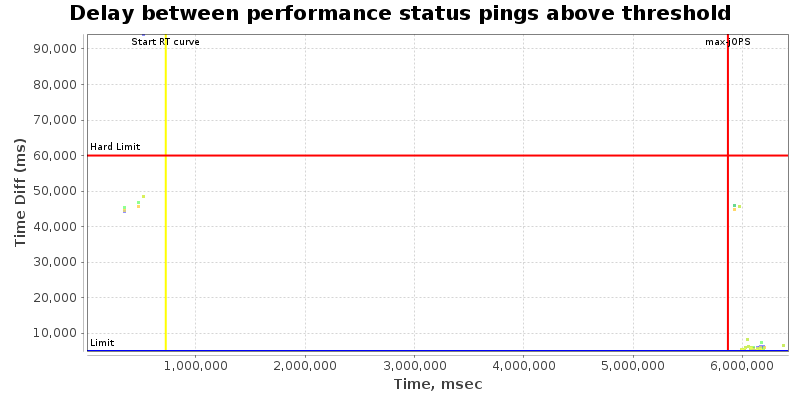

Delay between performance status pings during RT Curve (Response-Throughput Curve)

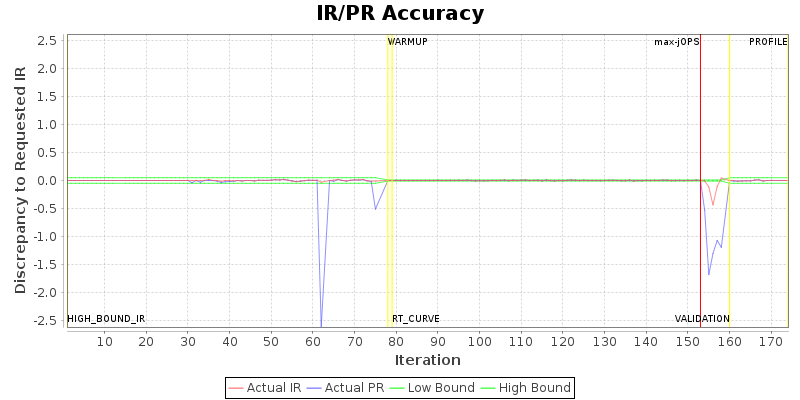

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	256
specjbb.comm.connect.selector.runner.count	0	0
specjbb.comm.connect.timeouts.connect	60000	60000
specjbb.comm.connect.timeouts.read	60000	60000
specjbb.comm.connect.timeouts.write	60000	60000
specjbb.comm.connect.worker.pool.max	256	256
specjbb.comm.connect.worker.pool.min	1	1
specjbb.controller.host	localhost	localhost
specjbb.controller.port	24000	24000
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	56	{Tier1=54, Tier2=1, Tier3=3}
specjbb.group.count	1	2
specjbb.mapreducer.pool.size	56	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 141961 IR

High-bound (settled) is 118334 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Supermicro SuperServer SYS-521C-NR	105051 SPECjbb2015-MultiJVM max-jOPS 95313 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro	Test Sponsor: Supermicro	Test location: San Jose, California	Test date: Jan 29, 2024
SPEC license #: 001176	Hardware Availability: Dec-2023	Software Availability: Dec-2023	Publication: Fri Feb 23 11:38:52 EST 2024
