SPECjbb2015 Report for jbb2015-20240110-01211 : 1158127 max-jOPS ; 809747 critical-jOPS

SUT Description

Hardware hw_1
Name	SuperServer SYS-681E-TR
Vendor	Supermicro
Vendor URL	https://www.supermicro.com
Available	Oct-2023
Model	X13OEI-CPU
Form Factor	6U
CPU Name	Intel Xeon Platinum 8490H
CPU Characteristics	60 Core, 1.90 GHz, 112.5 MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	8
Cores Per System	480
Cores Per Chip	60
Threads Per System	960
Threads Per Core	120
Version	1.0b 10/16/2023
CPU Frequency (MHz)	1900
Primary Cache	32 KB(I) + 48 KB(D) per core
Secondary Cache	2 MB (I+D) per core
Tertiary Cache	112.5 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 480 GB M.2 NVMe SSD
File System	xfs
Memory Amount (GB)	2048
# and size of DIMM(s)	32 x 64 GB
Memory Details	Micron 64 GB 4Gbx4 PC5-4800 MTC40F2046S1RC48BA1
# and type of Network Interface Cards (NICs)	2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)	4 x PWS-2K63A-1R
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Ubuntu 22.04.3 LTS server-amd64
Vendor	Ubuntu
Vendor URL	https://ubuntu.com/
Version	5.15.0-89-generic
Available	Aug-2023
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.9
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.9
Available	Oct-2023
Bitness	64
Notes	note
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: Intel HT Technology=Enable Hardware Prefetcher=Enabled Turbo Mode=Enable SNC=AUTO Power Performance Tuning=BIOS Controls EPB ENERGY_PERF_BIAS_CFG mode=Maximum Performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000 echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled echo 10 > /proc/sys/vm/swappiness echo 10 > /proc/sys/vm/dirty_background_ratio echo 40 > /proc/sys/vm/dirty_ratio echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 10000 > /proc/sys/vm/dirty_expire_centisecs
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms240g -Xmx240g -Xmn220g -server -XX:MetaspaceSize=512m -XX:AllocatePrefetchInstr=2 -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=60 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120 -XX:UseAVX=0
Tuning	Used numactl to affinitize one Backend JVM to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2:numactl --cpunodebind=1 --localalloc Group3:numactl --cpunodebind=2 --localalloc Group4:numactl --cpunodebind=3 --localalloc Group5:numactl --cpunodebind=4 --localalloc Group6:numactl --cpunodebind=5 --localalloc Group7:numactl --cpunodebind=6 --localalloc Group8:numactl --cpunodebind=7 --localalloc Group9:numactl --cpunodebind=8 --localalloc Group10:numactl --cpunodebind=9 --localalloc Group11:numactl --cpunodebind=10 --localalloc Group12:numactl --cpunodebind=11 --localalloc Group13:numactl --cpunodebind=12 --localalloc Group14:numactl --cpunodebind=13 --localalloc Group15:numactl --cpunodebind=14 --localalloc Group15:numactl --cpunodebind=15 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	Used numactl to affinitize 1 Injector JVM to one NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2:numactl --cpunodebind=1 --localalloc Group3:numactl --cpunodebind=2 --localalloc Group4:numactl --cpunodebind=3 --localalloc Group5:numactl --cpunodebind=4 --localalloc Group6:numactl --cpunodebind=5 --localalloc Group7:numactl --cpunodebind=6 --localalloc Group8:numactl --cpunodebind=7 --localalloc Group9:numactl --cpunodebind=8 --localalloc Group10:numactl --cpunodebind=9 --localalloc Group11:numactl --cpunodebind=10 --localalloc Group12:numactl --cpunodebind=11 --localalloc Group13:numactl --cpunodebind=12 --localalloc Group14:numactl --cpunodebind=13 --localalloc Group15:numactl --cpunodebind=14 --localalloc Group15:numactl --cpunodebind=15 --localalloc
Notes	None

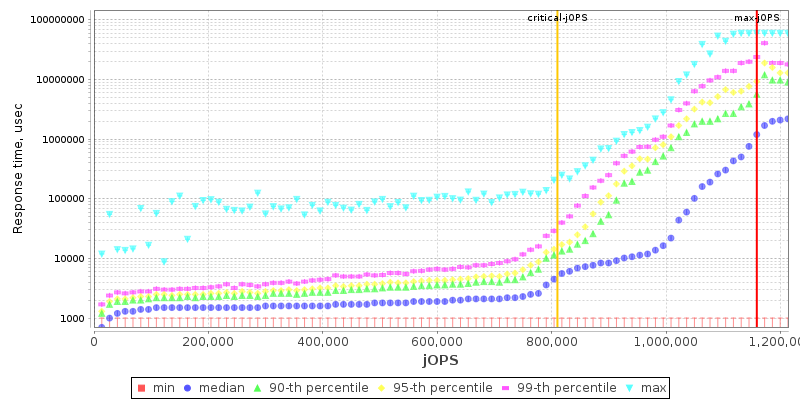

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	1144502	1158127	1171752	1185377	1199002

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	742563	797063	824313	837938	851563	809747

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	13625 / 27250	- / 13625	- / 13625	- / 13625	- / 13625	- / 13625
1000us	708501 / 722126	27250 / 40875	- / 13625	- / 13625	- / 13625	- / 13625
5000us	1076377 / 1090002	803876 / 817501	749376 / 763001	708501 / 694876	463251 / 422376	- / 13625
10000us	1158127 / -	912876 / 926501	776626 / 790251	776626 / 790251	735751 / 749376	122625 / 13625
25000us	1158127 / -	1008251 / 1021876	858376 / 872001	844751 / 858376	790251 / 803876	163500 / 27250
50000us	1158127 / -	1021876 / 1035501	885626 / 899251	858376 / 872001	817501 / 831126	163500 / 27250
75000us	1158127 / -	1035501 / 1049127	899251 / 912876	872001 / 885626	831126 / 844751	545001 / 136250
100000us	1158127 / -	1035501 / 1049127	912876 / 926501	885626 / 899251	844751 / 858376	694876 / 149875
200000us	1158127 / -	1076377 / 1090002	940126 / 953751	912876 / 926501	872001 / 885626	790251 / 803876
500000us	1158127 / -	1117252 / 1130877	981001 / 994626	967376 / 981001	912876 / 926501	872001 / 885626
1000000us	1158127 / -	1144502 / 1158127	1008251 / 1021876	994626 / 1008251	981001 / 994626	912876 / 926501

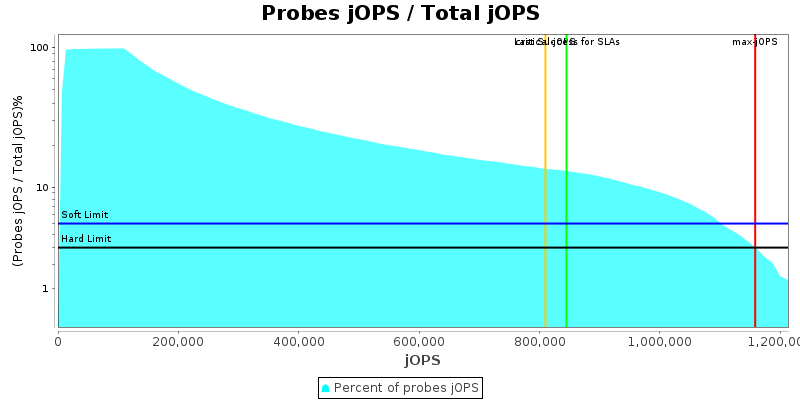

Number of probes

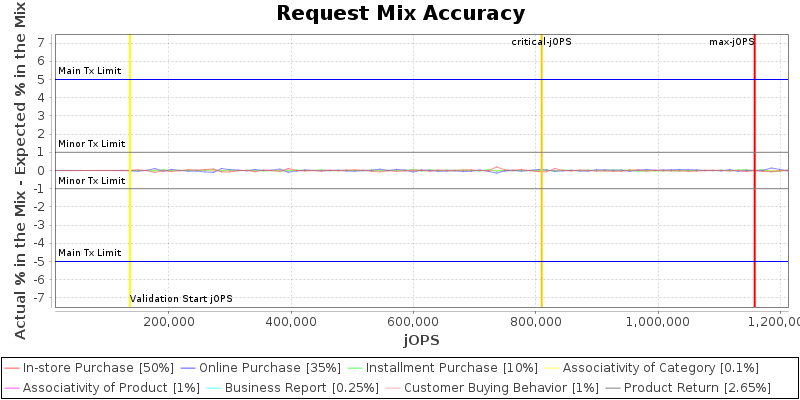

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	232	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150
specjbb.comm.connect.selector.runner.count	0	16	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8	8
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	81	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150	150
specjbb.comm.connect.worker.pool.min	1	24	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
specjbb.controller.handshake.period	5000	20000
specjbb.controller.handshake.timeout	600000	900000
specjbb.controller.host	localhost	localhost
specjbb.controller.port	24000	24000
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	960	{Tier1=96, Tier2=1, Tier3=15}
specjbb.group.count	1	16
specjbb.heartbeat.period	10000	2000
specjbb.heartbeat.threshold	100000	9000000
specjbb.mapreducer.pool.size	960	64
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 1362502 IR

High-bound (settled) is 1261565 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Supermicro SuperServer SYS-681E-TR	1158127 SPECjbb2015-MultiJVM max-jOPS 809747 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro	Test Sponsor: Supermicro	Test location: San Jose, California	Test date: Dec 19, 2023
SPEC license #: 001176	Hardware Availability: Jan-2023	Software Availability: Oct-2023	Publication: Fri Jan 26 09:12:15 EST 2024


SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 16) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
