SPECjbb2015 Report for jbb2015-20231130-01207 : 429466 max-jOPS ; 380539 critical-jOPS

SUT Description

Hardware hw_1
Name	QuantaGrid D54Q-2U
Vendor	Quanta Cloud Technology
Vendor URL	https://www.qct.io/
Available	Dec-2023
Model	QuantaGrid D54Q-2U
Form Factor	2U
CPU Name	Intel Xeon Platinum 8592+
CPU Characteristics	64 Core, 1.90 GHz, 320 MB L3 Cache (Turbo Boost Technology up to 3.90 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	3B05.QCT4T1 11/06/2023
CPU Frequency (MHz)	1900
Primary Cache	32 KB(I) + 48 KB(D) on chip per core
Secondary Cache	2 MB (I+D) on chip per core
Tertiary Cache	320 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 256GB NVME M.2 SSD
File System	ext4
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64 GB 2Rx4 PC5-5600B-R
# and type of Network Interface Cards (NICs)	1 x 10 GbE two ports OCP3.0 PCIE NIC
Power Supply Quantity and Rating (W)	1 x 2600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Ubuntu 22.04.3 LTS
Vendor	Ubuntu
Vendor URL	http://ubuntu.com/
Version	5.15.0-89-generic.x86_64
Available	Aug-2023
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.9
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.9
Available	Oct-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Sub NUMA Cluster set to Enabled SNC2 (2-clusters) Patrol Scrub set to Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance systemctl stop systemd-update-utmp-runlevel.service echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled echo 18000000 > /sys/kernel/debug/sched/latency_ns echo 180000 > /sys/kernel/debug/sched/min_granularity_ns echo 750 > /sys/kernel/debug/sched/migration_cost_ns echo 1000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 12 > /sys/kernel/debug/sched/nr_migrate ulimit -n 1024000 ulimit -v 800000000 ulimit -m 800000000 ulimit -l 800000000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	numactl used to interleave the controller amongst all available nodes, eg: numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-XX:-UsePerfData -Xnoclassgc -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -server -XX:TargetSurvivorRatio=90 -XX:SurvivorRatio=34 -XX:LargePageSizeInBytes=2m -Xms225g -Xmx225g -Xmn220g -XX:ParallelGCThreads=64 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=11k
Tuning	Used numactl to affinitize each Backend JVM to a NUMA node, eg: Group 1: numactl --cpunodebind=0 --localalloc Group 2: numactl --cpunodebind=1 --localalloc Group 3: numactl --cpunodebind=2 --localalloc Group 4: numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to affinitize each TxInjector JVM to a NUMA node, eg: Group 1: numactl --cpunodebind=0 --localalloc Group 2: numactl --cpunodebind=1 --localalloc Group 3: numactl --cpunodebind=2 --localalloc Group 4: numactl --cpunodebind=3 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	423583	429466	435349	441232	447116

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	314745	360830	397109	420641	420641	380539

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	11766 / 17649	- / 5883	- / 5883	- / 5883	- / 5883	- / 5883
1000us	400051 / 405934	17649 / 23532	11766 / 17649	5883 / 11766	5883 / 11766	- / 5883
5000us	429466 / -	429466 / -	352986 / 358869	282389 / 288272	176493 / 182376	23532 / 17649
10000us	429466 / -	429466 / -	423583 / 429466	405934 / 411817	311804 / 317687	47065 / 17649
25000us	429466 / -	429466 / -	429466 / -	423583 / 429466	364752 / 352986	47065 / 17649
50000us	429466 / -	429466 / -	429466 / -	423583 / 429466	394168 / 400051	129428 / 58831
75000us	429466 / -	429466 / -	429466 / -	423583 / 429466	417700 / 423583	229441 / 64714
100000us	429466 / -	429466 / -	429466 / -	429466 / -	417700 / 423583	323570 / 264739
200000us	429466 / -	429466 / -	429466 / -	429466 / -	423583 / 429466	400051 / 405934
500000us	429466 / -	429466 / -	429466 / -	429466 / -	429466 / -	423583 / 429466
1000000us	429466 / -	429466 / -	429466 / -	429466 / -	429466 / -	429466 / -

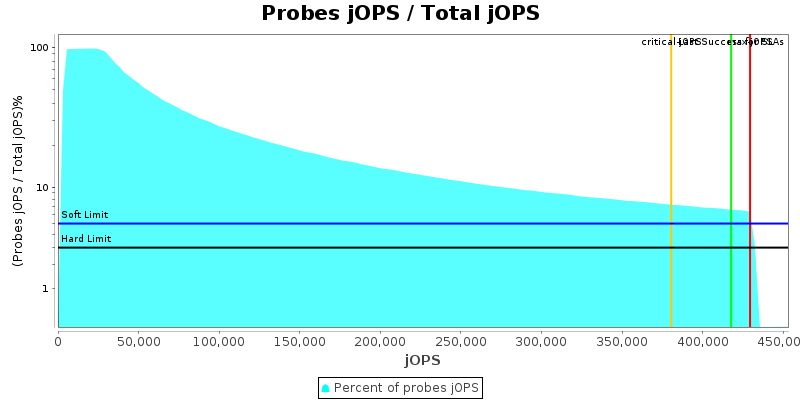

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

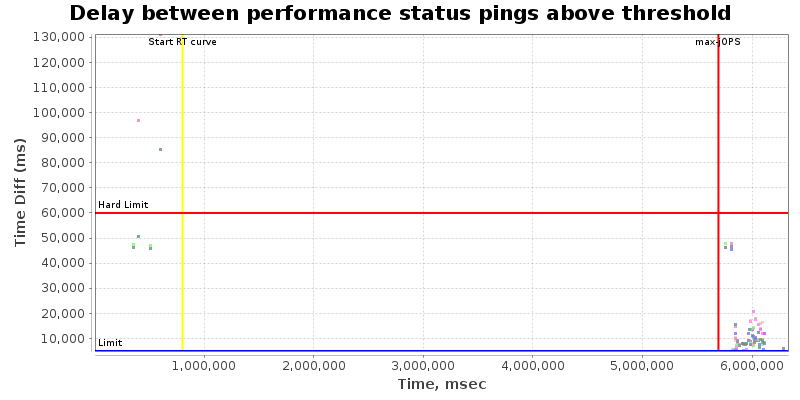

Delay between performance status pings during RT Curve (Response-Throughput Curve)

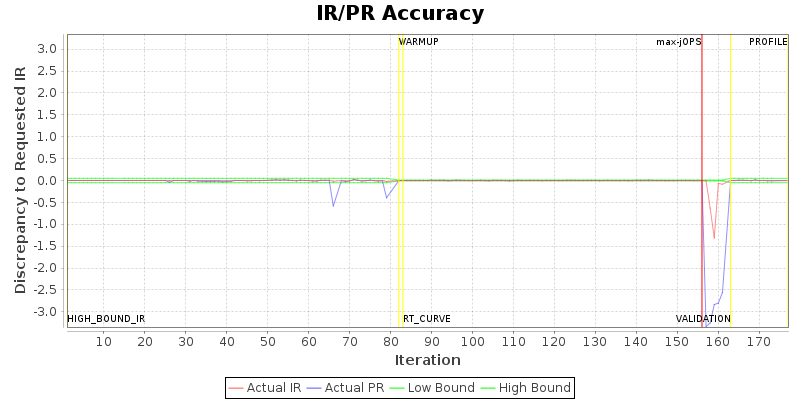

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM2	Group3.Backend.beJVM	Group3.TxInjector.txiJVM3	Group4.Backend.beJVM	Group4.TxInjector.txiJVM4
specjbb.comm.connect.client.pool.size	256	232	256	256	256	256	256	256	256	256
specjbb.comm.connect.selector.runner.count	0	1	0	0	0	0	0	0	0	0
specjbb.comm.connect.timeouts.connect	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	81	256	256	256	256	256	256	256	256
specjbb.comm.connect.worker.pool.min	1	24	1	1	1	1	1	1	1	1
specjbb.controller.host	localhost	localhost
specjbb.controller.port	24000	24000
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	256	{Tier1=124, Tier2=1, Tier3=8}
specjbb.group.count	1	4
specjbb.mapreducer.pool.size	256	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 588310 IR

High-bound (settled) is 490325 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Quanta Cloud Technology QuantaGrid D54Q-2U	429466 SPECjbb2015-MultiJVM max-jOPS 380539 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Quanta Computer Inc.	Test Sponsor: Quanta Computer Inc.	Test location: Taoyuan, TW	Test date: Nov 29, 2023
SPEC license #: 9050	Hardware Availability: Dec-2023	Software Availability: Oct-2023	Publication: Thu Dec 14 10:44:19 EST 2023
