SPECjbb2015 Report for jbb2015-20231115-01184 : 811237 max-jOPS ; 348514 critical-jOPS

SUT Description

Hardware hw_1
Name	QuantaGrid D44N-1U
Vendor	Quanta Cloud Technology
Vendor URL	http://qct.io
Available	Nov-2023
Model	QuantaGrid D44N-1U
Form Factor	1U
CPU Name	AMD EPYC 9654
CPU Characteristics	96 core, 2.4GHz, 384MB L3 Cache (Max. Boost Clock up to 3.7GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	192
Cores Per Chip	96
Threads Per System	384
Threads Per Core	2
Version	3A02 released Sep-2023
CPU Frequency (MHz)	2400
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	384 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 960 GB NVMe SSD
File System	XFS
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64GB 2Rx4 PC5-38400R , running at 4800 MHz
# and type of Network Interface Cards (NICs)	Intel 10 Gigabit Ethernet X710-AT2 2-port
Power Supply Quantity and Rating (W)	1 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.8
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 17.0.8
Available	Jul-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	L1 Stream HW Prefetcher : Disabled L2 Stream HW Prefetcher : Disabled NUMA Nodes Per Socket : NPS4 L3 cache as NUMA Domain : Enabled Determinism Slider : Power Determinism ACPI CST C2 Latency : 18 PPT Control : 400
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(24), jvm_TxInjector_1(24)
OS Image Description	os_1
Tuning	echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 150000000 > /proc/sys/kernel/sched_latency_ns echo 80000 > /proc/sys/kernel/sched_migration_cost_ns echo 300000 > /proc/sys/kernel/sched_min_granularity_ns echo 300000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing UserTasksMax=970000 DefaultTasksMax=970000 echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag ulimit -n 1024000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms8g -Xmx8g -Xmn6g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=12 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning	Used numactl to affinitize each Backend JVM to physcical cores in a NUMA node. numactl --physcpubind=0-7,192-199 --localalloc numactl --physcpubind=8-15,200-207 --localalloc numactl --physcpubind=16-23,208-215 --localalloc numactl --physcpubind=24-31,216-223 --localalloc numactl --physcpubind=32-39,224-231 --localalloc numactl --physcpubind=40-47,232-239 --localalloc numactl --physcpubind=48-55,240-247 --localalloc numactl --physcpubind=56-63,248-255 --localalloc numactl --physcpubind=64-71,256-263 --localalloc numactl --physcpubind=72-79,264-271 --localalloc numactl --physcpubind=80-87,272-279 --localalloc numactl --physcpubind=88-95,280-287 --localalloc numactl --physcpubind=96-103,288-295 --localalloc numactl --physcpubind=104-111,296-303 --localalloc numactl --physcpubind=112-119,304-311 --localalloc numactl --physcpubind=120-127,312-319 --localalloc numactl --physcpubind=128-135,320-327 --localalloc numactl --physcpubind=136-143,328-335 --localalloc numactl --physcpubind=144-151,336-343 --localalloc numactl --physcpubind=152-159,344-351 --localalloc numactl --physcpubind=160-167,352-359 --localalloc numactl --physcpubind=168-175,360-367 --localalloc numactl --physcpubind=176-183,368-375 --localalloc numactl --physcpubind=184-191,376-383 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms8g -Xmx8g -Xmn6g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to affinitize each Backend JVM to physcical cores in a NUMA node. numactl --physcpubind=0-7,192-199 --localalloc numactl --physcpubind=8-15,200-207 --localalloc numactl --physcpubind=16-23,208-215 --localalloc numactl --physcpubind=24-31,216-223 --localalloc numactl --physcpubind=32-39,224-231 --localalloc numactl --physcpubind=40-47,232-239 --localalloc numactl --physcpubind=48-55,240-247 --localalloc numactl --physcpubind=56-63,248-255 --localalloc numactl --physcpubind=64-71,256-263 --localalloc numactl --physcpubind=72-79,264-271 --localalloc numactl --physcpubind=80-87,272-279 --localalloc numactl --physcpubind=88-95,280-287 --localalloc numactl --physcpubind=96-103,288-295 --localalloc numactl --physcpubind=104-111,296-303 --localalloc numactl --physcpubind=112-119,304-311 --localalloc numactl --physcpubind=120-127,312-319 --localalloc numactl --physcpubind=128-135,320-327 --localalloc numactl --physcpubind=136-143,328-335 --localalloc numactl --physcpubind=144-151,336-343 --localalloc numactl --physcpubind=152-159,344-351 --localalloc numactl --physcpubind=160-167,352-359 --localalloc numactl --physcpubind=168-175,360-367 --localalloc numactl --physcpubind=176-183,368-375 --localalloc numactl --physcpubind=184-191,376-383 --localalloc
Notes	None

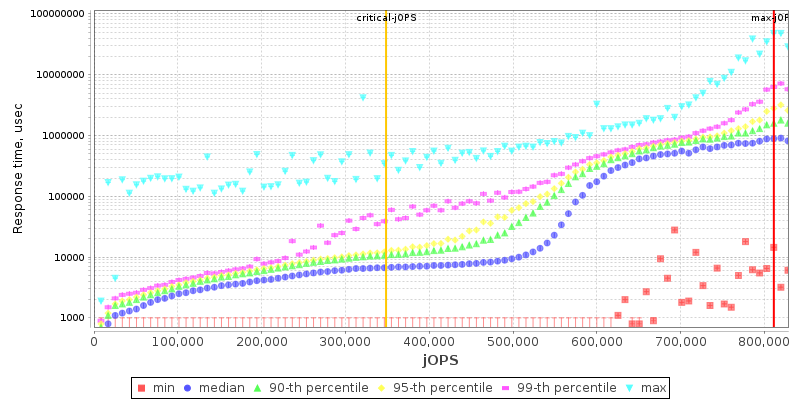

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	794337	802787	811237	819688	828138

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	232386	289426	375197	426744	477447	348514

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	16901 / 25351	8450 / 16901	- / 8450	- / 8450	- / 8450	- / 8450
1000us	101405 / 109855	16901 / 25351	8450 / 16901	8450 / 16901	8450 / 16901	- / 8450
5000us	540825 / 549275	236611 / 245061	160557 / 169008	152107 / 160557	126756 / 135206	25351 / 16901
10000us	566176 / 574627	507023 / 515474	312664 / 321115	287313 / 295764	228161 / 236611	25351 / 16901
25000us	574627 / 583077	549275 / 557726	490123 / 498573	439420 / 447871	295764 / 270412	25351 / 16901
50000us	583077 / 591527	557726 / 566176	515474 / 523924	490123 / 498573	388718 / 354916	25351 / 16901
75000us	591527 / 599978	566176 / 574627	532375 / 540825	507023 / 515474	430970 / 422519	25351 / 16901
100000us	599978 / 608428	574627 / 583077	540825 / 549275	532375 / 540825	490123 / 464771	25351 / 16901
200000us	642230 / 650680	599978 / 608428	566176 / 574627	557726 / 566176	540825 / 549275	338016 / 76054
500000us	794337 / 802787	684482 / 692932	633779 / 642230	625329 / 633779	608428 / 616878	473222 / 321115
1000000us	811237 / -	811237 / -	760535 / 768985	743634 / 752085	709833 / 718283	591527 / 321115

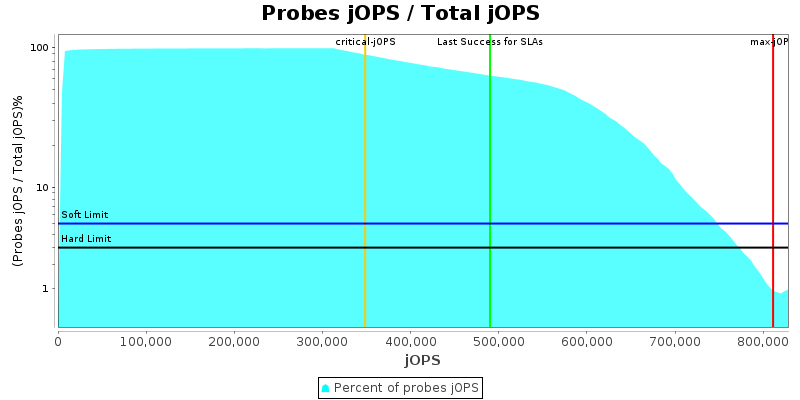

Number of probes

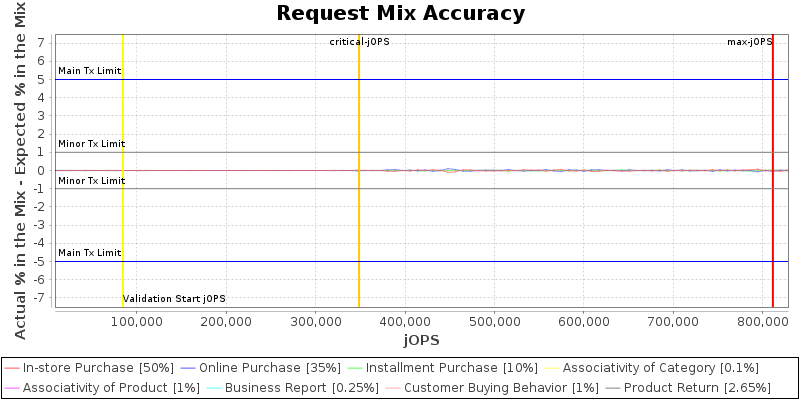

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

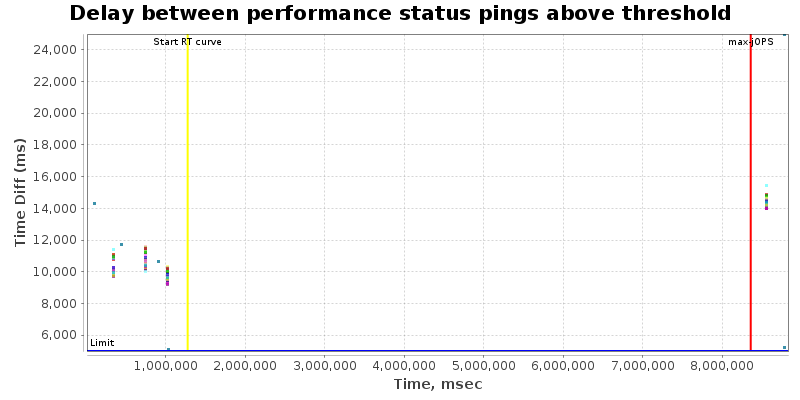

Delay between performance status pings during RT Curve (Response-Throughput Curve)

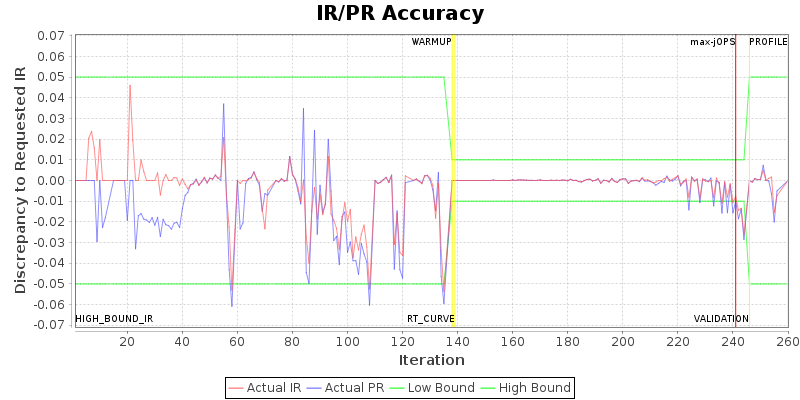

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group17.Backend.beJVM	Group17.TxInjector.txiJVM1	Group18.Backend.beJVM	Group18.TxInjector.txiJVM1	Group19.Backend.beJVM	Group19.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group20.Backend.beJVM	Group20.TxInjector.txiJVM1	Group21.Backend.beJVM	Group21.TxInjector.txiJVM1	Group22.Backend.beJVM	Group22.TxInjector.txiJVM1	Group23.Backend.beJVM	Group23.TxInjector.txiJVM1	Group24.Backend.beJVM	Group24.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	10	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170
specjbb.comm.connect.selector.runner.count	0	10	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	150	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200
specjbb.comm.connect.worker.pool.min	1	16	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1	32	1
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.customerDriver.threads	64	{probe=130, saturate=300, service=160}
specjbb.forkjoin.workers	384	{Tier1=800, Tier2=45, Tier3=160}
specjbb.group.count	1	24
specjbb.mapreducer.pool.size	384	10
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 845039 IR

High-bound (settled) is 818540 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Quanta Cloud Technology, QuantaGrid D44N-1U	811237 SPECjbb2015-MultiJVM max-jOPS 348514 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Quanta Computer Inc.	Test Sponsor: Quanta Computer Inc.	Test location: Taoyuan, TW, R.O.C	Test date: Oct 5, 2023
SPEC license #: 9050	Hardware Availability: Nov-2023	Software Availability: Jul-2023	Publication: Thu Nov 30 22:47:46 EST 2023
