SPECjbb2015 Report for jbb2015-20231018-01178 : 424345 max-jOPS ; 225692 critical-jOPS

SUT Description

Hardware hw_1
Name	NF3280G7
Vendor	IEIT Systems Co., Ltd.
Vendor URL	https://www.ieisystem.com/
Available	Oct-2023
Model	NF3280G7
Form Factor	2U
CPU Name	AMD EPYC 9654
CPU Characteristics	96 Core, 2.40 GHz, 384 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	96
Cores Per Chip	96
Threads Per System	192
Threads Per Core	2
Version	01.00.10
CPU Frequency (MHz)	2400
Primary Cache	32 KB(I)+32 KB(D)on chip per core
Secondary Cache	1MB (I+D) per core
Tertiary Cache	384MB (I+D) on chip per chip
Other Cache	None
Disk	1x 1TB NVMe SSD
File System	xfs
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64GB
Memory Details	12 x 64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)	2 x 1300W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.8
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 17.0.8
Available	Jul-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Tuning L1 Stream HW Prefetcher = Disabled L2 Stream HW Prefetcher = Disabled TDP Control = Manual TDP = 400 PPT Control = Manual PPT = 400 Determinism Control = Manual Determinism Slider = Power NUMA nodes per socket = NPS4 ACPI SRAT L3 Cache as NUMA Domain = Enabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(12), jvm_TxInjector_1(12)
OS Image Description	os_1
Tuning	ulimit -n 1024000 cpupower frequency-set -g performance echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 40000 > /sys/kernel/debug/sched/migration_cost_ns echo 10 > /proc/sys/vm/dirty_background_ratio echo 0 > /proc/sys/vm/numa_stat echo 0 > /proc/sys/kernel/numa_balancing echo 10 > /proc/sys/vm/swappiness echo 400000 > /sys/kernel/debug/sched/latency_ns echo 40 > /proc/sys/vm/dirty_ratio echo 800000000 > /sys/kernel/debug/sched/min_granularity_ns echo 200000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=20 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning	numactl used to affinitize each Backend JVM to a single NUMA node, eg: numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=4 --localalloc numactl --cpunodebind=5 --localalloc numactl --cpunodebind=6 --localalloc numactl --cpunodebind=7 --localalloc numactl --cpunodebind=8 --localalloc numactl --cpunodebind=9 --localalloc numactl --cpunodebind=10 --localalloc numactl --cpunodebind=11 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning	numactl used to affinitize each TxInjector JVM to a single NUMA node, eg: numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=4 --localalloc numactl --cpunodebind=5 --localalloc numactl --cpunodebind=6 --localalloc numactl --cpunodebind=7 --localalloc numactl --cpunodebind=8 --localalloc numactl --cpunodebind=9 --localalloc numactl --cpunodebind=10 --localalloc numactl --cpunodebind=11 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	414476	419410	424345	429279	434213

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	150494	185034	244245	283719	303456	225692

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	4934 / 9868	- / 4934	- / 4934	- / 4934	- / 4934	- / 4934
1000us	69079 / 14803	4934 / 9868	4934 / 9868	- / 4934	- / 4934	- / 4934
5000us	365134 / 370068	300989 / 305923	98685 / 103619	93751 / 98685	83882 / 88816	4934 / 9868
10000us	370068 / 375002	345397 / 350331	261515 / 266449	222041 / 226975	148027 / 152961	19737 / 14803
25000us	375002 / 379936	360200 / 365134	315791 / 320726	291120 / 296054	182567 / 187501	19737 / 14803
50000us	384871 / 389805	365134 / 370068	335528 / 340463	315791 / 320726	241778 / 246712	19737 / 14803
75000us	384871 / 389805	370068 / 375002	345397 / 350331	325660 / 330594	281252 / 286186	19737 / 14803
100000us	389805 / 394739	375002 / 379936	350331 / 355265	340463 / 345397	300989 / 305923	103619 / 14803
200000us	399673 / 404608	384871 / 389805	370068 / 375002	365134 / 370068	350331 / 355265	251646 / 14803
500000us	419410 / 424345	404608 / 409542	389805 / 394739	384871 / 389805	379936 / 384871	350331 / 355265
1000000us	424345 / -	419410 / 424345	414476 / 419410	414476 / 419410	404608 / 409542	379936 / 384871

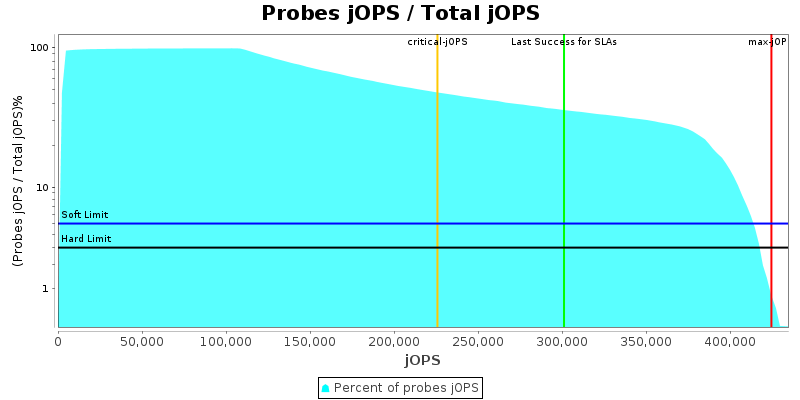

Number of probes

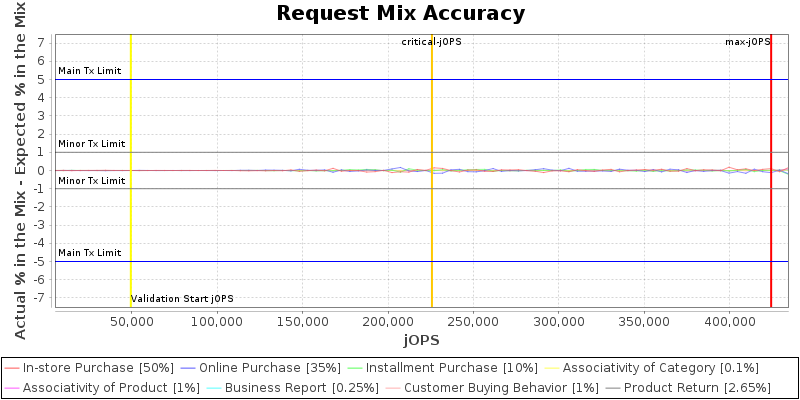

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

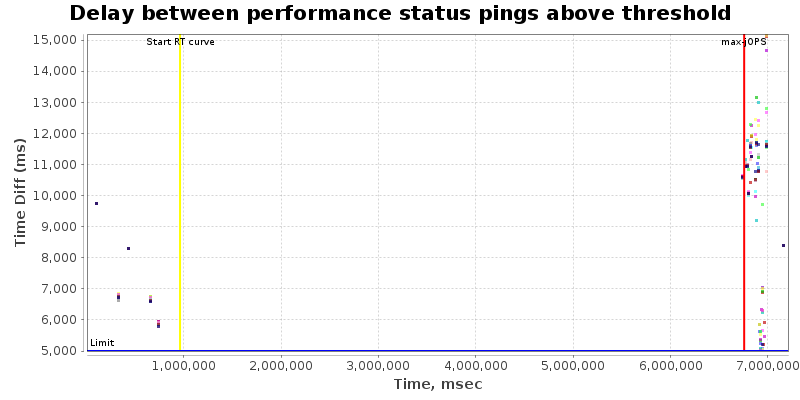

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150
specjbb.comm.connect.selector.runner.count	0	2	4	0	4	0	4	0	4	0	4	0	4	0	4	0	4	0	4	0	4	0	4	0	4	0
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	256	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150
specjbb.comm.connect.worker.pool.min	1	1	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.controller.rtcurve.warmup.step	0.1	0.1
specjbb.customerDriver.threads	64	{probe=90, saturate=140, service=90}
specjbb.forkjoin.workers	192	{Tier1=147, Tier2=6, Tier3=17}
specjbb.group.count	1	12
specjbb.mapreducer.pool.size	192	6
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 493424 IR

High-bound (settled) is 449725 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

IEIT Systems Co., Ltd. NF3280G7	424345 SPECjbb2015-MultiJVM max-jOPS 225692 SPECjbb2015-MultiJVM critical-jOPS
Tested by: IEIT Systems Co., Ltd.	Test Sponsor: IEIT Systems Co., Ltd.	Test location: Jinan, China	Test date: Oct 7, 2023
SPEC license #: 3358	Hardware Availability: Oct-2023	Software Availability: Jul-2023	Publication: Thu Nov 2 12:07:05 EDT 2023

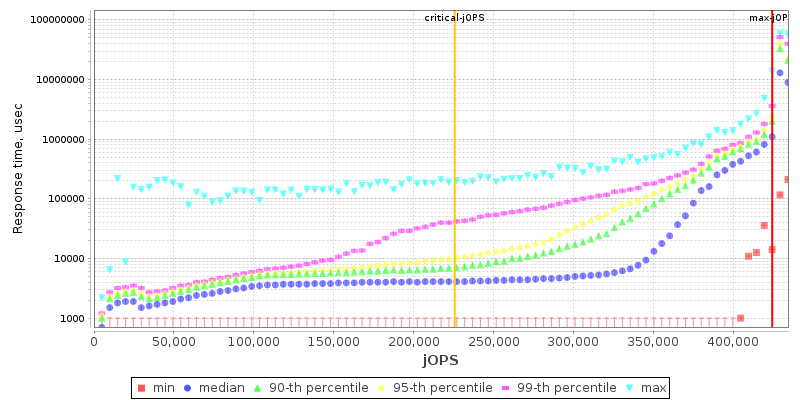

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 12) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
