SPECjbb2015 Report for jbb2015-20231018-01175 : 497170 max-jOPS ; 222613 critical-jOPS

SUT Description

Hardware hw_1
Name	RS520A-E12-RS12U
Vendor	ASUSTeK Computer Inc.
Vendor URL	https://www.asus.com/
Available	Jun-2023
Model	RS520A-E12-RS12U
Form Factor	2U
CPU Name	AMD EPYC 9684X
CPU Characteristics	96 Core, 2.55 GHz, 1152 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	96
Cores Per Chip	96
Threads Per System	192
Threads Per Core	2
Version	0901
CPU Frequency (MHz)	2550
Primary Cache	32 KB(I) + 32 KB(D) per core
Secondary Cache	1 MB (I+D) per core
Tertiary Cache	1152 MB (I+D) per chip
Other Cache	None
Disk	1 x 1.6 TB PCIe NVMe SSD
File System	xfs
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64 GB
Memory Details	64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 2 ports Intel X710 10GbE
Power Supply Quantity and Rating (W)	2 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.8
Vendor	Oracle
Vendor URL	https://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.8
Available	Jul-2023
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	RS720A-E12-RS12
Vendor	ASUSTeK Computer Inc.
Vendor URL	https://www.asus.com/
Available	Jun-2023
Model	RS720A-E12-RS12
Form Factor	2U
CPU Name	AMD EPYC 9684X
CPU Characteristics	96 Core, 2.55 GHz, 1152 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	192
Cores Per Chip	96
Threads Per System	384
Threads Per Core	2
Version	0902
CPU Frequency (MHz)	2550
Primary Cache	32 KB (I) + 32 KB (D) on chip per core
Secondary Cache	1 MB (I+D) on chip per core
Tertiary Cache	1152 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 4 TB PCIe NVMe SSD
File System	xfs
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)	1 x 2 ports Intel X710 10GbE
Power Supply Quantity and Rating (W)	2 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 17.0.8
Vendor	Oracle
Vendor URL	https://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 17.0.8
Available	Jul-2023
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: SVM Mode = Disabled SR-IOV Support = Disabled Engine Boost = Aggressive NUMA nodes per socket = NPS4 L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable TDP Control = Manual TDP = 400 PPT Control = Manual PPT = 400 Determinism Control = Manual Determinism Slider = Power ACPI SRAT L3 Cache as NUMA Domain = Enabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(12)
OS Image Description	os_1
Tuning	cpupower frequency-set -g performance tuned-adm profile throughput-performance ulimit -n 1024000 echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 40000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 900000000 > /proc/sys/kernel/sched_min_granularity_ns echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=20 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning	Used numactl to affinitize each Backend JVM to 8 Cores / 16 Threads numactl --physcpubind=0-7,96-103 --localalloc numactl --physcpubind=8-15,104-111 --localalloc numactl --physcpubind=16-23,112-119 --localalloc numactl --physcpubind=24-31,120-127 --localalloc numactl --physcpubind=32-39,128-135 --localalloc numactl --physcpubind=40-47,136-143 --localalloc numactl --physcpubind=48-55,144-151 --localalloc numactl --physcpubind=56-63,152-159 --localalloc numactl --physcpubind=64-71,160-167 --localalloc numactl --physcpubind=72-79,168-175 --localalloc numactl --physcpubind=80-87,176-183 --localalloc numactl --physcpubind=88-95,184-191 --localalloc
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: SVM Mode = Disabled SR-IOV Support = Disabled Engine Boost = Aggressive NUMA nodes per socket = NPS4 L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable TDP Control = Manual TDP = 400 PPT Control = Manual PPT = 400 Determinism Control = Manual Determinism Slider = Power ACPI SRAT L3 Cache as NUMA Domain = Enabled
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(12)
OS Image Description	os_2
Tuning	cpupower frequency-set -g performance tuned-adm profile throughput-performance ulimit -n 1024000 echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 40000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 900000000 > /proc/sys/kernel/sched_min_granularity_ns echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning	Used numactl to affinitize each TxInjector JVM to 8 Cores / 16 Threads numactl --physcpubind=0-7,192-199 --localalloc numactl --physcpubind=8-15,200-207 --localalloc numactl --physcpubind=16-23,208-215 --localalloc numactl --physcpubind=24-31,216-223 --localalloc numactl --physcpubind=32-39,224-231 --localalloc numactl --physcpubind=40-47,232-239 --localalloc numactl --physcpubind=48-55,240-247 --localalloc numactl --physcpubind=56-63,248-255 --localalloc numactl --physcpubind=64-71,256-263 --localalloc numactl --physcpubind=72-79,264-271 --localalloc numactl --physcpubind=80-87,272-279 --localalloc numactl --physcpubind=88-95,280-287 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	485333	491251	497170	503089	509007

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	131691	185452	233196	287056	334406	222613

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 5919	- / 5919	- / 5919	- / 5919	- / 5919	- / 5919
1000us	112455 / 118374	11837 / 17756	5919 / 11837	- / 5919	- / 5919	- / 5919
5000us	455739 / 461658	361040 / 366959	142049 / 147967	130211 / 136130	100618 / 106536	- / 5919
10000us	461658 / 467576	426146 / 432064	307772 / 313691	266341 / 272260	136130 / 118374	- / 5919
25000us	467576 / 473495	449820 / 455739	384715 / 390634	337365 / 343284	195317 / 165723	11837 / 5919
50000us	467576 / 473495	455739 / 461658	408390 / 414308	366959 / 372877	242666 / 218992	11837 / 5919
75000us	473495 / 479414	455739 / 461658	420227 / 426146	384715 / 390634	295934 / 278178	11837 / 5919
100000us	473495 / 479414	461658 / 467576	426146 / 432064	408390 / 414308	331447 / 337365	65106 / 17756
200000us	485333 / 491251	467576 / 473495	443902 / 449820	437983 / 443902	408390 / 414308	242666 / 41431
500000us	497170 / -	485333 / 491251	467576 / 473495	455739 / 461658	443902 / 449820	295934 / 41431
1000000us	497170 / -	497170 / -	485333 / 491251	467576 / 473495	461658 / 467576	390634 / 47350

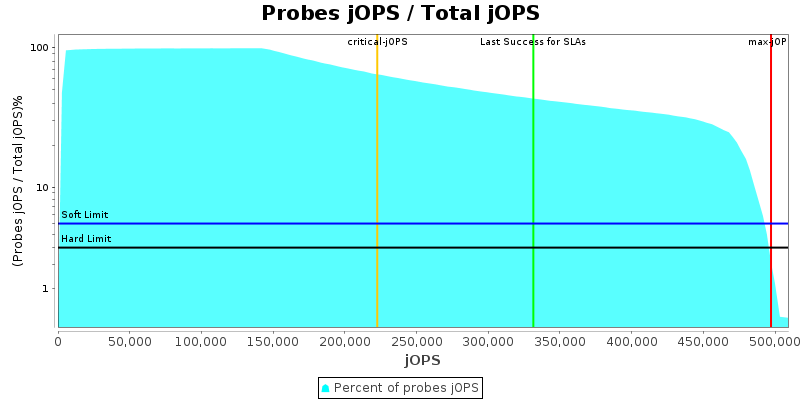

Number of probes

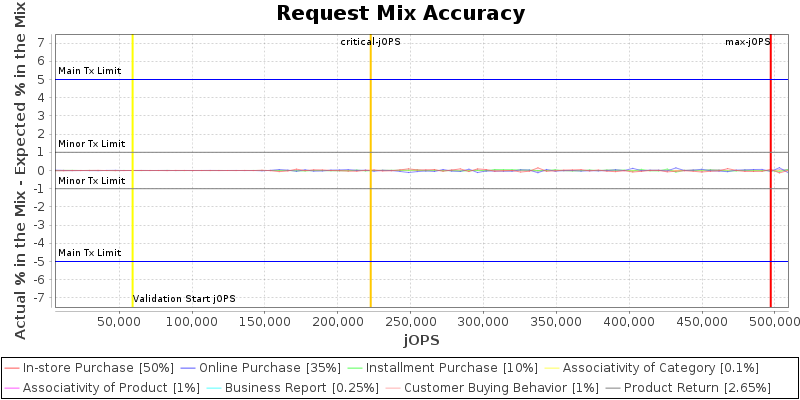

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

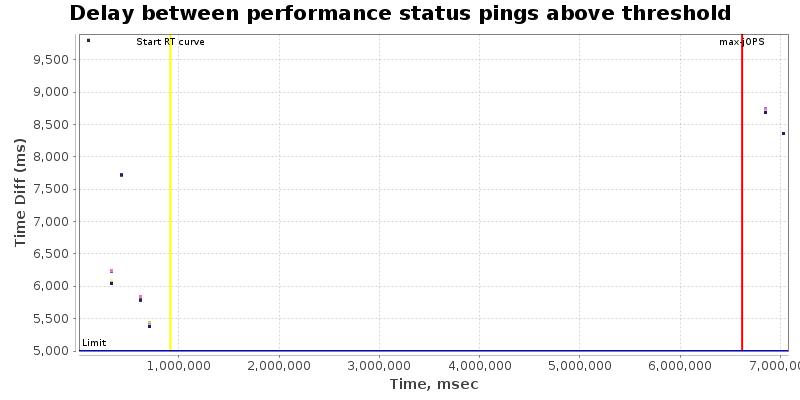

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150
specjbb.comm.connect.selector.runner.count	0	2	4	0	4	0	4	0	4	0	4	0	4	0	4	0	4	0	4	0	4	0	4	0	4	0
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	256	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150	200	150
specjbb.comm.connect.worker.pool.min	1	1	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16
specjbb.controller.host	localhost	192.168.0.23
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.customerDriver.threads	64	{probe=120, saturate=190, service=90}
specjbb.forkjoin.workers	384	{Tier1=170, Tier2=4, Tier3=20}
specjbb.group.count	1	12
specjbb.mapreducer.pool.size	384	6
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 591869 IR

High-bound (settled) is 525372 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

ASUSTeK Computer Inc. RS520A-E12-RS12U	497170 SPECjbb2015-Distributed max-jOPS 222613 SPECjbb2015-Distributed critical-jOPS
Tested by: ASUSTeK Computer Inc.	Test Sponsor: ASUSTeK Computer Inc.	Test location: Taipei, Taiwan	Test date: Sep 21, 2023
SPEC license #: 9016	Hardware Availability: Jun-2023	Software Availability: Jul-2023	Publication: Thu Nov 2 12:07:05 EDT 2023
